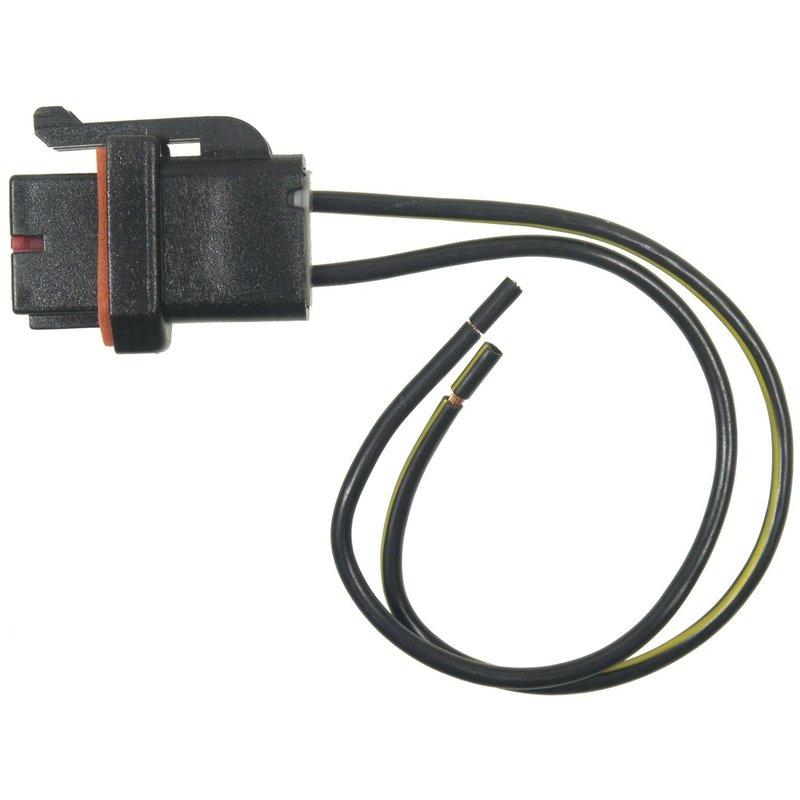

Standard Ignition S-942 A/C Compressor Clutch Relay Connector

Overview of Standard Ignition A/C Compressor Clutch Relay Connector

The Standard Ignition S-942 A/C compressor clutch relay connector is designed for reliable electrical connections in HVAC systems of select Ford, Lincoln, and Mercury vehicles. This male connector with a pigtail assembly ensures secure and efficient operation of the A/C compressor clutch in models like the Ford F-150, Explorer, and Lincoln Continental.

• Connector Gender: Male
• Includes 1 connector with pigtail assembly
• Harness length: 8 inches for flexible installation
• Terminal Gender: Female with 2 blade terminals
• Wire Quantity: 2 wires for proper electrical flow

Detailed Product Description

The Standard Ignition part number S-942 features a durable male connector designed specifically for A/C compressor clutch relay applications. The included pigtail assembly simplifies replacement by providing an 8-inch harness length, allowing for easier routing and connection within the vehicle’s HVAC electrical system. Equipped with two female blade terminals, this connector ensures a secure and corrosion-resistant connection to the relay, maintaining consistent electrical performance. Compatible with a wide range of Ford, Lincoln, and Mercury vehicles, including the Ford Bronco, Lincoln Mark LT, and Mercury Mountaineer, this connector supports proper A/C compressor clutch operation and helps maintain the vehicle’s climate control efficiency.

Compatible Vehicles and Applications

This A/C compressor clutch relay connector is compatible with various Ford, Lincoln, and Mercury models such as:

• Ford F-150, F-250, F-350, and Expedition
• Lincoln Continental, Mark VII, and Navigator
• Mercury Cougar, Mountaineer, and Grand Marquis
• Other models including Aerostar, Explorer, Taurus, and Town Car

Common Issues Addressed by This Connector

• Intermittent or failed A/C compressor clutch engagement
• Damaged or corroded relay connector terminals
• Electrical shorts or open circuits in the A/C clutch wiring
• Loose or broken pigtail harness connections
• Replacement of worn or aged connectors to restore HVAC function

Installation Notes and Tips

• Ensure the vehicle’s battery is disconnected before installation
• Verify connector orientation and terminal alignment for a secure fit
• Use dielectric grease on terminals to prevent corrosion
• Route the 8-inch harness carefully to avoid pinching or abrasion
• Test A/C compressor clutch operation after installation to confirm proper function

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The S-942 connector undergoes quality control testing to ensure reliable electrical performance and durability. While specific warranty details may vary, Standard Ignition typically offers coverage against defects in material and workmanship to support long-term vehicle operation.
