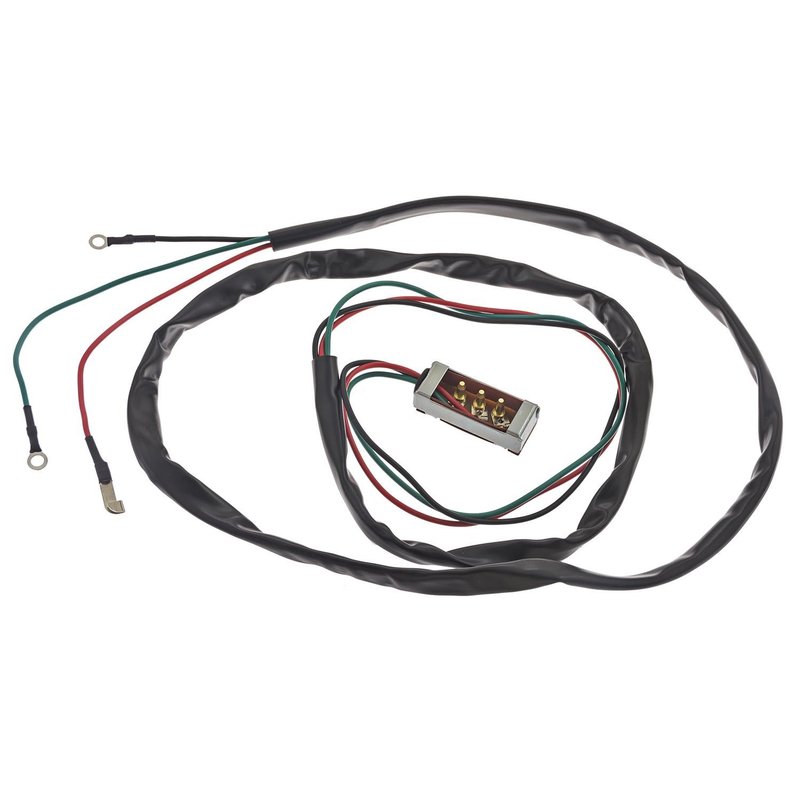

Standard Ignition S-994 Axle Shift Control Switch Connector

Reliable Axle Shift Control Switch Connector for Automotive Applications

The Standard Ignition S-994 Axle Shift Control Switch Connector is designed to provide a secure and efficient electrical connection for driveline and axle systems. This connector supports both male and female genders, ensuring compatibility with various vehicle wiring configurations.

• Connector Gender: Male and Female for versatile connection options
• Connector Quantity: 1 connector included
• Terminal Gender: Male terminals for reliable contact
• Terminal Quantity: 3 terminals to support multiple wire connections
• Terminal Type: Eye ring terminals for secure fastening
• Wire Quantity: 3 wires for comprehensive signal transmission

Detailed Product Description

The Standard Ignition S-994 is an axle shift control switch connector engineered to maintain consistent electrical connectivity in driveline and axle systems. Featuring both male and female connector genders, this part accommodates a range of wiring setups commonly found in vehicles such as Ford F-150, Chevrolet Silverado, and Dodge Ram models. The connector includes three male eye ring terminals, which provide a secure and durable connection point for wiring harnesses. With three wires integrated, this connector supports multiple signal pathways necessary for proper axle shift control switch operation.

Common Applications and Issues Addressed

• Restores faulty or damaged axle shift control switch connections
• Eliminates intermittent electrical issues in driveline control systems
• Replaces corroded or worn connectors affecting axle shift performance
• Supports troubleshooting of electrical faults in axle shift mechanisms
• Ensures proper signal transmission for axle engagement and disengagement

Installation Notes and Tips

When installing the Standard Ignition S-994 connector, ensure that the male and female connectors are properly aligned to avoid damage to terminals. Use appropriate tools to secure the eye ring terminals firmly to the vehicle’s wiring points. Verify that all three wires are correctly connected according to the vehicle’s wiring diagram to maintain proper axle shift control functionality. It is recommended to inspect the connector for corrosion or wear before installation to ensure optimal performance.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing reliable performance in demanding automotive environments. The S-994 connector undergoes rigorous quality control to ensure durability and electrical integrity. Please refer to Standard Ignition’s warranty policy for specific coverage details related to this axle shift control switch connector.
