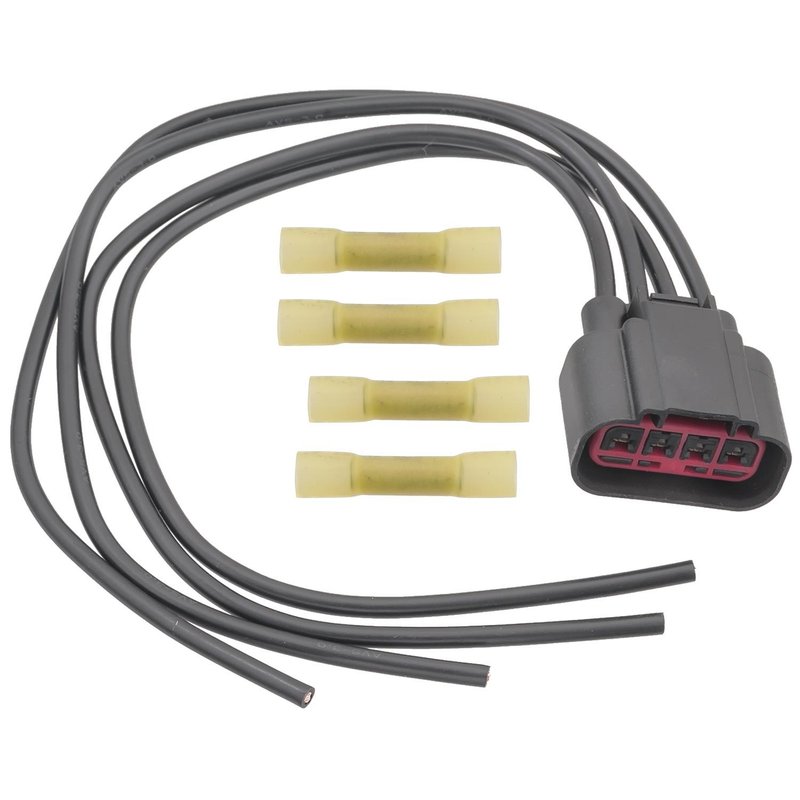

Standard Ignition S1763 HVAC Blower Motor Resistor Connector - Front or Rear

HVAC Blower Motor Resistor Connector for Ford, Nissan, and Lincoln

Restore a secure electrical connection at the blower motor resistor with the Standard Ignition S1763 HVAC blower motor resistor connector. This direct replacement connector is built for repair work where the original plug is heat-damaged, brittle, or no longer locking properly.

Compatible with a wide range of Ford F-150, Explorer, Expedition, Mustang, and Taurus applications, as well as Nissan Frontier, Titan, Armada, and Xterra models, the S1763 helps you repair the connector without replacing the full harness.

Key Features

• Direct replacement HVAC blower motor resistor connector
• Male connector with round housing design
• 4 blade terminals with female terminal ends
• Protective tubing included for added wire protection
• High-grade terminal materials including copper alloy, brass, and phosphor bronze
• Polyamide resin housing for durability in harsh environments
• 100% tested for mechanical and electrical fit, form, and function

Detailed Description

Standard Ignition S1763 is a replacement electrical connector for HVAC blower motor resistor circuits. It is engineered to replace only the damaged connector, helping reduce repair time and cost compared with replacing the entire harness. The connector uses durable materials selected for stable electrical performance and long service life, and the included protective tubing helps support the repair in high-heat areas.

This part cross-references Dorman - TECHoice 645-403 for the same application. It is a strong match for repair jobs on Ford F-250 Super Duty, Ford F-350 Super Duty, Lincoln Navigator, and Nissan Frontier HVAC systems where the original connector has failed.

What It Helps Fix

• Burned or melted blower motor resistor connector terminals
• Loose or intermittent HVAC blower fan operation
• Broken locking tabs or damaged connector housings
• Corrosion at the resistor plug connection
• Electrical resistance caused by worn or overheated terminals

Installation Notes and Tips

• Verify connector shape, terminal count, and wire layout before installation.
• Check vehicle-specific HVAC controls and notes, including automatic temperature control or climate control requirements where listed.
• Some applications require front or rear position matching; confirm the exact location on the vehicle.
• Inspect the blower motor resistor and surrounding wiring for heat damage before installing the new connector.
• Use proper splicing and sealing practices to maintain a reliable electrical repair.

Quality Assurance

Standard Ignition manufactures this connector with high-grade terminal materials and a polyamide resin housing, then tests each connector for proper mechanical and electrical fit, form, and function. The result is a direct replacement part built for dependable service in demanding HVAC electrical repairs.
