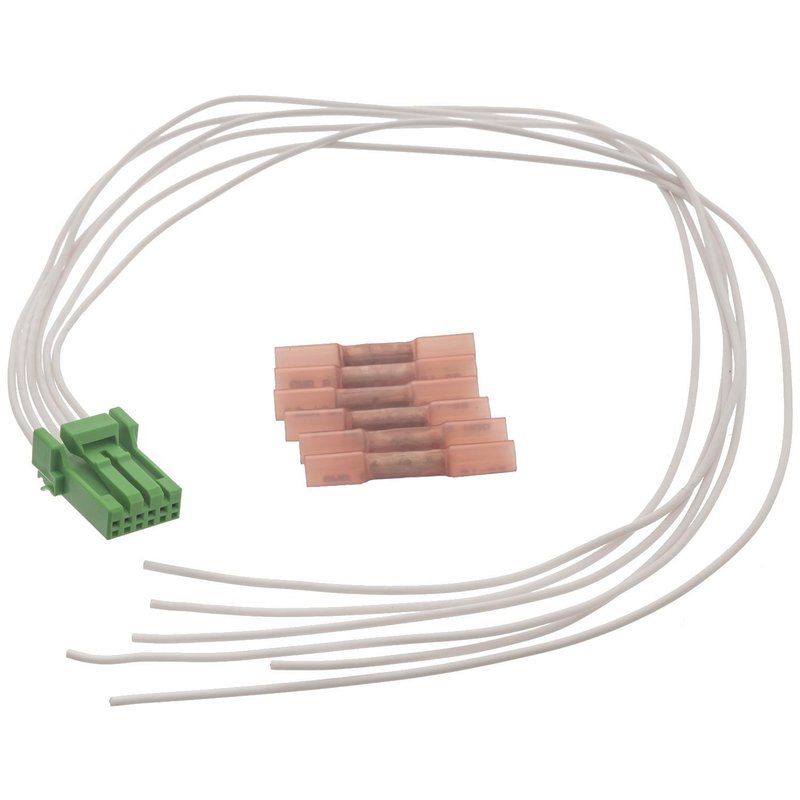

Standard Ignition S1769 Ignition Switch Connector

Reliable Ignition Switch Connector for Select GM Vehicles

The Standard Ignition S1769 ignition switch connector is designed to provide a secure and durable electrical connection for ignition systems in various Chevrolet, GMC, Hummer, Pontiac, and Saturn models. Engineered with precise specifications, this connector ensures consistent performance and compatibility with your vehicle's ignition wiring harness.

• Connector Gender: Male
• Connector Quantity: 1
• Harness Length: 15 inches
• Terminal Gender: Female
• Terminal Quantity: 6
• Terminal Type: Pin socket
• Wire Quantity: 6

Technical Details and Compatibility

The S1769 ignition switch connector features a 15-inch harness length, providing ample reach for installation within the ignition system. It includes six female terminals with pin socket types, designed to mate securely with male connectors. The connector itself is male, ensuring proper fitment and electrical contact. This part is compatible with a range of GM vehicles, including Chevrolet models such as the Cobalt, Malibu, and HHR; GMC models like Canyon and Colorado; Hummer H3; Pontiac models including G4, G5, G6, Pursuit, Sky, and Solstice; as well as the Saturn Ion and Aura. The six-wire configuration supports the necessary ignition circuits for these vehicles.

Applications and Common Issues Addressed

• Replacement for damaged or corroded ignition switch connectors
• Restores reliable electrical connection in ignition wiring harness
• Solves intermittent ignition failures caused by poor terminal contact
• Prevents ignition switch malfunctions due to worn connectors
• Supports proper operation of ignition circuits in compatible GM vehicles

Installation Notes and Tips

When installing the Standard Ignition S1769 connector, ensure the ignition is turned off and the battery is disconnected to prevent electrical shorts. Verify the connector orientation matches the original part, noting the male connector gender and female terminal configuration. Use appropriate tools to secure terminals and avoid damaging the pin sockets. The 15-inch harness length allows for flexible routing within the engine compartment. After installation, test the ignition system for proper function before completing the job.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable fit and function. The S1769 ignition switch connector undergoes quality control testing to maintain consistent electrical performance and durability. While specific warranty details may vary, Standard Ignition typically offers coverage against manufacturing defects to provide confidence in the product's longevity and reliability.
