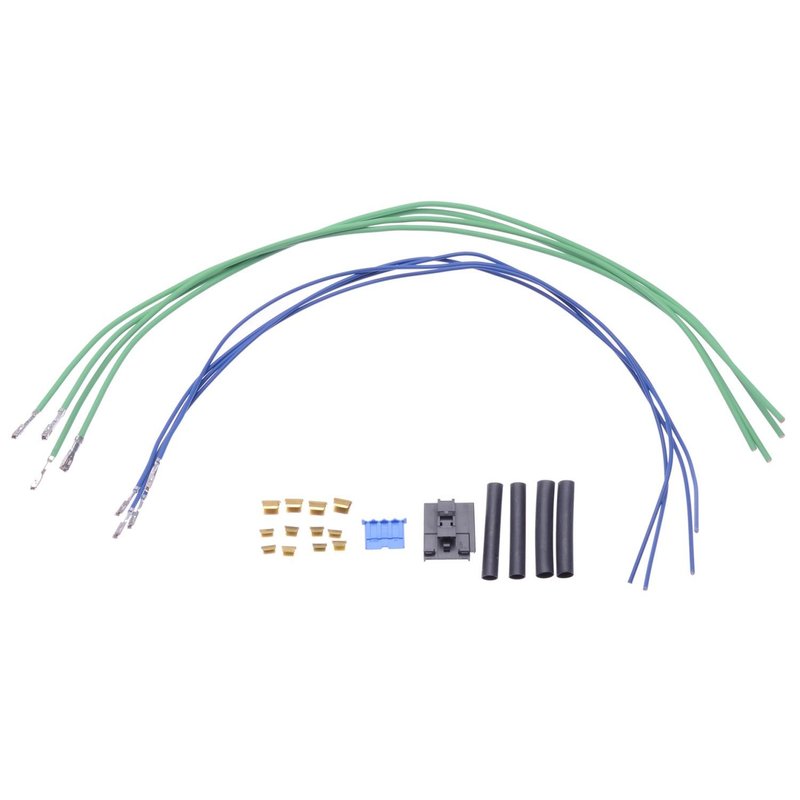

Standard Ignition S1900 HVAC Blower Motor Resistor Connector

Overview of Standard Ignition HVAC Blower Motor Resistor Connector S1900

The Standard Ignition HVAC Blower Motor Resistor Connector S1900 is designed to provide reliable electrical connectivity for HVAC blower motor resistor systems. This connector is compatible with select Dodge and Jeep models, ensuring proper fit and function for your vehicle's heating and cooling system.

• Connector Gender: Male
• Connector Quantity: 1
• Terminal Gender: Female
• Terminal Quantity: 4
• Terminal Type: Blade terminals
• Wire Quantity: 8

Detailed Product Description

The S1900 blower motor resistor connector from Standard Ignition features a male connector with one connection point and four female blade terminals. It includes eight wires to facilitate secure and efficient electrical transmission within the HVAC system. The blade terminal design ensures a stable and corrosion-resistant connection, which is critical for maintaining consistent blower motor performance. This connector is engineered to meet OEM specifications for Dodge B1500, B2500, B3500, Ram 1500 Van, Ram 2500 Van, Ram 3500 Van, Jeep Cherokee, TJ, and Wrangler models.

Compatible Vehicles and Applications

This HVAC blower motor resistor connector is compatible with the following vehicles:

• Dodge B1500, B2500, B3500
• Dodge Ram 1500 Van, Ram 2500 Van, Ram 3500 Van
• Jeep Cherokee
• Jeep TJ
• Jeep Wrangler

Common Issues Addressed by This Connector

• Intermittent blower motor operation due to faulty connections
• HVAC blower speeds not functioning correctly
• Electrical resistance causing blower motor failure
• Corroded or damaged connector terminals
• Loose wiring connections affecting HVAC performance

Installation Notes and Tips

When installing the Standard Ignition S1900 connector, ensure the vehicle's battery is disconnected to prevent electrical shorts. Verify that the connector terminals are clean and free of corrosion before installation. Properly align the male connector with the corresponding female terminals to avoid damage. Use dielectric grease on terminals to enhance conductivity and prevent moisture intrusion. Confirm secure wire routing to prevent pinching or abrasion during operation.

Quality Assurance and Warranty

Standard Ignition manufactures the S1900 connector to meet or exceed OEM standards for durability and electrical performance. This part undergoes rigorous quality control testing to ensure reliable operation in demanding automotive environments. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in materials and workmanship.
