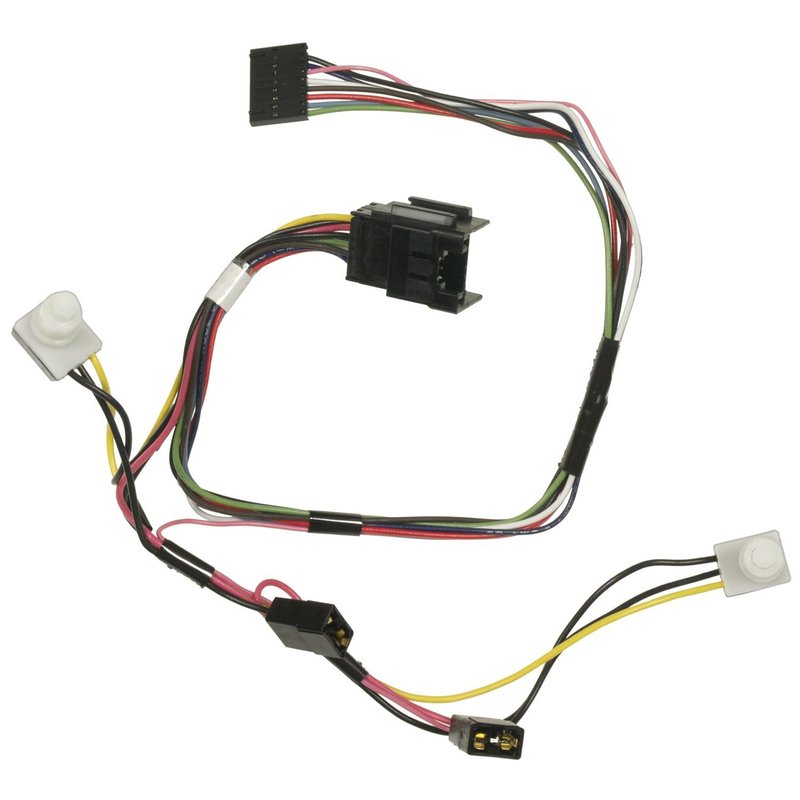

Standard Ignition S1951 Overhead Console Wiring Harness Connector

Overview of Standard Ignition Overhead Console Wiring Harness Connector

The Standard Ignition S1951 overhead console wiring harness connector is designed for reliable electrical connections in Dodge Ram trucks. This connector supports both male and female terminals, ensuring compatibility with various wiring configurations in Ram 1500, Ram 2500, and Ram 3500 models.

• Connector Gender: Female and male
• Connector Quantity: 4 connectors included
• Terminal Gender: Male and female terminals
• Terminal Type: Blade and pin terminals

Technical Details and Compatibility

The S1951 wiring harness connector from Standard Ignition is engineered to meet the electrical connection needs of Dodge Ram trucks, specifically the Ram 1500, Ram 2500, and Ram 3500. Featuring a combination of male and female connectors and terminals, this part accommodates blade and pin terminal types, providing versatility for overhead console wiring applications. The inclusion of four connectors allows for multiple connection points, facilitating secure and stable electrical pathways within the vehicle’s overhead console system.

Applications and Problem Solving

This overhead console wiring harness connector is used primarily to maintain or restore electrical connectivity in the overhead console area of Dodge Ram trucks. It addresses several common issues, including:

• Intermittent or faulty overhead console lighting
• Loose or damaged wiring connections in the console
• Replacement of worn or corroded connectors
• Upgrading or repairing overhead console electrical components
• Ensuring proper fitment and electrical continuity in Ram 1500, 2500, and 3500 models

Installation Notes and Tips

When installing the Standard Ignition S1951 connector, ensure the correct orientation of male and female terminals to avoid connection errors. Verify that blade and pin terminals are properly seated to maintain electrical integrity. It is recommended to disconnect the vehicle battery before installation to prevent electrical shorts. Use appropriate tools to secure connectors without damaging terminal pins or blades.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet OEM specifications for fit and function. The S1951 overhead console wiring harness connector undergoes quality control testing to ensure durability and reliable electrical performance. While specific warranty details may vary, Standard Ignition typically offers coverage against manufacturing defects to provide confidence in product reliability.
