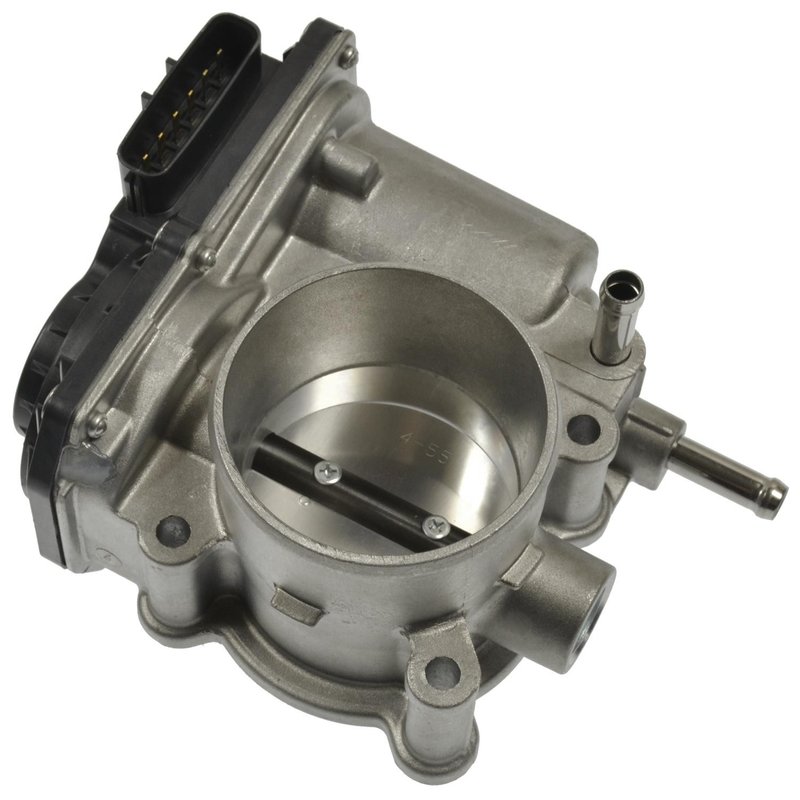

Standard Ignition S20139 Fuel Injection Throttle Body

Electronic Throttle Body for Toyota and Scion

Standard Ignition S20139 is an electronic fuel injection throttle body built for precise airflow control in supported Toyota and Scion applications. It features a female connector, a single connector interface, male blade terminals, and 6 terminal blades for a direct-style electrical connection.

Fits 2011-2018 Toyota Corolla, N/A; Fits 2017-2018 Toyota Corolla iM, N/A; Fits 2016 Scion iM, N/A; Fits 2011-2013 Toyota Matrix, N/A. Fits 2019 Toyota Corolla, N/A, manufactured in the United States for ABS Wheel Speed Sensor.

Key Features

• Electronic throttle body for fuel injection system service
• Female connector with 1 connector interface
• Male blade terminals with 6 terminal positions
• Direct replacement style for supported Toyota Corolla, Corolla iM, Scion iM, and Matrix applications
• Standard Ignition S20139 part number for catalog matching and service lookup

Detailed Description

Standard Ignition S20139 is an electronic throttle body used in air and fuel delivery systems to regulate intake airflow based on electronic throttle control signals. This unit is listed for Toyota Corolla, Toyota Corolla iM, Scion iM, and Toyota Matrix applications across the model years shown, making it a relevant choice when replacing a worn or malfunctioning throttle body on these vehicles. The S20139 reference also helps with cross-checking service parts during diagnosis and ordering.

This part cross-references Cardone Reman 67-8014 and Dorman - OE Solutions 977-332 for the same application.

Common Issues This Part May Resolve

• Throttle response problems caused by internal throttle body wear
• Idle instability related to airflow control faults
• Electronic throttle control warning conditions tied to throttle body failure
• Driveability concerns from carbon buildup or sticking throttle operation
• Replacement needs after electrical connector or terminal-related throttle body damage

Installation Notes and Tips

Verify connector style, terminal layout, and vehicle application before installation. A factory relearn procedure is required on 2017-2018 Toyota Corolla iM and 2016 Scion iM applications. After installation, follow the vehicle-specific throttle relearn and idle calibration steps to complete setup.

Quality Assurance

Standard Ignition supplies service parts for ignition and engine management applications, and this throttle body is cataloged for the listed Toyota and Scion fitments. Confirm the part number S20139 against the vehicle identification and service information before ordering.
