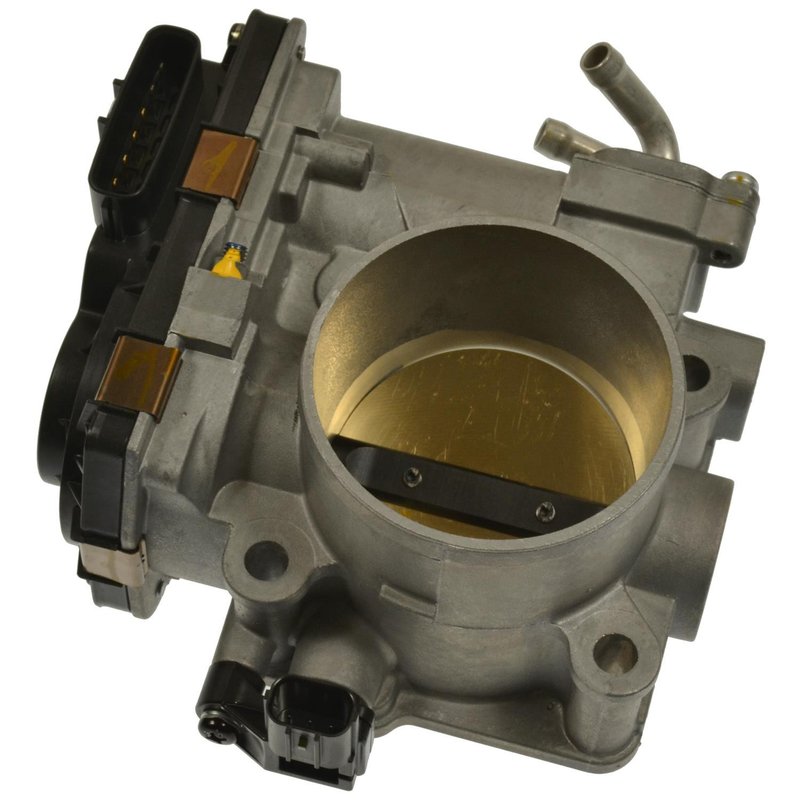

Standard Ignition S20235 Fuel Injection Throttle Body

Electronic Throttle Body for Honda and Acura

Standard Ignition S20235 is an electronic fuel injection throttle body built for direct replacement on select Honda and Acura applications. It features a female connector, male blade terminals, and a 6 + 4 terminal layout for the specified electronic throttle control setup.

Compatible With 2003-2008 Honda Accord, 2005-2006 Honda Odyssey, 2005-2008 Honda Pilot, 2006-2008 Honda Ridgeline, 2004-2008 Acura TL, and 2005-2008 Acura RL. This Standard Ignition throttle body is a fitment-based solution for drivability concerns tied to throttle control and air metering.

Key Features

• Electronic throttle body for fuel injection system service
• Female connector with male blade terminals
• 6 + 4 terminal configuration
• Direct-fit replacement for select Honda and Acura models
• Standard Ignition S20235 part number for catalog matching

Detailed Description

The Standard Ignition S20235 throttle body is used in electronic throttle control systems to regulate intake airflow based on accelerator input and engine management commands. It is listed for 2003-2007 Honda Accord, 2005-2006 Honda Odyssey, 2005-2008 Honda Pilot, 2006-2008 Honda Ridgeline, 2004-2008 Acura TL, and 2005-2008 Acura RL. If you are searching for a Honda Accord throttle body, Acura TL throttle body, or Honda Pilot electronic throttle body, this part number provides a direct catalog match for those applications.

This part cross-references Cardone Reman 67-2001 for the same application.

Common Issues This Part May Address

• Throttle response problems caused by a worn electronic throttle body
• Idle instability related to airflow control at the throttle plate
• Acceleration hesitation tied to throttle position management
• Driveability faults associated with throttle body electrical connection wear
• Air metering irregularities in the intake system

Installation Notes and Tips

Verify connector style, terminal layout, and vehicle application before installation. Confirm the throttle body matches the original electronic configuration on your Honda or Acura model, and inspect the intake tract, gasket surface, and electrical connector condition during service. After installation, follow the vehicle manufacturer’s relearn or calibration procedure if required by the engine control system.

Quality Assurance

Standard Ignition supplies replacement ignition and engine management components for service applications. Part number S20235 is cataloged for the listed Honda and Acura fitments and should be matched to the original unit by connector and terminal configuration before installation.
