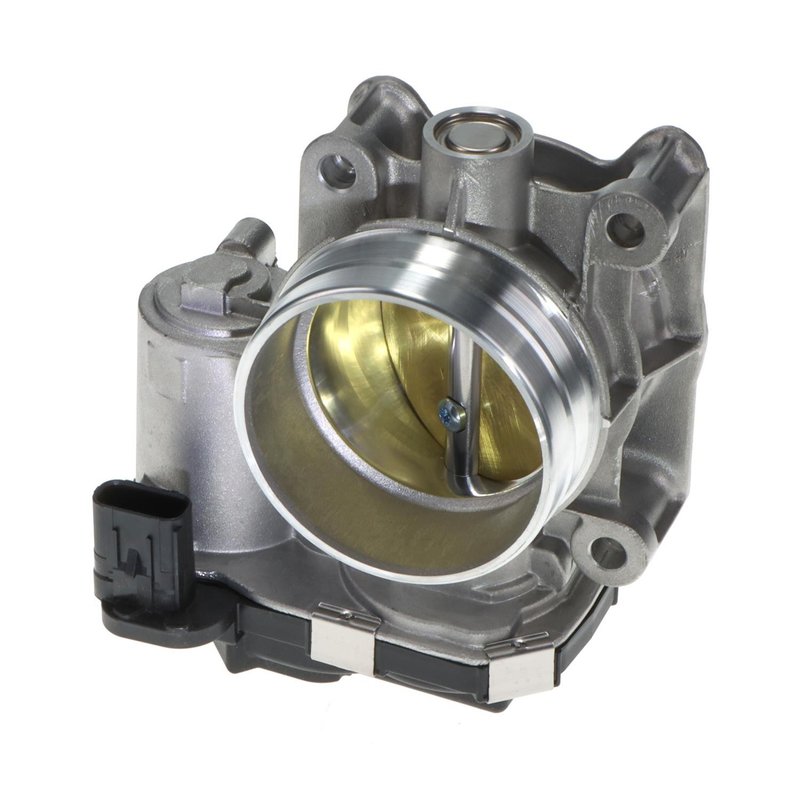

Standard Ignition S20500 Fuel Injection Throttle Body

Fuel Injection Throttle Body for GM Applications

Standard Ignition S20500 is a fuel injection throttle body assembly for select Chevrolet, Buick, GMC, and Cadillac vehicles. It includes the electronic throttle body gasket and throttle position sensor, and it is built for applications that require a factory relearn procedure after installation.

Key Features

• Electronic throttle body assembly with gasket included
• Throttle position sensor included
• Female connector with 6 male blade terminals
• Single connector design for direct replacement service
• No fuel injectors, mounting hardware, or throttle body spacer included
• Relearn required for installation
• Standard Ignition S20500 replacement part

Detailed Description

This fuel injection throttle body is a direct-fit service part for GM vehicles that use electronic throttle control. Standard Ignition S20500 is listed for applications including the Chevrolet Camaro, Malibu, Equinox, and Traverse, along with Buick Envision, Regal Sportback, Regal TourX, and Regal, plus Cadillac ATS, CTS, and CT6. It also fits GMC Terrain models with the factory relearn procedure required after installation. This part cross-references GM 12627067 for the same application.

Built as an electronic throttle body assembly, this unit includes the throttle position sensor and gasket to support a complete replacement of the original throttle body. The connector layout uses one female connector with six male blade terminals, matching the electrical interface used on the listed vehicles. Standard Ignition S20500 is a practical choice when servicing drivability concerns tied to throttle control on late-model GM platforms.

What It Is Used For

• Restoring throttle response on vehicles with electronic throttle control issues
• Replacing a worn or contaminated throttle body assembly
• Addressing idle instability related to throttle plate operation
• Correcting throttle position sensor faults tied to the throttle body assembly
• Servicing GM vehicles that require a factory relearn procedure after replacement

Installation Notes and Tips

• Fits 2016-2023 Chevrolet Camaro, N/A
• Fits 2013-2022 Chevrolet Malibu, N/A
• Fits 2016-2020 Buick Envision, N/A
• Fits 2018-2020 Buick Regal Sportback, N/A
• Fits 2018-2020 Buick Regal TourX, N/A
• Fits 2018-2020 Chevrolet Equinox, N/A
• Fits 2018-2020 GMC Terrain, N/A
• Fits 2013-2019 Cadillac ATS, N/A
• Fits 2014-2019 Cadillac CTS, N/A
• Fits 2018-2019 Chevrolet Traverse, N/A
• Fits 2016-2018 Cadillac CT6, N/A
• Fits 2014-2017 Buick Regal, N/A
• Perform the factory relearn procedure after installation
• Verify connector style and terminal count before installation

Quality Assurance

Standard Ignition supplies replacement engine management components for service applications that require OE-style fit and function. S20500 is built for the listed GM platforms and includes the gasket needed for installation.
