OE Quality
60-Day Returns

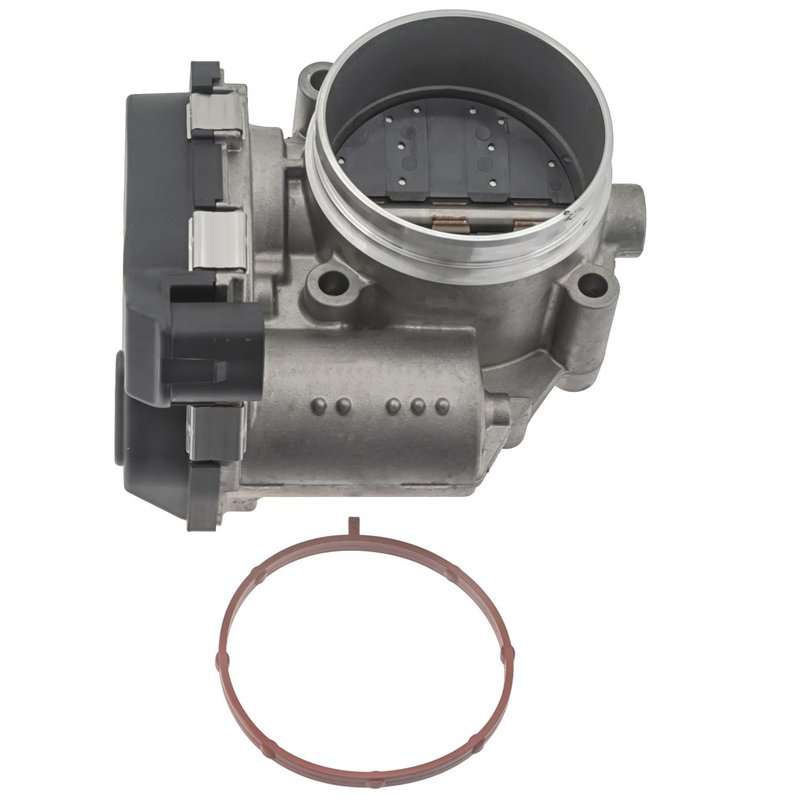

Standard Ignition S20506 Fuel Injection Throttle Body
| Brand | Standard Ignition S20506 |
|---|---|
| Mounting Hardware Included | No |
| Gasket Or Seal Included | Yes |
| Fuel Injectors Included | No |
| Idle Air Control Motor Included | No |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Contents | Electronic throttle body, electronic throttle body seal |
| Hardware Included | Seals |
| Notes | Relearn required for installation |
| Terminal Gender | Male |
| Terminal Quantity | 6 |
| Terminal Type | Blade |
| Throttle Body Spacer Included | No |
| Throttle Position Sensor Included | Yes |
| Fits | Audi and Volkswagen · 69 vehicles |
Electronic throttle body. Includes a throttle position sensor for precise throttle control.
Seal included. Comes with an electronic throttle body seal for a cleaner install.
Relearn required. Installation requires a throttle relearn procedure.
Cross-references Standard Ignition S20506, 06E133062C and ETB836 for the same application. See all 4.
$379.42Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Fuel Injection Throttle Body options
Electronic Throttle Body for Audi and Volkswagen
Standard Ignition S20506 is an electronic fuel injection throttle body assembly for select Audi and Volkswagen applications. It includes the electronic throttle body seal and throttle position sensor, and it is built for vehicles that require a factory relearn procedure after installation.
Key Features
- Electronic throttle body assembly for fuel injection systems
- Includes throttle position sensor and throttle body seal
- Female connector with 1 connector and 6 male blade terminals
- No fuel injectors, idle air control motor, or throttle body spacer included
- Relearn required for installation
- Cross-references OE and aftermarket numbers including 06E133062C and ETB836
Detailed Description
Standard Ignition S20506 is a replacement fuel injection throttle body for Audi Q7, Audi A6 Quattro, Audi A7 Quattro, Audi A8 Quattro, Audi Q5, Audi S5, Audi SQ5, Audi S4, Audi A6, Audi A5 Quattro, Audi A4 Quattro, and Volkswagen Touareg applications listed below. This electronic throttle body is specified with a female connector, 6 blade terminals, and an integrated throttle position sensor for direct replacement of the original unit on the covered vehicles. The included seal supports proper sealing at the throttle body mounting surface. This part cross-references OE and aftermarket numbers such as 06E133062C and ETB836 for the same application. Standard Ignition S20506 is a practical choice when servicing drivability concerns on Audi Q7 and Audi A6 Quattro models, as well as other listed Audi and Volkswagen vehicles.
What It Is Used For
- Throttle response problems caused by a worn electronic throttle body
- Idle instability related to throttle plate control issues
- Electronic throttle position sensor faults
- Airflow control concerns in fuel injection systems
- Check engine light conditions tied to throttle body performance
Installation Notes and Tips
- Factory relearn procedure required after installation
- Verify connector style, terminal count, and seal condition before installation
- Follow OEM service information for throttle body adaptation and calibration
- Inspect the intake sealing surface before fitting the included seal
Quality Assurance
Standard Ignition supplies replacement ignition and engine management components for service applications that require OE-style fit and function. S20506 is built for the listed Audi and Volkswagen fitments and follows the specified electronic throttle body configuration.
Compatible Vehicles
- Fits 2017-2019 Audi Q7, N/A, Factory Relearn Procedure Required
- Fits 2011-2015 Audi Q7, N/A, Factory Relearn Procedure Required
- Fits 2010-2018 Audi A6 Quattro, N/A, Factory Relearn Procedure Required
- Fits 2012-2018 Audi A7 Quattro, N/A, Factory Relearn Procedure Required
- Fits 2013-2018 Audi A8 Quattro, N/A, Factory Relearn Procedure Required
- Fits 2009-2017 Audi Q5, N/A, Factory Relearn Procedure Required
- Fits 2010-2017 Audi S5, N/A, Factory Relearn Procedure Required
- Fits 2014-2017 Audi SQ5, N/A, Factory Relearn Procedure Required
- Fits 2010-2016 Audi S4, N/A, Factory Relearn Procedure Required
- Fits 2011-2015 Volkswagen Touareg, N/A, Factory Relearn Procedure Required
- Fits 2010-2011 Audi A6, N/A, Factory Relearn Procedure Required
- Fits 2008-2010 Audi A5 Quattro, N/A, Factory Relearn Procedure Required
- Fits 2009 Audi A4 Quattro, N/A, Factory Relearn Procedure Required
This part fits 69 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Notes |
|---|---|---|---|---|---|---|
| 2019 | Audi | Q7 | — | — | — | Factory Relearn Procedure Required |
| 2018 | Audi | A6 Quattro | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2018 | Audi | A7 Quattro | — | — | — | Factory Relearn Procedure Required |
| 2018 | Audi | A8 Quattro | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2018 | Audi | Q7 | — | — | — | Factory Relearn Procedure Required |
| 2017 | Audi | A6 Quattro | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2017 | Audi | A7 Quattro | — | — | — | Factory Relearn Procedure Required |
| 2017 | Audi | A8 Quattro | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2017 | Audi | Q5 | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2017 | Audi | Q7 | — | — | — | Factory Relearn Procedure Required |
| 2017 | Audi | S5 | — | — | — | Factory Relearn Procedure Required |
| 2017 | Audi | SQ5 | — | — | — | Factory Relearn Procedure Required |
| 2016 | Audi | A6 Quattro | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2016 | Audi | A7 Quattro | — | — | — | Factory Relearn Procedure Required |
| 2016 | Audi | A8 Quattro | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2016 | Audi | Q5 | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2016 | Audi | S4 | — | — | — | Factory Relearn Procedure Required |
| 2016 | Audi | S5 | — | — | — | Factory Relearn Procedure Required |
| 2016 | Audi | SQ5 | — | — | — | Factory Relearn Procedure Required |
| 2015 | Audi | A6 Quattro | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2015 | Audi | A7 Quattro | — | — | — | Factory Relearn Procedure Required |
| 2015 | Audi | A8 Quattro | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2015 | Audi | Q5 | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2015 | Audi | Q7 | 3.0L | V6 | GAS | Factory Relearn Procedure Required |
| 2015 | Audi | S4 | — | — | — | Factory Relearn Procedure Required |
| 2015 | Audi | S5 | — | — | — | Factory Relearn Procedure Required |
| 2015 | Audi | SQ5 | — | — | — | Factory Relearn Procedure Required |
| 2015 | Volkswagen | Touareg | — | — | — | Factory Relearn Procedure Required |
| 2014 | Audi | A6 Quattro | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2014 | Audi | A7 Quattro | — | — | — | Factory Relearn Procedure Required |
| 2014 | Audi | A8 Quattro | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2014 | Audi | Q5 | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2014 | Audi | Q7 | 3.0L | V6 | GAS | Factory Relearn Procedure Required |
| 2014 | Audi | S4 | — | — | — | Factory Relearn Procedure Required |
| 2014 | Audi | S5 | — | — | — | Factory Relearn Procedure Required |
| 2014 | Audi | SQ5 | — | — | — | Factory Relearn Procedure Required |
| 2014 | Volkswagen | Touareg | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2013 | Audi | A6 Quattro | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2013 | Audi | A7 Quattro | — | — | — | Factory Relearn Procedure Required |
| 2013 | Audi | A8 Quattro | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2013 | Audi | Q5 | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2013 | Audi | Q7 | 3.0L | V6 | GAS | Factory Relearn Procedure Required |
| 2013 | Audi | S4 | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2013 | Audi | S5 | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2013 | Volkswagen | Touareg | 3.0L | V6 | FULL HYBRID EV-GAS (FHEV) | Factory Relearn Procedure Required |
| 2012 | Audi | A6 Quattro | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2012 | Audi | A7 Quattro | — | — | — | Factory Relearn Procedure Required |
| 2012 | Audi | Q5 | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2012 | Audi | Q7 | 3.0L | V6 | GAS | Factory Relearn Procedure Required |
| 2012 | Audi | S4 | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2012 | Audi | S5 | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2012 | Volkswagen | Touareg | 3.0L | V6 | FULL HYBRID EV-GAS (FHEV) | Factory Relearn Procedure Required |
| 2011 | Audi | A6 | — | — | — | Factory Relearn Procedure Required |
| 2011 | Audi | A6 Quattro | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2011 | Audi | Q5 | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2011 | Audi | Q7 | 3.0L | V6 | GAS | Factory Relearn Procedure Required |
| 2011 | Audi | S4 | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2011 | Audi | S5 | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2011 | Volkswagen | Touareg | — | — | — | Factory Relearn Procedure Required |
| 2010 | Audi | A5 Quattro | 3.2L | V6 | — | Factory Relearn Procedure Required |
| 2010 | Audi | A6 | — | — | — | Factory Relearn Procedure Required |
| 2010 | Audi | A6 Quattro | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2010 | Audi | Q5 | — | — | — | Factory Relearn Procedure Required |
| 2010 | Audi | S4 | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2010 | Audi | S5 | 3.0L | V6 | — | Factory Relearn Procedure Required |
| 2009 | Audi | A4 Quattro | 3.2L | V6 | — | Factory Relearn Procedure Required |
| 2009 | Audi | A5 Quattro | — | — | — | Factory Relearn Procedure Required |
| 2009 | Audi | Q5 | — | — | — | Factory Relearn Procedure Required |
| 2008 | Audi | A5 Quattro | 3.2L | V6 | — | Factory Relearn Procedure Required |
| No rows match your filter. | ||||||
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
