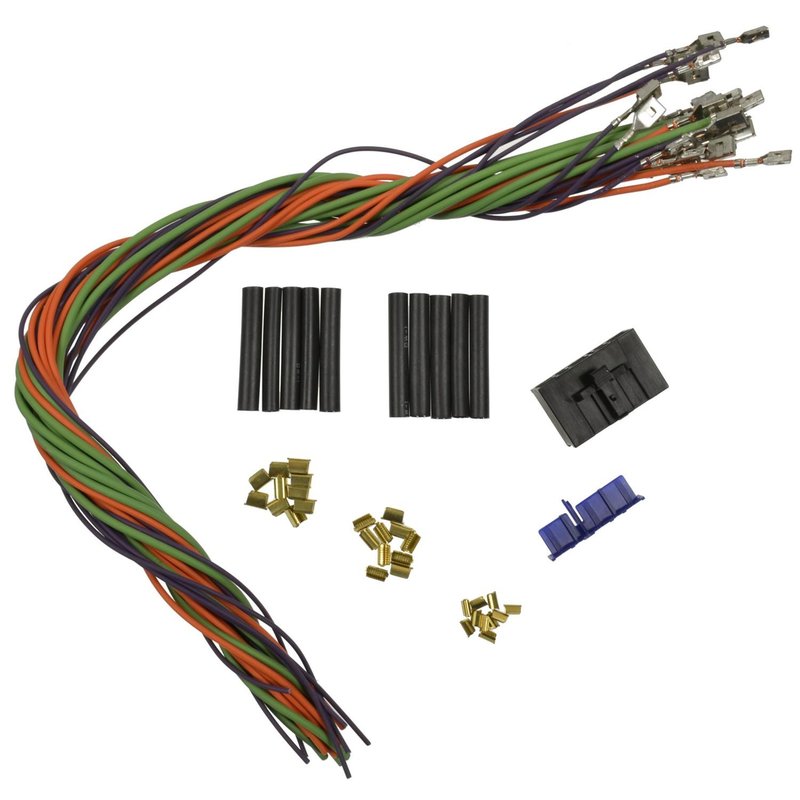

Standard Ignition S2333 HVAC Blower Motor Resistor Connector - Front

HVAC Blower Motor Resistor Connector Overview

Standard Ignition S2333 is a direct replacement HVAC blower motor resistor connector for repairing damaged electrical connections without replacing the full harness. It uses high-grade terminal materials and a polyamide resin housing for dependable electrical fit and long service life in demanding under-dash environments.

Compatible with select Dodge Dakota, Dodge Ram 1500, Dodge Ram 2500, Dodge Ram 3500, and Mitsubishi Raider applications, this connector supports clean restoration of blower motor resistor wiring where heat or corrosion has damaged the original plug. Standard Ignition S2333 is built for direct-fit service and consistent electrical performance.

Key Features

• Direct replacement HVAC blower motor resistor connector
• Male connector with female blade terminals
• 10 terminal and 10 wire configuration
• Protective tubing included
• Terminals made with copper alloy, brass, and phosphor bronze
• Polyamide resin housing for durability in harsh environments
• 100% tested for mechanical and electrical fit, form, and function

Detailed Product Description

Standard Ignition S2333 is engineered as a replacement electrical connector for HVAC blower motor resistor repairs where the original connector has overheated, loosened, or failed. Instead of replacing the entire harness, this connector allows a targeted repair that restores the damaged connection point. The terminal construction and housing materials are selected to support stable conductivity and long-term performance. This part cross-references 57-5403 and EC2236 for the same application.

Use this connector when servicing blower motor resistor wiring on 2006-2007 Dodge Dakota, 2006-2007 Dodge Ram 1500, 2006-2007 Dodge Ram 2500, 2006-2007 Dodge Ram 3500, and 2006-2007 Mitsubishi Raider models that require multiple connectors. It also applies to earlier Chrysler, Dodge, and Plymouth minivan and truck applications listed in the fitment data, including Dodge Caravan, Dodge Grand Caravan, Chrysler Town & Country, and Plymouth Voyager.

Common Repair Uses

• Burned or heat-damaged blower motor resistor connector
• Loose or intermittent HVAC blower speed operation
• Corroded or broken terminal connections
• Melted plastic housing at the resistor plug
• Electrical continuity loss at the HVAC resistor circuit

Installation Notes and Tips

Inspect the resistor, terminals, and surrounding wiring before installation. Repair any heat damage at the connector interface and verify terminal alignment before final connection. For 2006-2007 Dodge Dakota, Dodge Ram 1500, Dodge Ram 2500, Dodge Ram 3500, and Mitsubishi Raider applications, confirm whether multiple connectors are required for the repair. Match the connector to the vehicle’s original terminal style and wire count for proper fitment.

Quality Assurance

Standard Ignition tests these electrical connectors for proper mechanical and electrical fit, form, and function. The combination of high-grade terminal metals and a polyamide housing is intended to support reliable service in harsh automotive environments.
