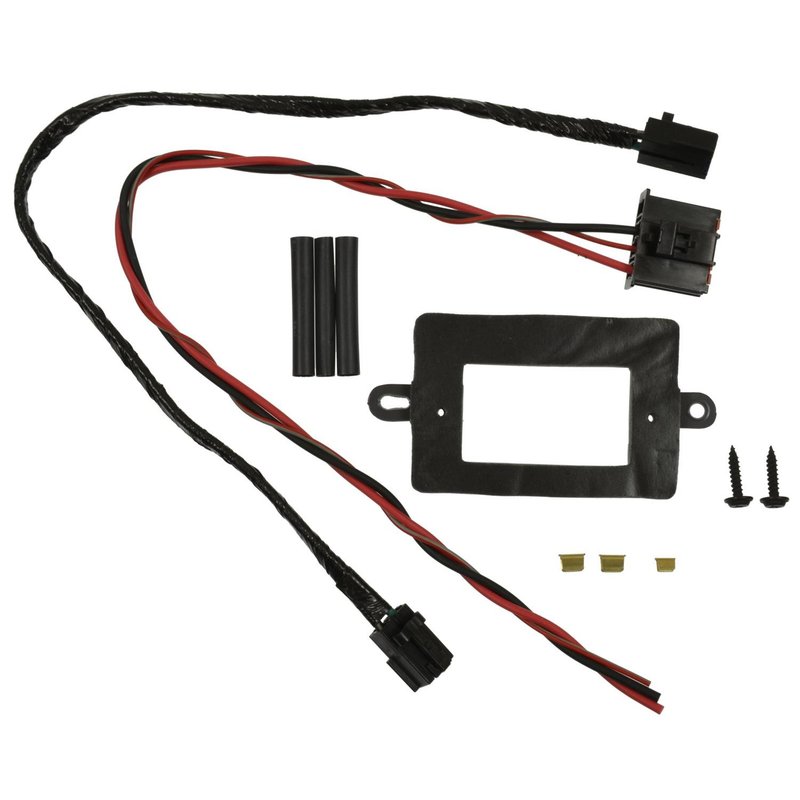

Standard Ignition S2338 HVAC Blower Motor Resistor Connector - Front or Rear

Overview of Standard Ignition HVAC Blower Motor Resistor Connector S2338

The Standard Ignition HVAC Blower Motor Resistor Connector S2338 is designed to provide reliable electrical connectivity for HVAC blower motor resistor systems. This connector is compatible with various Chrysler, Dodge, and Jeep models, ensuring proper fit and function in your vehicle's heating and cooling system.

• Connector Gender: Male; male
• Terminal Gender: Female; female
• Terminal Quantity: 3 + 2 terminals
• Terminal Type: Blade terminals
• Wire Quantity: 3 wires

Detailed Product Description and Attributes

The S2338 blower motor resistor connector from Standard Ignition features a male connector gender with female blade terminals, designed to securely connect the HVAC blower motor resistor wiring harness. It includes a total of five terminals arranged as 3 plus 2, accommodating three wires for proper electrical flow. The blade terminal type ensures a stable and corrosion-resistant connection, which is critical for consistent blower motor performance. This connector is engineered to meet OEM specifications for Chrysler, Dodge, and Jeep vehicles, including models such as the Chrysler 300, Dodge Charger, Jeep Grand Cherokee, and others.

Compatible Vehicles and Applications

This HVAC blower motor resistor connector is compatible with a wide range of Chrysler, Dodge, and Jeep vehicles. It is suitable for use in models including the Chrysler 300, 300M, Concorde, Intrepid, LHS, New Yorker, Dodge Charger, Durango, Nitro, Jeep Commander, Grand Cherokee, Liberty, and Grand Voyager, as well as minivans like the Grand Caravan, Pacifica, Town & Country, and Voyager.

Common Issues Addressed by This Connector

• Intermittent or non-functioning blower motor speeds
• HVAC blower motor resistor electrical connection failures
• Corroded or damaged blade terminals causing poor conductivity
• Loose or faulty wiring connections in the blower motor circuit
• Replacement of worn or broken HVAC electrical connectors

Installation Notes and Tips

When installing the Standard Ignition S2338 connector, ensure the vehicle’s ignition is off and the battery is disconnected to prevent electrical shorts. Verify the connector orientation matches the original part, noting the male connector gender and female blade terminals. Inspect wiring for damage before installation and secure all connections firmly to avoid future electrical issues. Use dielectric grease on terminals if recommended to prevent corrosion and improve conductivity.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM standards, ensuring reliable performance and durability. The S2338 connector undergoes rigorous quality control to maintain consistent electrical connectivity in HVAC systems. Warranty coverage details can be obtained from the product documentation or Standard Ignition’s official resources, typically including protection against manufacturing defects.
