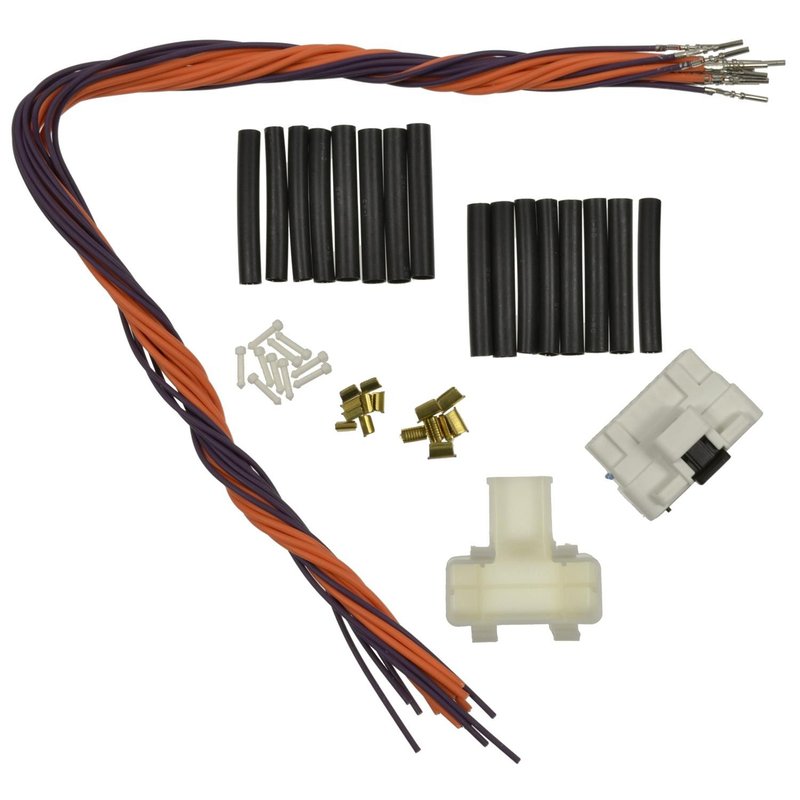

Standard Ignition S2340 Engine Control Module (ECM) Connector

Engine Control Module Connector for 1999 Dodge

Standard Ignition S2340 is a direct replacement engine control module connector for select 1999 Dodge applications. It is built for repairs where the connector body or terminals are damaged, allowing the connector to be replaced without changing the entire harness.

Key Features

• Male ECM connector with male terminals
• 16 bullet-style terminals and 16 wire positions
• Protective tubing included for added wire protection
• Housing made from polyamide resin for durability in harsh environments
• Terminals use copper alloy, brass, and phosphor bronze materials
• 100% tested for mechanical and electrical fit, form, and function

Product Details

The Standard Ignition S2340 connector is a high-quality replacement electrical connector for engine control module repair work. It is engineered to restore a secure electrical connection when the original ECM connector has heat damage, corrosion, broken locking features, or terminal wear. This part cross-references 5014012AA and EC2243 for the same application. It is listed for 1999 Dodge Durango and 1999 Dodge Ram 1500, making it a practical choice for technicians servicing these vehicles.

Common Repair Uses

• Broken or melted ECM connector housing
• Corroded or loose terminal connections
• Damaged wiring at the engine control module connector
• Intermittent electrical faults caused by poor connector contact
• Neutral safety switch connector repair on select 1999 Dodge Durango and Ram 1500 applications

Installation Notes

Verify connector style, terminal count, and terminal type before installation. Match the existing harness wiring carefully and inspect adjacent terminals for heat or corrosion damage. On some 1999 Dodge Durango and 1999 Dodge Ram 1500 applications, multiple connectors may be required for neutral safety switch service.

Quality Assurance

Standard Ignition manufactures this connector with high-grade terminal materials and a polyamide housing for long service life and stable performance in demanding underhood conditions. Each connector is 100% tested for proper mechanical and electrical fit, form, and function.
