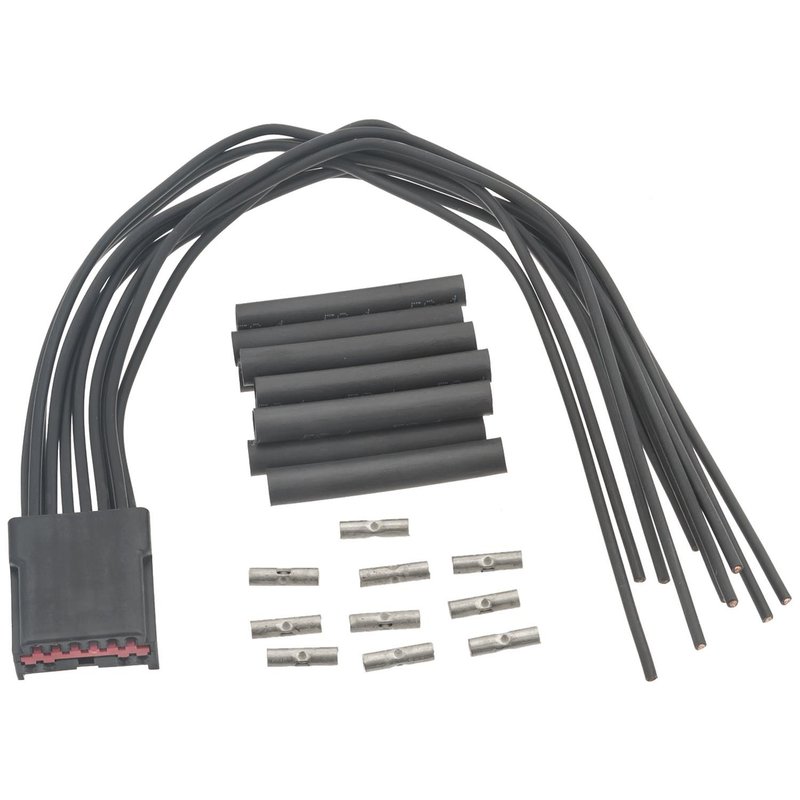

Standard Ignition S2407 Fuel Pump Control Module Connector

Overview of Standard Ignition Fuel Pump Control Module Connector S2407

The Standard Ignition Fuel Pump Control Module Connector S2407 is designed to provide reliable electrical connectivity for fuel pump control modules in select Ford, Lincoln, and Mercury vehicles. This male connector features a rectangular shape and is engineered to meet the specific wiring needs of models such as the Ford F-150, Lincoln Continental, and Mercury Grand Marquis.

• Connector Gender: Male
• Connector Quantity: 1
• Connector Shape: Rectangular
• Terminal Gender: Female
• Terminal Quantity: 10
• Terminal Type: Pin socket
• Wire Quantity: 10
• No mounting brackets included

Detailed Product Description

The S2407 connector from Standard Ignition is a 10-wire, 10-terminal male connector with female pin socket terminals, designed specifically for fuel pump control modules. Its rectangular shape ensures a secure and precise fit, facilitating proper electrical connections essential for fuel pump operation. This connector is compatible with a range of Ford, Lincoln, and Mercury vehicles, including the Ford F-150, F-250 Super Duty, Mustang, Lincoln Continental, and Mercury Grand Marquis, among others. The absence of mounting brackets means it is intended for direct integration into existing harnesses or assemblies.

Compatible Vehicles and Applications

This fuel pump control module connector is compatible with the following makes and models:

• Ford F-150, F-150 Heritage, F-250, F-250 Super Duty, F-350 Super Duty, Mustang, Ranger, Taurus
• Lincoln Continental, Town Car
• Mercury Grand Marquis, Sable, Crown Victoria

Common Issues Addressed by This Connector

• Intermittent fuel pump operation due to faulty connector contacts
• Corroded or damaged terminals causing electrical resistance
• Loose or broken wiring connections affecting fuel delivery
• Connector housing wear leading to poor fit and connection
• Replacement of worn or damaged OEM connectors in fuel pump control modules

Installation Notes and Tips

• Ensure the vehicle’s battery is disconnected before installation to prevent electrical shorts
• Verify the connector orientation matches the fuel pump control module port for proper fit
• Inspect wiring harness for damage before connecting to avoid future electrical issues
• Use dielectric grease on terminals to reduce corrosion and improve conductivity
• Confirm all 10 terminals are securely seated to maintain reliable electrical contact

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring dependable performance and durability. The S2407 connector undergoes rigorous quality control testing to verify terminal integrity and fitment accuracy. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in material and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
