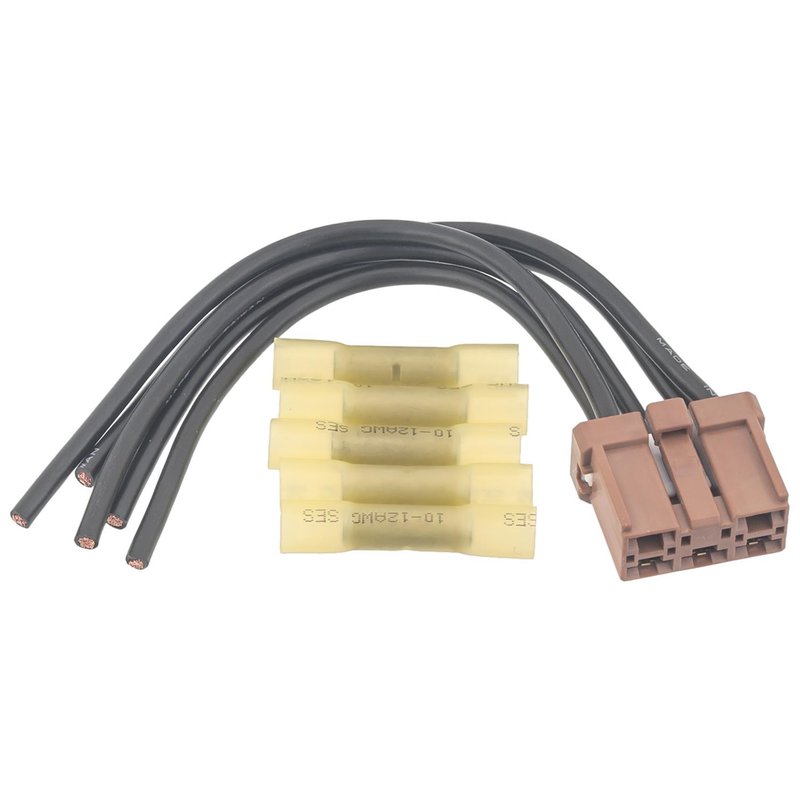

Standard Ignition S2448 HVAC Blower Motor Resistor Connector - Front or Rear
| Brand | Standard Ignition S2448 |
|---|---|
| Position | Rear |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Terminal Gender | Female |
| Terminal Type | Blade |
| Fits | Honda and Isuzu · 44 vehicles |
Wiring harness included. Includes splice connectors for a complete connector repair.
Five-wire design. Supports a 5-terminal connection with bullet terminals.
Plastic housing. Black and red connector body with brass contact terminals.
Cross-references Standard Ignition S2448, CONB11261 and EC2349 for the same application. See all 4.
HVAC Blower Motor Resistor Connector Overview
The Standard Ignition S2448 is a replacement HVAC blower motor resistor connector for select Honda and Isuzu applications. It is built with a plastic rectangular housing, female bullet terminals, and a 5-wire harness layout for direct electrical repair work in the blower motor resistor circuit.
Use this connector when servicing blower speed control wiring on vehicles such as the Honda Accord, Honda Odyssey, Honda Prelude, and Isuzu Oasis. The S2448 is a practical OE-style repair part for restoring a secure electrical connection in the HVAC system.
Key Features
- Brand: Standard Ignition
- Part number: S2448
- HVAC blower motor resistor connector with 5-wire harness
- Female connector with rectangular housing
- Push-on attachment method for the terminal connection
- Black and red plastic body with brass contact terminal material
- 12-volt electrical application
- Includes splice connectors and wiring harness
- Harness length: 7.75 in. (196.85 mm)
Detailed Description
Standard Ignition S2448 is a female HVAC blower motor resistor connector designed for 12-volt vehicle electrical systems. It features a rectangular plastic connector body, brass bullet terminals, and a 5-wire configuration with a push-on attachment method. The included wiring harness measures 7.75 inches, giving technicians the length needed for a clean repair at the resistor connection point.
This part cross-references EC2349 and PT2433 for the same application. Compatible fitment includes 1990-2002 Honda Accord, 1992-2001 Honda Prelude, 1995-1998 Honda Odyssey, 1999-2000 Honda Odyssey, 2001-2004 Honda Odyssey, 2004 Honda Odyssey, and 1996-1999 Isuzu Oasis. The S2448 is a direct-fit electrical connector solution for blower motor resistor wiring repair on these vehicles.
Common Repair Uses
- Broken or heat-damaged blower motor resistor connector
- Loose or intermittent HVAC blower speed operation
- Corroded or worn terminal connections
- Damaged wiring at the resistor plug
- Electrical repair after connector melting or terminal failure
Installation Notes
Inspect the resistor and surrounding wiring before installation, since connector damage often occurs after excess heat or resistance in the circuit. Match the wire positions carefully to the existing harness and verify terminal engagement before reconnecting the HVAC system. This connector is not weather resistant or weatherproof sealed, so it is intended for interior HVAC electrical service.
Quality Assurance
Standard Ignition supplies replacement electrical components for automotive repair applications, and the S2448 is built to service the specified Honda and Isuzu fitments with the listed connector style and harness configuration.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2004 | Honda | Odyssey | — | — | — | Rear | — |
| 2004 | Honda | Odyssey | — | — | — | N/A | — |
| 2003 | Honda | Odyssey | — | — | — | N/A | — |
| 2002 | Honda | Accord | — | 2.3L | L4 | N/A | — |
| 2002 | Honda | Odyssey | — | — | — | N/A | — |
| 2001 | Honda | Accord | — | 2.3L | L4 | N/A | — |
| 2001 | Honda | Odyssey | — | — | — | N/A | — |
| 2001 | Honda | Prelude | — | — | — | N/A | — |
| 2000 | Honda | Accord | — | 2.3L | L4 | N/A | — |
| 2000 | Honda | Odyssey | LX | — | — | Rear | — |
| 2000 | Honda | Odyssey | Cargo | — | — | Front | — |
| 2000 | Honda | Odyssey | EX | — | — | Rear | — |
| 2000 | Honda | Odyssey | LX | — | — | Front | — |
| 2000 | Honda | Prelude | — | — | — | N/A | — |
| 1999 | Honda | Accord | — | 2.3L | L4 | N/A | — |
| 1999 | Honda | Odyssey | Cargo | — | — | Front | — |
| 1999 | Honda | Odyssey | LX | — | — | Front | — |
| 1999 | Honda | Odyssey | EX | — | — | Rear | — |
| 1999 | Honda | Odyssey | LX | — | — | Rear | — |
| 1999 | Honda | Prelude | — | — | — | N/A | — |
| 1999 | Isuzu | Oasis | — | — | — | Front | — |
| 1998 | Honda | Accord | — | 2.3L | L4 | N/A | — |
| 1998 | Honda | Odyssey | — | — | — | N/A | — |
| 1998 | Honda | Prelude | — | — | — | N/A | — |
| 1998 | Isuzu | Oasis | — | — | — | Front | — |
| 1997 | Honda | Accord | — | — | — | N/A | — |
| 1997 | Honda | Odyssey | — | — | — | N/A | — |
| 1997 | Honda | Prelude | — | — | — | N/A | — |
| 1997 | Isuzu | Oasis | — | — | — | Front | — |
| 1996 | Honda | Accord | — | — | — | N/A | — |
| 1996 | Honda | Odyssey | — | — | — | N/A | — |
| 1996 | Honda | Prelude | — | — | — | N/A | — |
| 1996 | Isuzu | Oasis | — | — | — | Front | — |
| 1995 | Honda | Accord | — | — | — | N/A | — |
| 1995 | Honda | Odyssey | — | — | — | N/A | — |
| 1995 | Honda | Prelude | — | — | — | N/A | — |
| 1994 | Honda | Accord | — | — | — | N/A | — |
| 1994 | Honda | Prelude | — | — | — | N/A | — |
| 1993 | Honda | Accord | — | — | — | N/A | — |
| 1993 | Honda | Prelude | — | — | — | N/A | — |
| 1992 | Honda | Accord | — | — | — | N/A | — |
| 1992 | Honda | Prelude | — | — | — | N/A | — |
| 1991 | Honda | Accord | — | — | — | N/A | — |
| 1990 | Honda | Accord | — | — | — | N/A | — |
