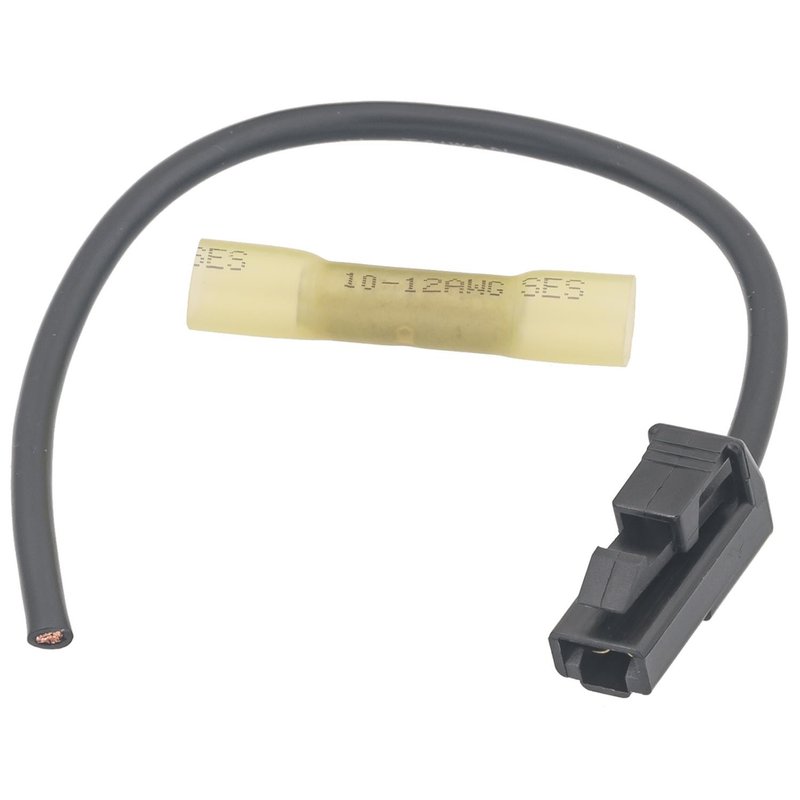

Standard Ignition S2455 HVAC Blower Motor Resistor Connector

Reliable HVAC Blower Motor Resistor Connector for Ford and Mazda Vehicles

The Standard Ignition S2455 HVAC blower motor resistor connector is designed to provide a secure and efficient electrical connection for your vehicle's heating and cooling system. Compatible with select Ford, Mazda, and Mercury models, this connector ensures consistent performance in your HVAC blower motor circuit.

• Female terminal gender with a single bullet-type contact terminal
• Constructed from durable black plastic with brass contact terminals
• Push-on attachment method for easy installation
• Includes one wiring harness measuring 7 inches (177.8 mm) in length
• Designed for 12-gauge wire with one wire quantity
• Rectangular connector shape with a 0-degree bend angle
• Includes one splice connector for secure wire connections

Product Details and Specifications

The Standard Ignition S2455 connector is engineered to meet the electrical demands of HVAC blower motor resistor circuits in vehicles such as the Ford Escort, Mazda Miata, and Mercury Tracer. Its female bullet terminal and brass contact material provide reliable conductivity, while the black plastic housing offers insulation and protection. The connector is not weather-resistant or sealed, so it is intended for use in protected areas within the vehicle's HVAC system. The push-on attachment method simplifies installation and replacement, reducing downtime during repairs.

Compatible Vehicles and Applications

This HVAC blower motor resistor connector is compatible with various Ford, Mazda, and Mercury models, including but not limited to:

• Ford Escort, Probe, and Tracer
• Mazda 323, 626, Miata, MPV, MX-3, MX-6, Protege, RX-7
• Mercury models sharing similar HVAC systems

It is specifically designed to replace worn or damaged connectors in the blower motor resistor circuit, ensuring proper electrical flow and HVAC system functionality.

Common Issues Addressed by This Connector

• Intermittent blower motor operation due to poor electrical connection
• HVAC blower motor resistor failure caused by faulty wiring connectors
• Loss of blower speed control resulting from connector corrosion or damage
• Electrical shorts or open circuits in the blower motor resistor harness
• Difficulty in maintaining consistent HVAC airflow

Installation Notes and Tips

When installing the Standard Ignition S2455 connector, ensure the wiring harness is properly routed and secured to avoid strain or damage. The push-on attachment method allows for straightforward connection to the blower motor resistor terminals. Verify that the female bullet terminal is fully seated to maintain a solid electrical connection. Since this connector is not weatherproof, avoid exposure to moisture or contaminants during installation.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing reliable performance and durability. The S2455 connector undergoes quality control inspections to ensure proper fit and function. Please refer to Standard Ignition's warranty policy for specific coverage details related to this part.
