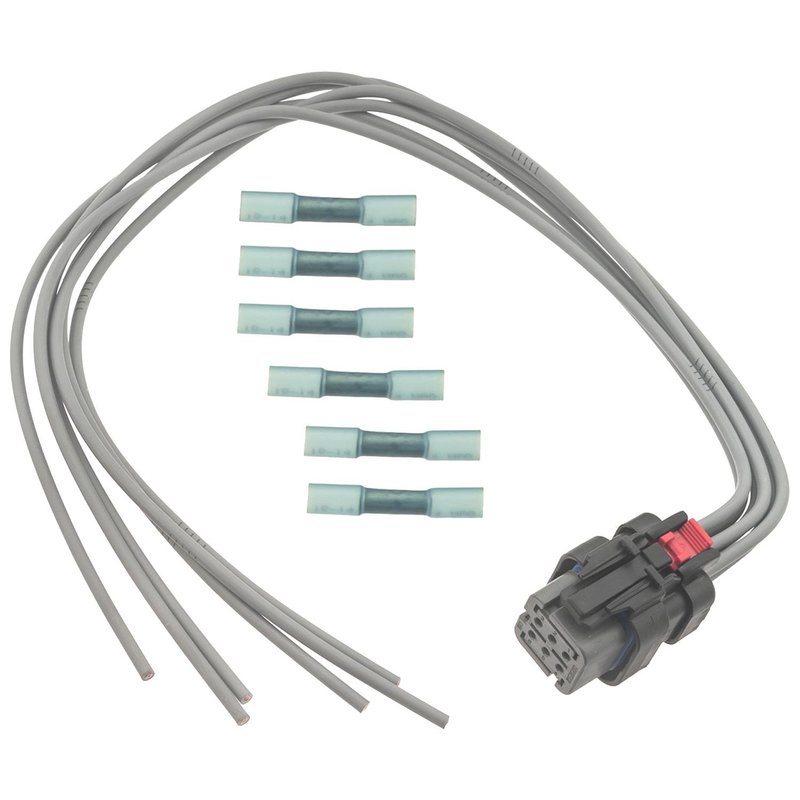

Standard Ignition S2500 Nitrogen Oxide (NOx) Sensor Connector

Reliable Nitrogen Oxide Sensor Connector for Chevrolet and GMC

The Standard Ignition S2500 Nitrogen Oxide (NOx) Sensor Connector is designed to provide a secure and precise electrical connection for NOx sensors in select Chevrolet and GMC heavy-duty vehicles. Engineered with a female connector and terminal design, this connector ensures compatibility and durability for your vehicle's emission control system.

• Female connector gender with a square shape for accurate fitment
• Single connector quantity with six pin socket terminals
• Six-wire configuration to support sensor signal integrity
• Compatible with Chevrolet Express 2500/3500 and Silverado 2500 HD/3500 HD models
• Designed for GMC Savana 2500/3500 and Sierra 2500 HD/3500 HD applications

Product Details and Specifications

The S2500 connector from Standard Ignition features a female connector and terminal gender, ensuring a secure and reliable connection to the NOx sensor. Its square connector shape and six-pin socket terminal type accommodate six wires, providing stable electrical pathways necessary for accurate sensor readings. This connector is specifically engineered for use in heavy-duty Chevrolet and GMC trucks and vans, including the Express, Savana, Sierra, and Silverado series. The part number S2500 identifies this precise connector model, facilitating easy replacement and compatibility verification.

Compatible Vehicles and Applications

This NOx sensor connector is compatible with the following vehicles:

• Chevrolet Express 2500 and Express 3500
• Chevrolet Silverado 2500 HD and Silverado 3500 HD
• GMC Savana 2500 and Savana 3500
• GMC Sierra 2500 HD and Sierra 3500 HD

It is designed to maintain the integrity of the nitrogen oxide sensor circuit, which is critical for emissions monitoring and engine performance.

Common Issues Addressed by the S2500 Connector

• Intermittent or faulty NOx sensor signals causing emission errors
• Corroded or damaged sensor connector terminals
• Electrical connection failures leading to check engine light activation
• Wiring harness wear affecting sensor communication
• Replacement of worn or broken connectors during sensor service

Installation Notes and Tips

When installing the Standard Ignition S2500 connector, ensure the vehicle’s ignition is off and the battery is disconnected to prevent electrical shorts. Verify the connector orientation matches the square shape and that all six wires are properly seated in the pin socket terminals. Inspect the wiring harness for any damage before connecting. Properly secure the connector to avoid vibration-related disconnections during vehicle operation.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance in demanding automotive environments. The S2500 Nitrogen Oxide Sensor Connector undergoes rigorous quality control to maintain electrical integrity and durability. Please refer to Standard Ignition’s warranty policy for specific coverage details.
