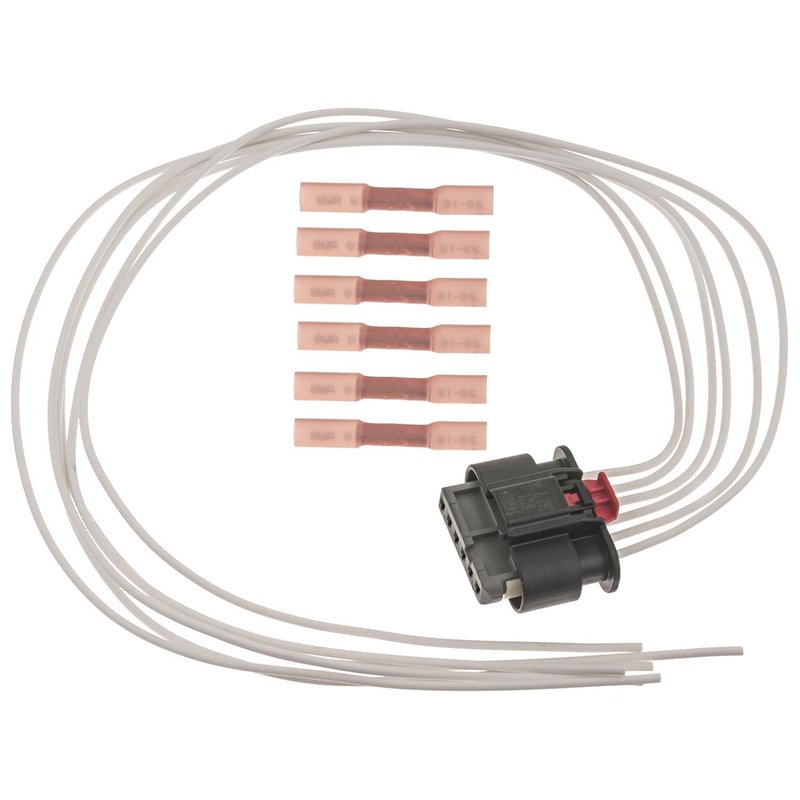

Standard Ignition S2504 Diesel Particulate Sensor Connector

Overview of Standard Ignition Diesel Particulate Sensor Connector

The Standard Ignition S2504 Diesel Particulate Sensor Connector is designed to ensure reliable electrical connections in emission control systems. Engineered with a female oval connector and six blade terminals, this connector supports accurate sensor communication for Chevrolet and GMC diesel vehicles.

• Female connector gender with oval shape for secure fit
• Six blade-type female terminals for stable electrical contact
• Supports six-wire configurations for comprehensive sensor integration
• Compatible with multiple Chevrolet and GMC diesel models
• Part number S2504 for precise identification and replacement

Detailed Product Features and Specifications

This diesel particulate sensor connector features a female oval connector housing designed to mate securely with corresponding male connectors. It includes six female blade terminals, each supporting individual wire connections, ensuring consistent signal transmission. The six-wire configuration accommodates complex sensor wiring needs typical in diesel emission control systems. The connector's design supports durability and resistance to environmental factors common in automotive applications.

Compatible Chevrolet and GMC Models

The Standard Ignition S2504 connector is compatible with a range of Chevrolet and GMC diesel vehicles, including the Chevrolet Canyon, Colorado, Cruze, Equinox, Express 2500, Express 3500, Savana 2500, Savana 3500, Sierra 2500 HD, Sierra 3500 HD, Silverado 2500 HD, Silverado 3500 HD, and Terrain models. This ensures proper fitment and function within the emission control electrical systems of these vehicles.

Common Applications and Problem Resolution

• Restores proper electrical connection to diesel particulate sensors
• Resolves intermittent sensor signal issues caused by connector wear
• Prevents emission system faults related to poor sensor communication
• Supports accurate diesel particulate filter monitoring and regeneration
• Eliminates corrosion-related electrical failures in sensor wiring

Installation Notes and Tips

When installing the S2504 connector, ensure the female oval connector aligns correctly with the mating male connector to avoid terminal damage. Verify that all six wires are securely seated in their respective blade terminals. Inspect the connector for any signs of wear or corrosion before installation. Proper handling and connection will maintain sensor signal integrity and emission system performance.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing reliable performance in emission control applications. The S2504 connector undergoes quality checks to ensure durability and electrical consistency. Please refer to Standard Ignition's warranty policy for coverage details on this part.
