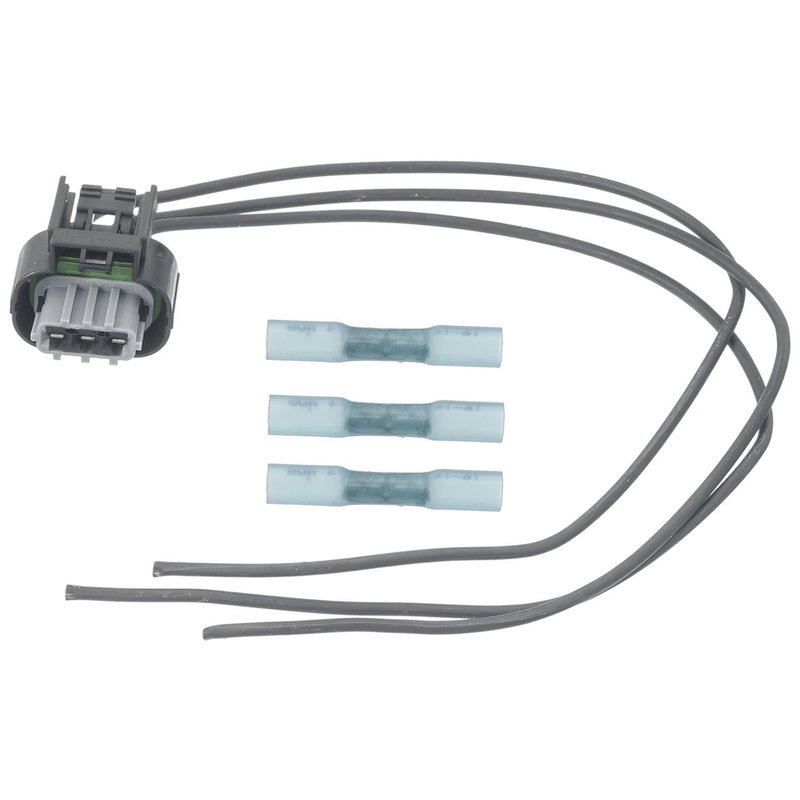

Standard Ignition S2524 Manifold Absolute Pressure Sensor Connector

Overview of Standard Ignition Manifold Absolute Pressure Sensor Connector

The Standard Ignition S2524 Manifold Absolute Pressure Sensor Connector is designed to provide reliable electrical connectivity for critical engine management systems. This male connector with an oval shape and three blade terminals ensures secure and efficient signal transmission for vehicles including Chevrolet Astra, Ford Escape, and Lincoln MKZ.

• Connector Gender: Male
• Connector Quantity: 1
• Connector Shape: Oval
• Terminal Gender: Female
• Terminal Quantity: 3
• Terminal Type: Blade
• Wire Quantity: 3

Detailed Product Description

The S2524 Manifold Absolute Pressure Sensor Connector by Standard Ignition is engineered to meet OEM specifications for electrical connectors used in manifold absolute pressure (MAP) sensor applications. Featuring a male connector with an oval design, it accommodates three female blade terminals, providing a secure and corrosion-resistant connection. The three-wire configuration supports accurate sensor data transmission, essential for engine control units to monitor air pressure and optimize fuel delivery.

This connector is compatible with a range of Ford, Chevrolet, and Lincoln models, including the Ford F-250 Super Duty, Ford Transit-350 HD, Chevrolet Astra, and Lincoln MKC. Its blade terminal type ensures easy mating with corresponding sensor terminals, reducing the risk of poor contact or signal loss.

Common Applications and Problem Resolution

• Restores proper electrical connection to the manifold absolute pressure sensor
• Eliminates intermittent sensor signal issues caused by damaged or corroded connectors
• Prevents engine performance problems related to faulty MAP sensor wiring
• Supports accurate engine load and air pressure readings for improved fuel efficiency
• Addresses check engine light triggers related to MAP sensor circuit faults

Installation Notes and Tips

When installing the Standard Ignition S2524 connector, ensure the mating surfaces are clean and free of debris to maintain optimal electrical contact. Verify that the three blade terminals are properly seated and that the connector locks securely to prevent disconnection due to vibration. This connector is designed for direct replacement on compatible Chevrolet Astra, Ford Escape, and Lincoln MKZ models, among others.

Quality Assurance and Warranty

Standard Ignition manufactures the S2524 connector to meet stringent quality standards, ensuring durability and reliable performance in demanding automotive environments. While specific warranty details are not provided, Standard Ignition products typically adhere to industry quality controls to support long-term vehicle operation.
