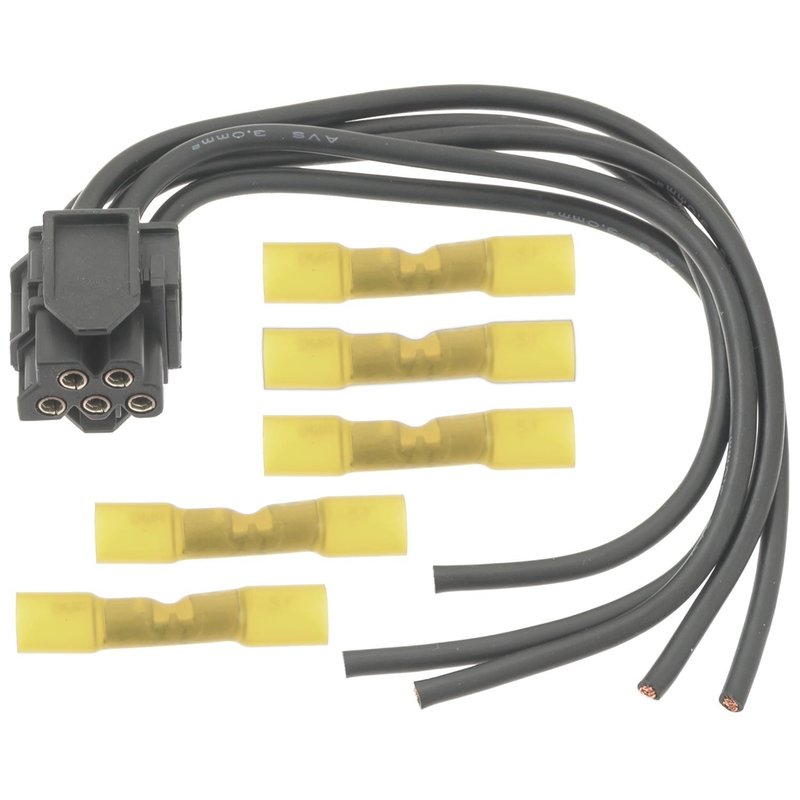

Standard Ignition S2530 HVAC Blower Motor Resistor Connector - Rear

HVAC Blower Motor Resistor Connector for BMW

Standard Ignition S2530 is an HVAC blower motor resistor connector built for BMW applications that use a 5-terminal, 12-gauge harness connection. It features a male connector body with a female pin socket terminal design and a sealed weatherproof construction for a secure electrical interface.

Use this connector when servicing blower motor resistor wiring on select BMW 3 Series and 7 Series models, including BMW 320i, 325i, 330i, and 740i applications. The 8.25-inch harness length and polygon connector shape support direct replacement of the original connector style.

Key Features

• Standard Ignition S2530 HVAC blower motor resistor connector
• Male connector with female pin socket terminals
• 5-terminal, 5-wire design with 12 ga. wiring
• Weatherproof sealed construction
• Polygon connector shape with 0-degree bend angle
• 21 cm harness length for service replacement use

Detailed Description

This HVAC blower motor resistor connector is designed for electrical repair at the blower resistor circuit, where heat, vibration, and connector wear can affect HVAC operation. Standard Ignition S2530 provides the correct connector format for BMW blower motor resistor wiring on select 1992-2010 BMW models, including BMW X3, 325Ci, 330Ci, M3, 318i, and 750iL applications. This part cross-references CONA330 and EC2441 for the same application.

Built with a 1-inch housing length and 12-gauge wire, this connector is suited for restoring a stable connection at the resistor harness. The sealed design helps maintain a secure electrical interface in the HVAC circuit, while the 5-pin socket terminal layout matches the original connector style used in the listed BMW applications.

What It Is Used For

• Repairing a damaged HVAC blower motor resistor connector
• Restoring blower motor speed control when the connector is heat-damaged
• Replacing brittle, melted, or corroded HVAC wiring ends
• Correcting intermittent blower operation caused by poor terminal contact
• Servicing BMW HVAC electrical connections on the listed models

Installation Notes and Tips

Verify connector shape, terminal count, wire gauge, and harness length against the original part before installation. Match the connector to the vehicle’s blower motor resistor wiring and confirm the BMW application by year, model, and rear-position listings where shown. Proper terminal seating and secure wire routing are important for reliable HVAC electrical performance.

Quality Assurance

Standard Ignition supplies replacement electrical components for service and repair applications. S2530 is built to match the listed connector specifications for BMW HVAC blower motor resistor service.
