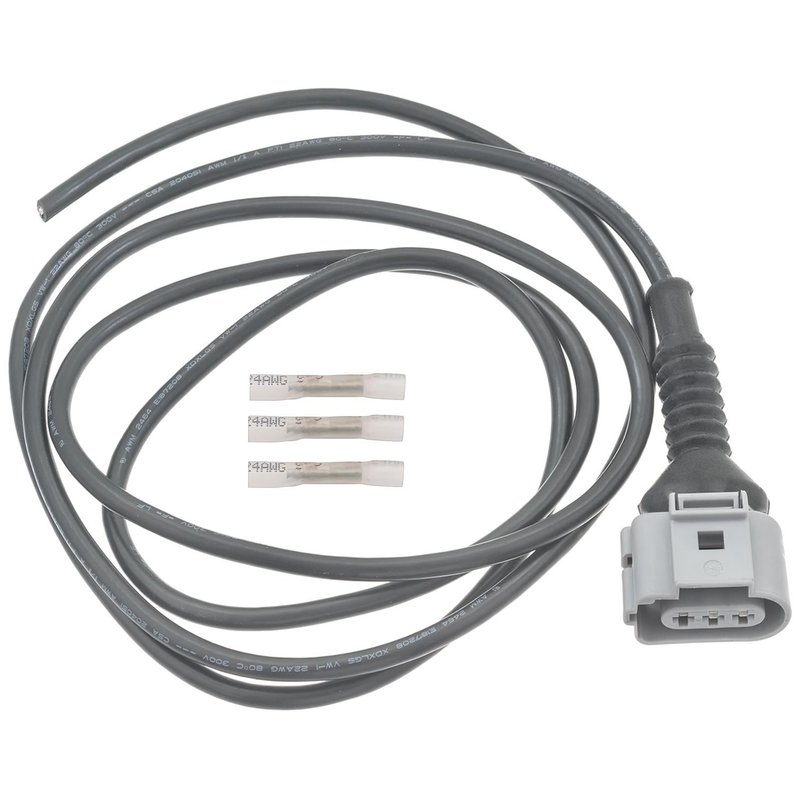

Standard Ignition S2800 Engine Crankshaft Position Sensor Connector

Engine Crankshaft Position Sensor Connector for VW and Audi

Standard Ignition S2800 is an engine crankshaft position sensor connector built for select Volkswagen, Audi, and Porsche applications. It features a 3-terminal blade-style female terminal layout, an oval connector shape, and a weatherproof sealed housing for a secure electrical connection in the engine harness.

Use this Standard Ignition S2800 connector when servicing crankshaft position sensor wiring on vehicles such as the Volkswagen Jetta, Volkswagen Golf, and Audi A4. The 65.5-inch 22-gauge harness provides the length needed for routing in the original harness path, while the male connector body and sealed design support a clean replacement connection.

Key Features

• Standard Ignition S2800 engine crankshaft position sensor connector
• 3-terminal blade terminal design with oval connector shape
• Weatherproof sealed housing for protected electrical contact
• 22-gauge wire with 65.5-inch harness length
• Single connector configuration for harness repair work
• Direct-fit style for many Volkswagen, Audi, and Porsche models

Detailed Description

The S2800 is a replacement electrical connector for crankshaft position sensor circuits used across a wide range of European vehicles. It is listed with a male connector body, female blade terminals, and a 0-degree bend angle, making it suitable for straightforward harness repair and connector replacement. This part cross-references 4D0971379 and EC2700 for the same application.

Compatible With 1995-2014 Volkswagen Beetle, Golf, Jetta, Passat, Touareg, and related models, plus select Audi A3, A4, A6, A8, S4, S6, S8, TT, and Porsche Cayenne applications. The part number S2800 is also referenced in interchange listings for multiple OE-style replacement needs.

What It Helps Solve

• Broken or heat-damaged crankshaft position sensor connector housings
• Intermittent sensor signal caused by worn terminals
• Corrosion at the connector interface
• Harness-side connector damage during engine service
• Poor electrical contact at the crankshaft position sensor circuit

Installation Notes and Tips

Verify connector shape, terminal count, and harness routing before installation. Fitment notes vary by vehicle and emissions package, so confirm the application against the existing alternator or sensor connector style where noted in the catalog data. For Volkswagen Jetta, Golf, and Audi A4 applications, review the listed emissions and connector notes carefully before ordering.

Install by matching the terminal orientation and locking features to the original connector, then secure the harness to prevent strain on the wiring. The S2800 is listed for multiple year ranges, including 1995-2014 across supported Volkswagen and Audi platforms, so exact vehicle verification is important.

Quality Assurance

Standard Ignition supplies OE-style electrical components for repair and replacement use. The S2800 is built to match the listed connector specifications, including terminal type, gauge, and sealed housing design, to support reliable service on the intended applications.
