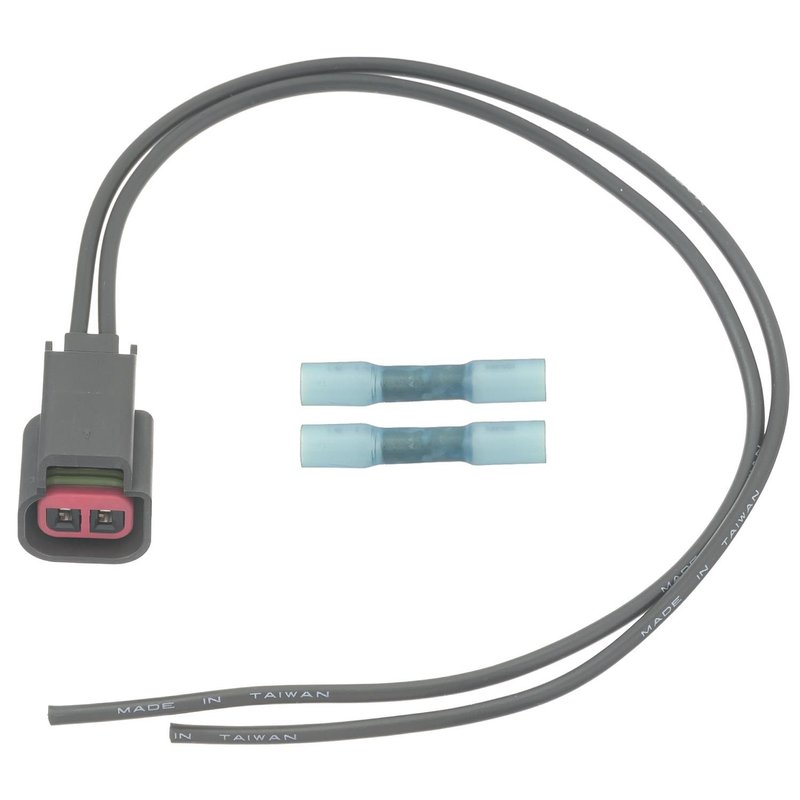

Standard Ignition S2840 Vapor Canister Purge Valve Connector

Vapor Canister Purge Valve Connector for Ford and Lincoln

Standard Ignition S2840 is a vapor canister purge valve connector built for emission control electrical repair on a wide range of Ford and Lincoln vehicles. It features an oval connector shape, a male housing, and a weatherproof sealed design for a secure connection at the purge valve circuit.

Key Features

• Standard Ignition S2840 vapor canister purge valve connector
• Oval connector shape with male housing and female blade terminals
• 16 gauge wire with 2-wire configuration
• Weatherproof sealed connector design
• 1-inch housing length and 0-degree bend angle
• Direct-fit style connector for emission control electrical service

Detailed Description

This Standard Ignition S2840 connector is used in vapor canister purge valve wiring repairs where the original connector is damaged, heat affected, or no longer making a reliable electrical connection. It is a direct replacement style connector for many Ford F-150, Ford Escape, Ford Explorer, Ford Fusion, Ford Mustang, and Lincoln applications, including 2011-2022 Ford F-250 Super Duty and 2011-2022 Ford F-350 Super Duty coverage. This part cross-references 8U2Z14S411EA and EC2740 for the same application.

Built with a weatherproof sealed housing, the S2840 helps maintain a stable connection in emission control circuits. The 16 gauge wire and 2-terminal blade layout support a clean repair at the purge valve connector location, while the oval shape and compact housing make it suitable for engine compartment service on many late-model Ford and Lincoln platforms.

Common Repair Uses

• Broken or cracked vapor canister purge valve connector housing
• Intermittent purge valve electrical connection
• Corroded or heat-damaged terminal interface
• Check engine light related to purge valve circuit faults
• Wiring repair after connector melt, wear, or terminal looseness

Installation Notes and Tips

Verify connector shape, terminal style, and wire gauge before installation. This connector uses female blade terminals and a weatherproof sealed design, so match the original purge valve connector configuration before splicing into the vehicle harness. Confirm vehicle-specific routing and connector location, especially on applications such as 2013-2016 Ford Fusion in the engine compartment.

Quality Assurance

Standard Ignition is a recognized name in replacement electrical components, and the S2840 is built to match the connector style used on listed Ford and Lincoln applications. Confirm fitment by year, make, and model before service.
