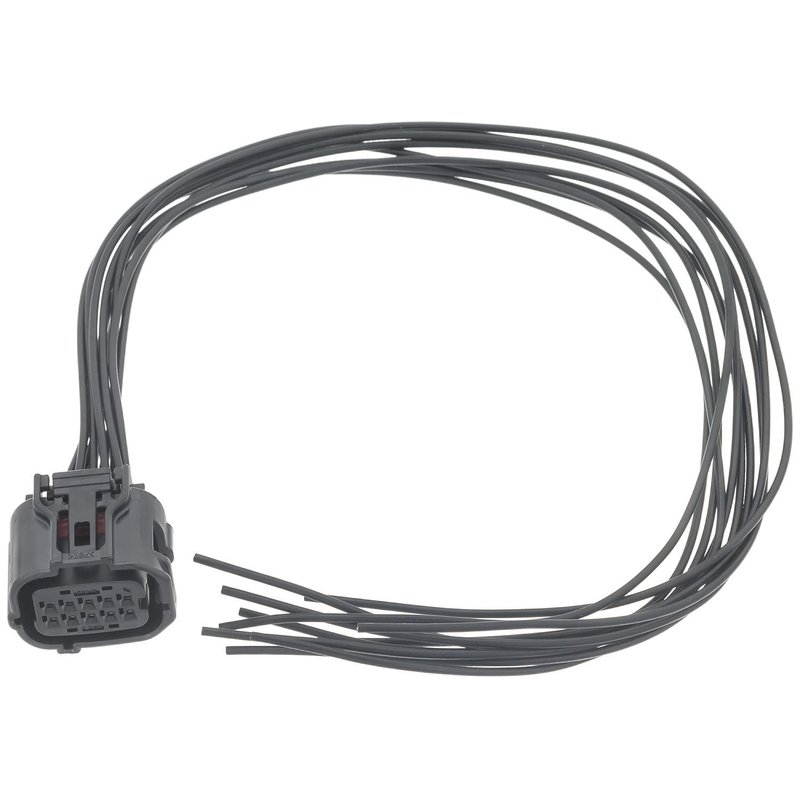

Standard Ignition S2846 Blind Spot Detection Sensor Connector

Blind Spot Sensor Connector for Toyota and Honda

Standard Ignition S2846 is a blind spot detection sensor connector built for select Toyota, Suzuki, and Honda applications. It is a weatherproof sealed, oval connector with a male housing, female blade terminals, and 18-gauge wiring for direct service on blind spot monitoring circuits.

Key Features

• Blind spot detection sensor connector for electrical repair
• Male connector with oval housing shape
• Female blade terminals with 10-terminal layout
• Weatherproof sealed construction
• 18-gauge wire and 320 mm harness length
• 0-degree bend angle for straight routing

Detailed Description

Standard Ignition S2846 is a replacement blind spot detection sensor connector used in vehicle electrical and body harness repairs where the original connector is damaged, corroded, or no longer locking securely. The sealed design supports exposed underbody and rear-corner sensor connections, while the 10-terminal blade interface and 18-gauge harness help maintain proper electrical continuity. This part cross-references OE-style numbers such as 9098012380 and EC2747 for the same application. It is a direct-fit service part for many Toyota Tundra, Toyota Tacoma, Toyota RAV4, Toyota Camry, Toyota Sienna, Toyota Avalon, Toyota Highlander, Toyota Sequoia, Toyota Land Cruiser, Toyota Prius, Toyota Matrix, Toyota Corolla, Toyota Venza, Toyota C-HR, Suzuki SX4, Suzuki Grand Vitara, and Honda Accord applications.

What It Helps Fix

• Broken or cracked blind spot sensor connector housing
• Corroded terminals causing intermittent sensor communication
• Loose electrical connection at the blind spot detection harness
• Water intrusion at a sealed sensor connector
• Faults caused by damaged wiring near the rear body harness

Installation Notes and Tips

Verify connector shape, terminal count, and harness routing before installation. Match the existing blind spot sensor connector to the oval housing, 10-terminal blade layout, and 18-gauge wire specification. Confirm vehicle-specific fitment for your Toyota Tundra, Toyota Tacoma, or Honda Accord by model year, since coverage varies by platform and production date. Inspect the mating terminals and surrounding harness for heat damage, corrosion, or pin spread before reconnecting.

Quality Assurance

Standard Ignition replacement electrical connectors are built for service work where a damaged factory connector needs to be restored to proper function. S2846 is a weatherproof sealed connector designed to support reliable electrical contact in blind spot detection circuits.
