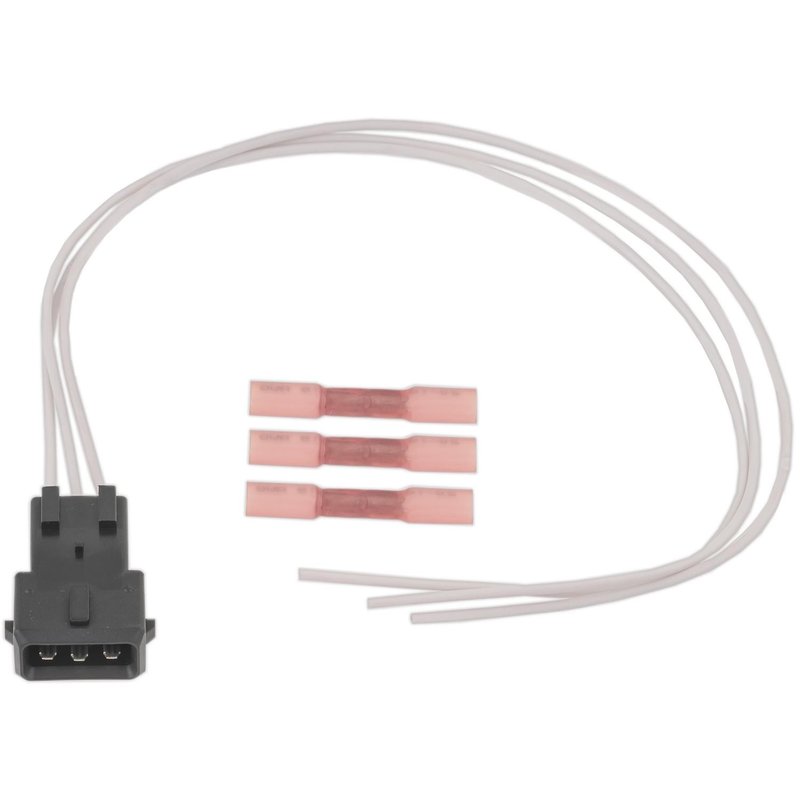

Standard Ignition S2858 Engine Camshaft Position Sensor Connector

Engine Camshaft Position Sensor Connector for BMW and Land Rover

Standard Ignition S2858 is an engine camshaft position sensor connector built for direct electrical repair on select BMW and Land Rover applications. It features a rectangular female housing with a weatherproof sealed design, 18-gauge wiring, and a 3-terminal blade connection for a secure sensor interface.

Use this connector when servicing camshaft position sensor wiring on BMW 325i, 525i, M3, 540i, 740i, 740iL, 750iL, 760i, 760Li, X5, Z3, Z4, 840Ci, 850Ci, and Land Rover Range Rover applications listed below. Standard Ignition S2858 is also cross-referenced to common replacement numbers for the same application.

Key Features

• Female rectangular connector for camshaft position sensor circuits
• 3 blade terminals with male terminal gender
• 18-gauge wire construction with 330 mm harness length
• Weatherproof sealed connector design
• 0-degree bend angle for straight routing
• Single connector housing with 1 1/4 in housing length

Detailed Description

Standard Ignition S2858 is an engine camshaft position sensor connector intended for repairing damaged, heat-affected, or corroded sensor wiring on select BMW and Land Rover vehicles. The connector uses a rectangular female housing, three blade-style terminals, and 18-gauge wire to match common OE-style sensor harness layouts. Its 330 mm harness length provides added reach for routing to the camshaft position sensor location without forcing the harness into a tight bend.

Fits 2003-2008 BMW 760Li, N/A; Fits 2006-2008 BMW Z4, N/A, Intake Side; Fits 2004-2006 BMW 760i, N/A; Fits 2001-2006 BMW M3, N/A, Intake Side; Fits 2003-2005 Land Rover Range Rover, N/A; Fits 1997-2003 BMW 540i, N/A; Fits 2001-2002 BMW Z3, N/A, Intake Side; Fits 1997-2001 BMW 740i, N/A; Fits 1996-2001 BMW 740iL, N/A; Fits 1995-2001 BMW 750iL, N/A; Fits 2000 BMW X5, N/A; Fits 1994-1997 BMW 840Ci, N/A; Fits 1995-1997 BMW 850Ci, N/A; Fits 1993-1995 BMW 325i, N/A; Fits 1993-1995 BMW 325is, N/A; Fits 1993-1995 BMW 525i, N/A; Fits 1995 BMW M3, N/A; Fits 1993 BMW 525iT, N/A.

This part cross-references EC2757 and PT2840 for the same application.

Common Repair Uses

• Broken or brittle camshaft position sensor connector housing
• Corroded or heat-damaged sensor terminals
• Intermittent camshaft position sensor signal loss
• Wiring repair after connector pin fitment issues
• Restoring sensor connection on BMW intake-side applications

Installation Notes and Tips

Match the connector shape, terminal count, and wire gauge to the original harness before installation. Verify terminal orientation and pinout against the vehicle wiring diagram, especially on intake-side BMW applications where routing and connector indexing must align correctly. Inspect the mating sensor for damage or contamination before connecting the new harness.

Quality Assurance

Standard Ignition supplies electrical connectors for service and repair applications, and S2858 is built to the listed connector specifications for fitment-focused replacement work. Confirm vehicle year, model, and sensor location against the application list before ordering.
