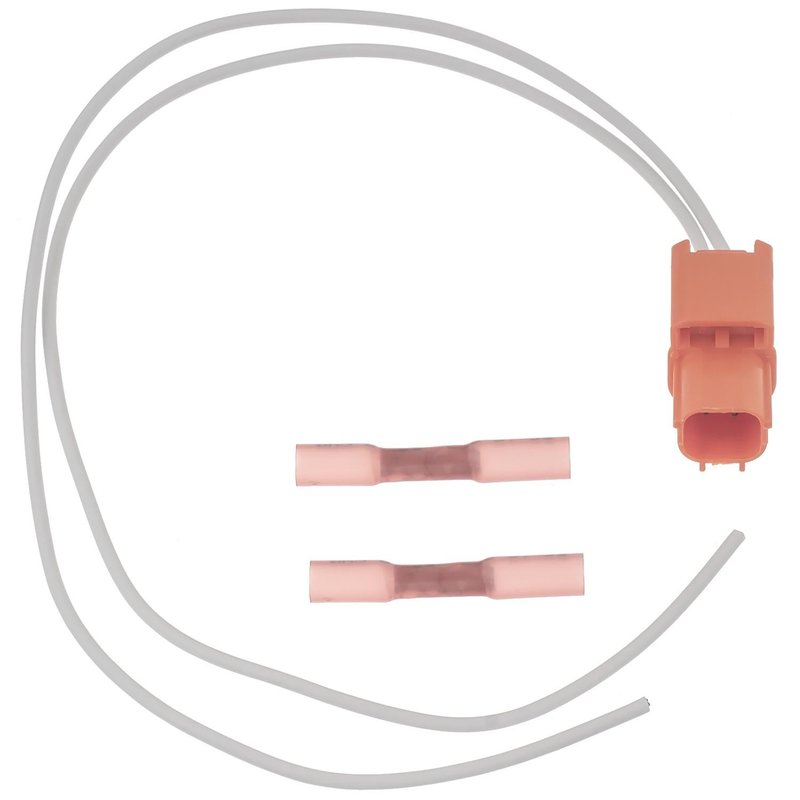

Standard Ignition S2932 ABS Wheel Speed Sensor Connector
| Brand | Standard Ignition S2932 |
|---|---|
| Position | Rear Right, Rear, Front, Front Left, Front Right, and Rear Left |
| Bend Angle (Deg.) | 0 |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Square |
| Gauge | 18 ga. |
| Harness Length - cm | 32 |
| Harness Length - inches | 13" |
| Housing Length (in) | 1 1/4 |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| Water Resistant | No |
| Weatherproof Sealed | Yes |
| Wire Gauge (ga) | 18 |
| Wire Quantity | 2 |
| Fits | Acura and Honda · 51 vehicles |
Weatherproof sealed. Helps keep the connector protected from the elements.
Square connector. A compact shape for a clean, secure electrical connection.
2 blade terminals. Built with male terminals for a reliable sensor connection.
Cross-references Standard Ignition S2932, CONB11417 and EC2832 for the same application. See all 4.
ABS Wheel Speed Sensor Connector for Honda and Acura
Standard Ignition S2932 is an ABS wheel speed sensor connector built for direct electrical repair at the wheel speed sensor circuit. It features a square female connector housing with 18-gauge, 2-wire construction and a weatherproof sealed design for secure connection integrity.
Use this connector when servicing ABS sensor wiring on select Honda and Acura applications, including Honda Ridgeline, Honda Element, Honda Odyssey, Honda S2000, Honda Accord, Honda CR-V, Honda Fit, Acura TL, and Acura TSX.
- Female connector with square housing for ABS wheel speed sensor circuits
- 18 ga. wire with 2 blade terminals and 2-wire layout
- Weatherproof sealed connector design
- 13 in. harness length for repair routing
- Standard Ignition S2932 replacement connector for select Honda and Acura vehicles
Detailed Product Overview
Standard Ignition S2932 is an ABS wheel speed sensor connector designed for electrical repair where the original connector has failed, corroded, or lost terminal contact. The 1 1/4 in. housing length, 0-degree bend angle, and square connector shape support a straightforward replacement on the vehicle harness side. This part cross-references CONB11417 and EC2832 for the same application.
Fitment includes 2006-2014 Honda Ridgeline, front left; 2003-2011 Honda Element, rear; 2005-2010 Honda Odyssey, front; 2006-2009 Honda S2000, rear; 2004-2008 Acura TL, N/A; 2004-2008 Acura TSX, rear right; 2007-2008 Honda Fit, front; 2007 Honda Accord, rear; 2003-2006 Honda Accord, front; 2003-2006 Honda CR-V, rear; 2006 Honda Fit, front right; and 2002 Honda CR-V, rear left.
Common Problems This Part Can Address
- Broken or cracked ABS sensor connector housing
- Intermittent wheel speed sensor signal loss
- Corroded or loose terminal contact at the sensor plug
- ABS warning light caused by damaged connector wiring
- Harness-side connector damage during brake or suspension service
Installation Notes and Tips
Match the connector shape, terminal style, and wire gauge to the original harness before installation. Verify the vehicle position listed for your application, such as front left, rear right, or rear, and confirm the ABS sensor connector routing before final connection. Because this is a weatherproof sealed connector, ensure the mating surfaces and terminals are clean and fully seated for proper engagement.
Quality Assurance
Standard Ignition supplies replacement electrical components for automotive repair, and S2932 is built to meet the connector specifications listed above for the confirmed Honda and Acura applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Honda | Ridgeline | — | — | Front Left | — |
| 2013 | Honda | Ridgeline | — | — | Front Left | — |
| 2012 | Honda | Ridgeline | — | — | Front Left | — |
| 2011 | Honda | Element | — | — | Rear | — |
| 2011 | Honda | Ridgeline | — | — | Front Left | — |
| 2010 | Honda | Element | — | — | Rear | — |
| 2010 | Honda | Odyssey | — | — | Front | — |
| 2010 | Honda | Ridgeline | — | — | Front Left | — |
| 2009 | Honda | Element | — | — | Rear | — |
| 2009 | Honda | Odyssey | — | — | Front | — |
| 2009 | Honda | Ridgeline | — | — | Front Left | — |
| 2009 | Honda | S2000 | — | — | Rear | — |
| 2008 | Acura | TL | — | — | N/A | — |
| 2008 | Acura | TSX | — | — | Rear Right | — |
| 2008 | Honda | Element | — | — | Rear | — |
| 2008 | Honda | Fit | — | — | Front | — |
| 2008 | Honda | Odyssey | — | — | Front | — |
| 2008 | Honda | Ridgeline | — | — | Front Left | — |
| 2008 | Honda | S2000 | — | — | Rear | — |
| 2007 | Acura | TL | — | — | N/A | — |
| 2007 | Acura | TSX | — | — | Rear Right | — |
| 2007 | Honda | Accord | — | — | Rear | — |
| 2007 | Honda | Element | — | — | Rear | — |
| 2007 | Honda | Fit | — | — | Front | — |
| 2007 | Honda | Odyssey | — | — | Front | — |
| 2007 | Honda | Ridgeline | — | — | Front Left | — |
| 2007 | Honda | S2000 | — | — | Rear | — |
| 2006 | Acura | TL | — | — | N/A | — |
| 2006 | Acura | TSX | — | — | Rear Right | — |
| 2006 | Honda | Accord | — | — | Front | — |
| 2006 | Honda | CR-V | — | — | Rear | — |
| 2006 | Honda | Element | — | — | Rear | — |
| 2006 | Honda | Fit | 1.5L | L4 | Front Right | — |
| 2006 | Honda | Odyssey | — | — | Front | — |
| 2006 | Honda | Ridgeline | — | — | Front Left | — |
| 2006 | Honda | S2000 | — | — | Rear | — |
| 2005 | Acura | TL | — | — | N/A | — |
| 2005 | Acura | TSX | — | — | Rear Right | — |
| 2005 | Honda | Accord | — | — | Front | — |
| 2005 | Honda | CR-V | — | — | Rear | — |
| 2005 | Honda | Element | — | — | Rear | — |
| 2005 | Honda | Odyssey | — | — | Front | — |
| 2004 | Acura | TL | — | — | N/A | — |
| 2004 | Acura | TSX | — | — | Rear Right | — |
| 2004 | Honda | Accord | — | — | Front | — |
| 2004 | Honda | CR-V | — | — | Rear | — |
| 2004 | Honda | Element | — | — | Rear | — |
| 2003 | Honda | Accord | — | — | Front | — |
| 2003 | Honda | CR-V | — | — | Rear | — |
| 2003 | Honda | Element | — | — | Rear | — |
| 2002 | Honda | CR-V | — | — | Rear Left | — |
