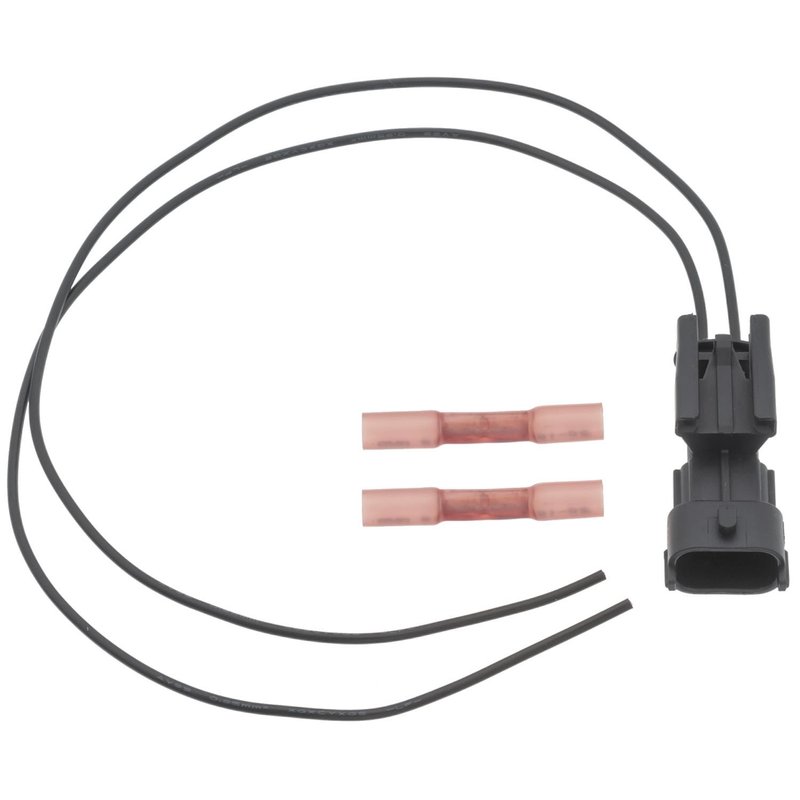

Standard Ignition S2985 ABS Wheel Speed Sensor Connector - Front, Front Left or Front Right

ABS Wheel Speed Sensor Connector for Hyundai

Standard Ignition S2985 is an ABS wheel speed sensor connector built for front-end Hyundai applications that use a rectangular, female connector with a 2-blade terminal layout. It is a direct-fit electrical repair part for restoring a secure connection at the wheel speed sensor on select Hyundai Equus, Genesis, and Genesis Coupe models.

• Female ABS wheel speed sensor connector with rectangular housing
• 2 blade terminals with male terminal gender
• 18 ga. wiring with 350 mm harness length
• 0-degree bend angle for a straight connector layout
• Compatible with front left, front, and front right sensor locations

Vehicle Fitment

• Fits 2011-2016 Hyundai Equus, front left, Multiple Connectors Required
• Fits 2009-2014 Hyundai Genesis, front left, Multiple Connectors Required
• Fits 2012 Hyundai Genesis Coupe, front, Multiple Connectors Required
• Fits 2010-2011 Hyundai Genesis Coupe, front right, Multiple Connectors Required

Detailed Description

Standard Ignition S2985 is an ABS wheel speed sensor connector designed for repair work where the original connector has heat damage, corrosion, broken terminals, or intermittent contact. The 35 cm harness length and straight 0-degree design support clean routing in front suspension and wheel-end wiring repairs. This part cross-references CONB11453 and EC2888 for the same application. Standard Ignition S2985 is a practical replacement choice for Hyundai Equus, Hyundai Genesis, and Hyundai Genesis Coupe front sensor connector service.

Common Repair Uses

• Restores ABS wheel speed sensor signal loss caused by damaged connector terminals
• Addresses warning lights triggered by poor electrical contact at the wheel-end harness
• Replaces cracked or heat-affected connector housings
• Helps correct intermittent ABS communication at the front left, front, or front right sensor location
• Supports repair of corroded or broken sensor pigtail connections

Installation Notes and Tips

Verify connector shape, terminal count, and harness routing before installation. Match the vehicle side and position exactly to the original repair location, especially on Hyundai Equus and Genesis applications that note multiple connectors required. Inspect the mating sensor connector and wiring for corrosion or damaged terminals before completing the repair.

Quality Assurance

Standard Ignition is a recognized name in automotive electrical replacement parts, and S2985 is built to match the connector style and terminal configuration used in the listed Hyundai applications.
