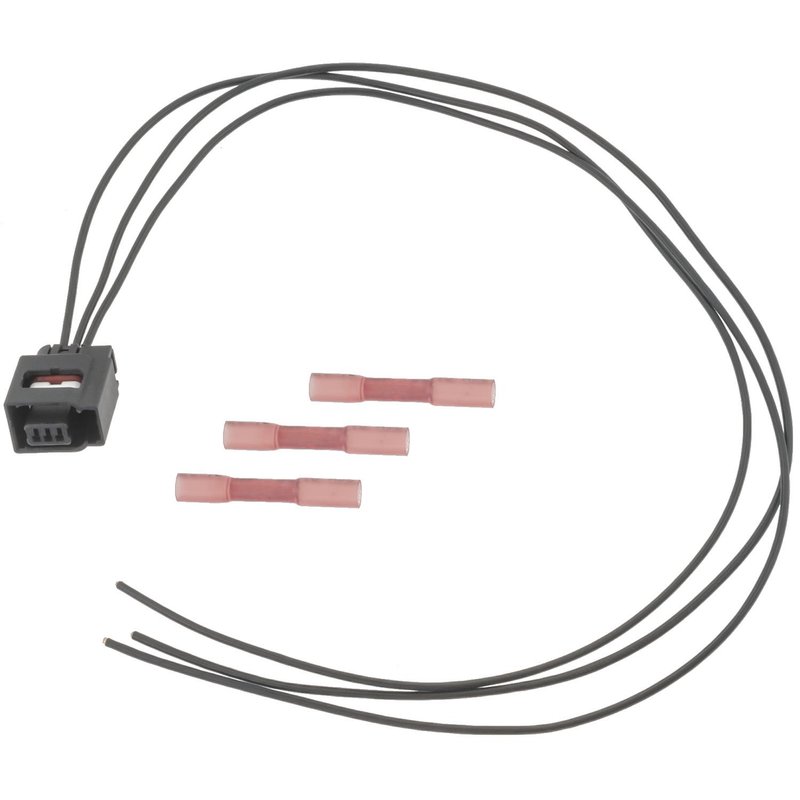

Standard Ignition S2992 Manifold Absolute Pressure Sensor Connector

Manifold Absolute Pressure Sensor Connector for Ford Super Duty

Standard Ignition S2992 is a manifold absolute pressure sensor connector built for direct electrical repair on select Ford trucks. It uses a rectangular connector body with a male housing, female blade terminals, and a 3-wire layout to restore a secure connection at the MAP sensor.

Compatible With 2011-2019 Ford F-250 Super Duty and 2011-2019 Ford F-350 Super Duty applications, this connector is a practical choice when the original MAP sensor plug is damaged, loose, or corroded. The Standard Ignition S2992 is built with an 18-gauge harness and a 17.5-inch harness length for service replacement work.

Key Features

• Manifold Absolute Pressure Sensor Connector for electrical repair
• Rectangular connector shape with 1 connector interface
• Male housing with female blade terminals
• 3-terminal, 3-wire configuration
• 18 ga. harness construction
• 17.5-inch harness length for routing and splice repair
• 0-degree bend angle for straight-line installation
• Compatible With 2011-2019 Ford F-250 Super Duty and Ford F-350 Super Duty

Product Details

Standard Ignition S2992 is intended for MAP sensor connector replacement where the original connector has heat damage, broken locking features, terminal wear, or wiring deterioration. The rectangular housing and blade-terminal design support a secure electrical interface at the sensor connection point. This part cross-references ACDelco EC2895 for the same application.

Common Repair Uses

• Broken or cracked MAP sensor connector housing
• Intermittent sensor signal caused by loose terminal contact
• Corrosion at the connector terminals
• Heat-related wiring damage near the sensor
• Fault codes related to manifold pressure sensor circuit issues

Installation Notes and Tips

Verify connector shape, terminal count, and wire layout against the original MAP sensor plug before installation. Match the harness routing to avoid strain at the connection point, and inspect the mating sensor terminals for damage or contamination before completing the repair. Confirm application on 2011-2019 Ford F-250 Super Duty and 2011-2019 Ford F-350 Super Duty models before service.

Quality Assurance

Standard Ignition is a recognized aftermarket electrical parts brand with coverage for service replacement applications. Part number S2992 is built for vehicle-specific connector repair on Ford Super Duty trucks.
