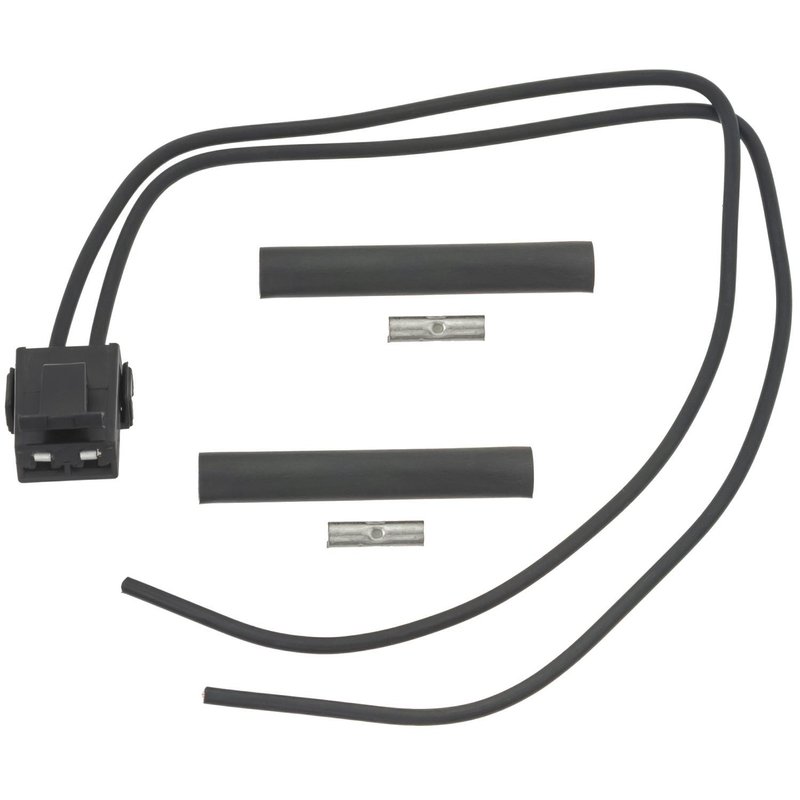

Standard Ignition S3007 Seat Lumbar Motor Connector

Seat Lumbar Motor Connector for Ford and Lincoln

Standard Ignition S3007 is a seat lumbar motor connector built for Ford and Lincoln vehicles that use a rectangular 2-terminal blade-style connection. It is a male connector with 16-gauge wiring and a 300 mm harness length for service replacement on seat lumbar motor circuits.

Use this connector when repairing damaged seat wiring on applications such as Ford F-150, Ford Explorer, and Lincoln Navigator models. Standard Ignition S3007 helps restore a secure electrical connection at the seat lumbar motor without changing the original connector style.

Key Features

• Standard Ignition S3007 seat lumbar motor connector
• Male rectangular connector housing with 0-degree bend angle
• 2-terminal blade design with female terminals
• 16 ga. wire construction with 300 mm harness length
• Direct-fit service part for select Ford and Lincoln seat systems
• Cross-references Ford OE-style part numbers such as 3U2Z14S411ZAA and EC3010 for the same application

Detailed Description

The Standard Ignition S3007 is an electrical connector for seat lumbar motor repair on a wide range of Ford and Lincoln vehicles. It is built with a rectangular housing, male connector body, and two blade terminals to match the original seat motor connection style used in many late-model and earlier platforms. This part number is commonly searched for Ford F-150 seat lumbar motor connector repair, Lincoln Navigator seat connector replacement, and Ford Explorer lumbar motor wiring service.

Compatible vehicle coverage includes 2020-2023 Lincoln Aviator, 2020-2022 Ford Escape, 2020-2022 Ford Explorer, 2010-2022 Ford F-150, 2011-2022 Ford F-250 Super Duty, 2011-2022 Ford F-350 Super Duty, 2015-2022 Ford Mustang, 2021-2022 Ford Mustang Mach-E, 2020-2022 Ford Ranger, 2020-2022 Lincoln Corsair, 2019-2022 Lincoln Nautilus, and additional Ford and Lincoln models listed in the fitment data. Standard Ignition S3007 is also a fitment match for 2009-2020 Lincoln Navigator and 2013-2019 Ford Fusion applications.

Common Repair Uses

• Broken or heat-damaged seat lumbar motor connector housing
• Intermittent lumbar support operation caused by poor terminal contact
• Corroded or loose seat wiring connection at the motor
• Service replacement after connector damage during seat repair
• Electrical fault tracing in Ford and Lincoln seat lumbar circuits

Installation Notes and Tips

Match the connector shape, terminal style, and wire gauge to the original seat lumbar motor harness before installation. Verify terminal orientation and pin alignment on the vehicle side connector, then inspect the seat wiring for damage, corrosion, or overheated insulation before reconnecting. This part is used on Ford F-150, Ford Explorer, and Lincoln Navigator seat systems, so confirm the exact application by year and model before service.

Quality Assurance

Standard Ignition supplies electrical service parts for automotive repair applications, and S3007 is built to support OE-style connector replacement on listed Ford and Lincoln vehicles. Always confirm fitment against the vehicle’s original connector configuration before installation.
