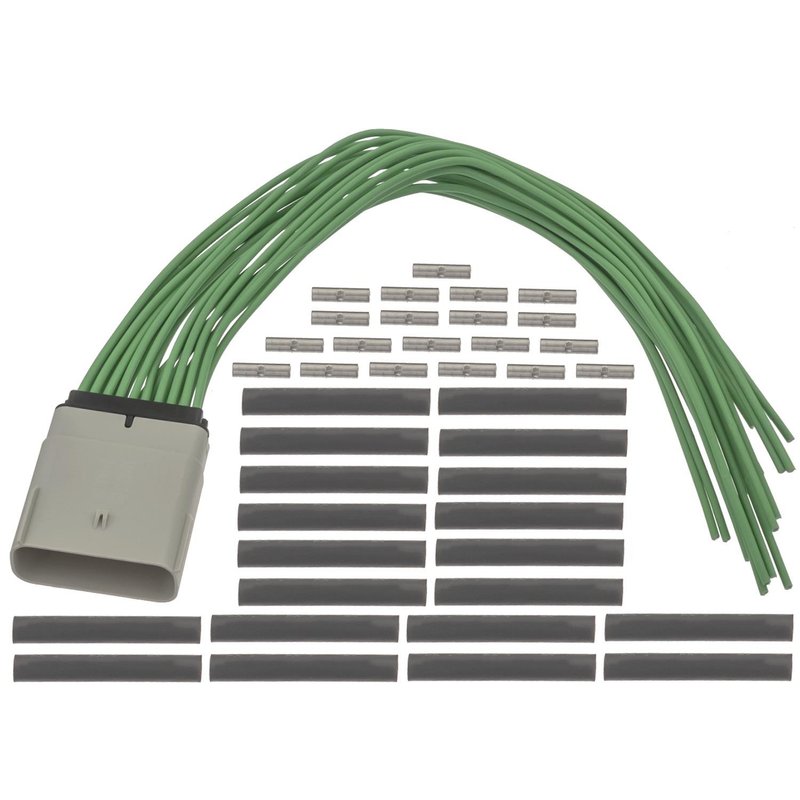

Standard Ignition S3025 Body Wiring Harness Connector

Body Wiring Harness Connector for Ford Super Duty

Standard Ignition S3025 is a body wiring harness connector built for electrical repair work on select Ford Super Duty trucks. It features a female connector housing with a rectangular shape, 16-gauge wire, and a 20-terminal blade-style layout for service on body wiring circuits.

Compatible With 2017 Ford F-250 Super Duty and 2017 Ford F-350 Super Duty, this connector is a direct-fit option for technicians searching for a body wiring harness connector for 2017 Ford F-250 Super Duty or 2017 Ford F-350 Super Duty electrical repair.

• Brand: Standard Ignition
• Part number: S3025
• Female connector design
• Rectangular connector shape
• 16 ga. wire specification
• 20 blade terminals
• 33 cm harness length
• 2 in housing length
• 0-degree bend angle

Detailed Product Overview

The Standard Ignition S3025 body wiring harness connector is built around a single rectangular connector housing with male blade terminals and a female mating side. Its 20-terminal, 20-wire layout supports body harness repair where a damaged connector needs to be replaced without changing the surrounding wiring path. The 33 cm harness length and 2-inch housing length provide a compact service profile for under-dash or body electrical repairs on 2017 Ford F-250 Super Duty and 2017 Ford F-350 Super Duty applications. Search terms such as Ford Super Duty body wiring harness connector, 2017 Ford F-250 Super Duty connector replacement, and S3025 wiring connector are commonly used for this type of repair part.

This part cross-references PT3802 and HU2Z14S411HA for the same application.

Common Repair Uses

• Broken or heat-damaged body harness connector housing
• Corroded or loose terminal connection at the harness interface
• Intermittent electrical contact in body wiring circuits
• Connector damage from vibration, moisture, or prior repair work
• Restoring a secure blade-terminal connection on Super Duty body wiring

Installation Notes and Tips

Verify terminal orientation, wire routing, and connector indexing before installation. Match the existing harness layout to the 20-terminal blade configuration and confirm the connector shell seats fully before reconnecting the circuit. For best results, inspect adjacent wiring for heat damage, corrosion, or stretched conductors before completing the repair.

Quality Assurance

Standard Ignition is a recognized aftermarket electrical parts brand with a focus on service replacement components for automotive repair. The S3025 is specified with defined connector geometry, terminal style, and wire gauge details to support accurate part selection for the listed Ford applications.
