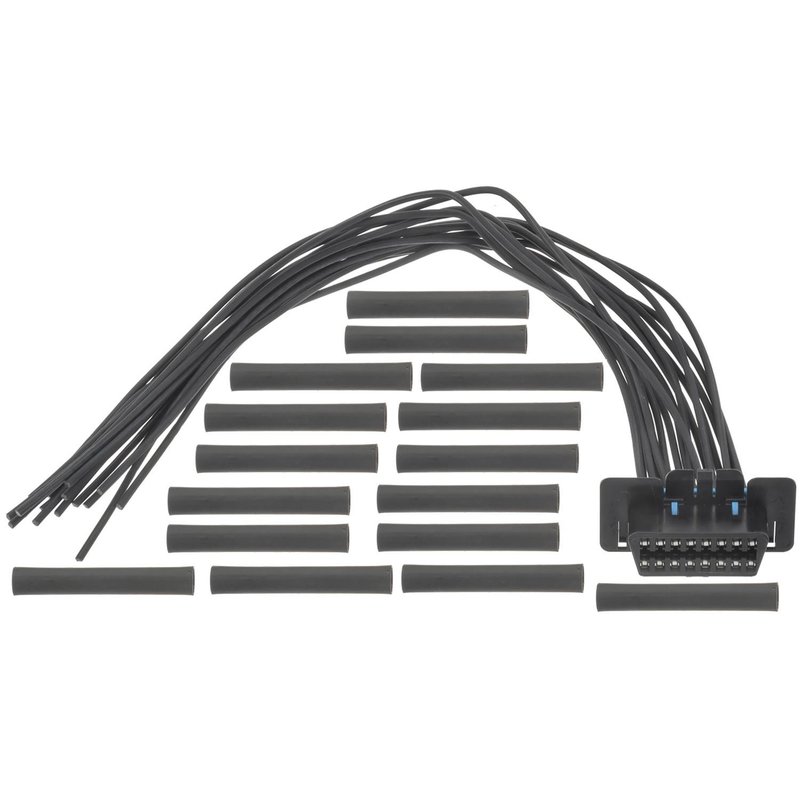

Standard Ignition S3040 Data Link Connector
| Brand | Standard Ignition S3040 |
|---|---|
| Gender | Male |
| Weather Resistant | No |
| Bend Angle (Deg.) | 0 |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Gauge | 18 ga. |
| Harness Length (mm.) | 300 |
| Harness Length - cm | 30 |
| Harness Length - inches | 12 " |
| Housing Length (in) | 3/4 |
| Terminal Gender | Female |
| Terminal Quantity | 16 |
| Terminal Type | Blade |
| Weatherproof Sealed | Yes |
| Wire Gauge (ga) | 18 |
| Wire Quantity | 16 |
| Fits | Ford and Lincoln · 61 vehicles |
Weatherproof sealed. Helps keep the connector protected from moisture and contamination.
16 blade terminals. Provides a secure multi-wire connection in a compact rectangular housing.
18-gauge harness. Uses 18-gauge wire for dependable electrical connectivity.
Cross-references AU2Z14S411BFA, CONB11494 and EC3070 for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Standard Ignition S3040 Data Link Connector
Standard Ignition S3040 is a male data link connector built for vehicle diagnostic and electrical service work. It features a rectangular housing, 16 blade terminals, and 18-gauge wiring with a 12-inch harness length for clean routing in repair applications.
Key Features
- Male data link connector with a rectangular connector shape
- 16 terminal blade design with female terminals
- 18 ga. wire and 18 ga. harness construction
- 12-inch harness length for service replacement routing
- Weatherproof sealed design
- 0-degree bend angle for straight connector alignment
Detailed Description
This Standard Ignition S3040 data link connector is a direct-fit electrical connector component for diagnostic and communication-related repairs. It is commonly used in service work on Ford and Lincoln vehicles, including Ford F-150, Ford Fusion, Ford Escape, Ford Mustang, Lincoln MKZ, and Lincoln MKC applications. The 16-terminal blade layout and sealed housing support secure electrical contact in the vehicle harness.
Use the S3040 when replacing a damaged, worn, or non-functioning diagnostic connector on vehicles such as the 2015-2019 Ford F-150, 2014-2019 Ford Fusion, 2007-2012 Ford Escape, 2007-2013 Ford Mustang, 2013-2020 Lincoln MKZ, and 2015-2019 Lincoln MKC. This part cross-references OE-style numbers such as AU2Z14S411BFA and WPT1176 for the same application.
What It Helps Solve
- Broken or cracked diagnostic connector housing
- Intermittent communication at the data link connection
- Corroded or damaged terminal contact points
- Harness repair needs after connector wear or heat damage
- Poor scan tool connection at the vehicle diagnostic port
Installation Notes and Tips
Verify connector shape, terminal count, and harness routing before installation. Match the male connector style, 16-terminal layout, and 18-gauge wire specification to the original part. Confirm vehicle application by year and model, including Ford EcoSport, Ford Edge, Ford Fiesta, Ford F-250 Super Duty, Ford F-350 Super Duty, Lincoln Continental, Lincoln MKX, and Lincoln MKZ where listed.
Quality Assurance
Standard Ignition supplies electrical service parts for professional repair use, and the S3040 is built with a sealed connector design to support dependable electrical contact in the specified Ford and Lincoln applications.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2020 | Lincoln | MKZ | — |
| 2019 | Ford | EcoSport | — |
| 2019 | Ford | F-150 | — |
| 2019 | Ford | F-250 Super Duty | — |
| 2019 | Ford | F-350 Super Duty | — |
| 2019 | Ford | F-450 Super Duty | — |
| 2019 | Ford | F-550 Super Duty | — |
| 2019 | Ford | Fusion | — |
| 2019 | Lincoln | Continental | — |
| 2019 | Lincoln | MKC | — |
| 2019 | Lincoln | MKZ | — |
| 2018 | Ford | F-150 | — |
| 2018 | Ford | F-250 Super Duty | — |
| 2018 | Ford | F-350 Super Duty | — |
| 2018 | Ford | F-450 Super Duty | — |
| 2018 | Ford | F-550 Super Duty | — |
| 2018 | Ford | Fusion | — |
| 2018 | Lincoln | Continental | — |
| 2018 | Lincoln | MKC | — |
| 2018 | Lincoln | MKZ | — |
| 2017 | Ford | F-150 | — |
| 2017 | Ford | F-250 Super Duty | — |
| 2017 | Ford | F-350 Super Duty | — |
| 2017 | Ford | F-450 Super Duty | — |
| 2017 | Ford | F-550 Super Duty | — |
| 2017 | Ford | Fusion | — |
| 2017 | Lincoln | MKC | — |
| 2017 | Lincoln | MKZ | — |
| 2016 | Ford | F-150 | — |
| 2016 | Ford | Fusion | — |
| 2016 | Lincoln | MKC | — |
| 2016 | Lincoln | MKZ | — |
| 2015 | Ford | Edge | — |
| 2015 | Ford | F-150 | — |
| 2015 | Ford | Fusion | — |
| 2015 | Lincoln | MKC | — |
| 2015 | Lincoln | MKX | — |
| 2015 | Lincoln | MKZ | — |
| 2014 | Ford | Edge | — |
| 2014 | Ford | Fusion | — |
| 2014 | Lincoln | MKX | — |
| 2014 | Lincoln | MKZ | — |
| 2013 | Ford | Edge | — |
| 2013 | Ford | Fiesta | — |
| 2013 | Ford | Mustang | — |
| 2013 | Lincoln | MKX | — |
| 2013 | Lincoln | MKZ | — |
| 2012 | Ford | Escape | — |
| 2012 | Ford | Fiesta | — |
| 2012 | Ford | Mustang | — |
| 2011 | Ford | Escape | — |
| 2011 | Ford | Fiesta | — |
| 2011 | Ford | Mustang | — |
| 2010 | Ford | Escape | — |
| 2010 | Ford | Mustang | — |
| 2009 | Ford | Escape | — |
| 2009 | Ford | Mustang | — |
| 2008 | Ford | Escape | — |
| 2008 | Ford | Mustang | — |
| 2007 | Ford | Escape | — |
| 2007 | Ford | Mustang | — |
