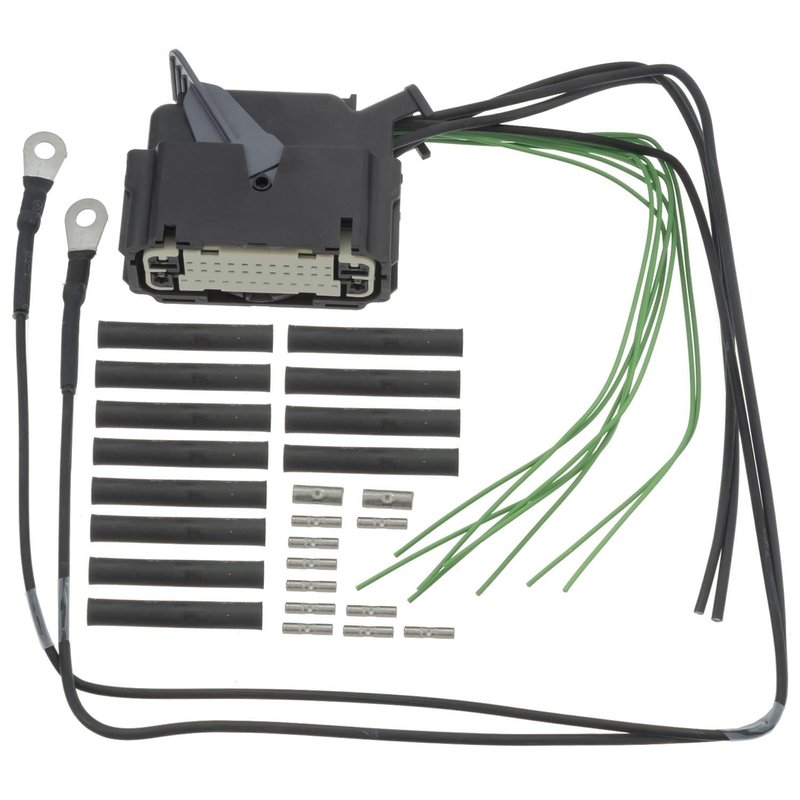

Standard Ignition S3041 ABS Control Module Connector

ABS Control Module Connector for Ford and Lincoln

Standard Ignition S3041 is an ABS control module connector built for specific Ford and Lincoln applications that use a 38-terminal, rectangular male housing with female blade terminals. With a 90-degree bend angle and a 70 cm harness length, it is suited for service work where the original connector has heat damage, broken locking features, or terminal wear.

Key Features

• ABS control module connector for brake electrical repair
• Rectangular male connector housing with 90-degree bend angle
• 38 female blade terminals for the specified module interface
• 20-14 gauge wire range for the harness connection
• 70 cm harness length and 2 1/4 in housing length
• Direct application coverage for Ford F-150, F-250 Super Duty, F-350 Super Duty, Mustang, Expedition, Lincoln Mark LT, and Lincoln Navigator

Detailed Description

Standard Ignition S3041 is an ABS control module connector intended for brake system electrical service on select Ford and Lincoln vehicles. It is built with a rectangular housing, male connector gender, female blade terminals, and a 90-degree bend angle to match the original module connection layout. This part number, S3041, is listed for 2011-2017 applications including the Ford F-150, F-250 Super Duty, F-350 Super Duty, Mustang, Expedition, Lincoln Mark LT, and Lincoln Navigator. This part cross-references OE-style service numbers such as BU2Z14S411BAA and EC3071 for the same application.

What It Helps Resolve

• Broken or heat-damaged ABS module connector housings
• Corroded or loose terminal connections at the ABS control module
• Intermittent ABS warning lights caused by poor electrical contact
• Harness-side connector damage from vibration or service wear
• Brake system communication faults related to connector failure

Installation Notes and Tips

Verify connector shape, terminal count, and harness routing before installation. Match the 38-terminal layout, 20-14 gauge wire range, and 90-degree bend angle to the original ABS module connection on the vehicle. For Ford F-150 and Mustang applications, confirm the connector style against the existing module before service. Proper terminal seating and secure locking are important for stable ABS electrical performance.

Quality Assurance

Standard Ignition is a recognized aftermarket brand for electrical service parts, and S3041 is built to meet the specified connector configuration for the listed Ford and Lincoln applications. Confirm fitment by year, make, and model before ordering.
