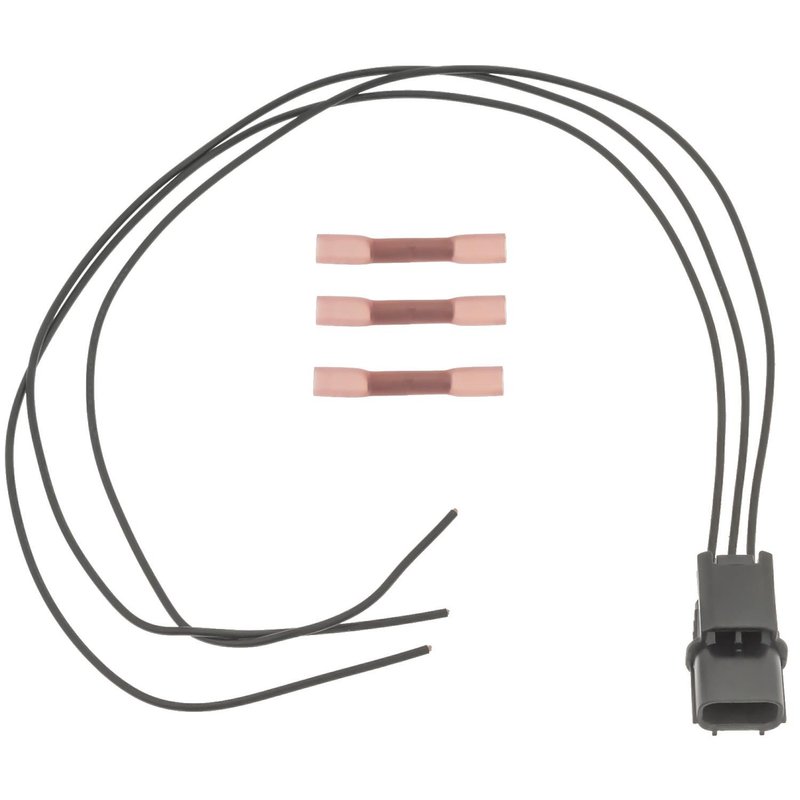

Standard Ignition S3046 A/C Compressor Connector

Honda A/C Compressor Connector S3046

Standard Ignition S3046 is a female A/C compressor connector built for HVAC electrical repair on select Honda applications. It uses a rectangular connector shape with 3 blade terminals, 18-gauge wiring, and a 450 mm harness length for service on the compressor circuit.

Compatible with 2009-2013 Honda Fit, 2010-2014 Honda Insight, and 2011-2015 Honda CR-Z, this connector supports direct repair of damaged or heat-affected compressor wiring. The Standard Ignition S3046 is a practical replacement when the original A/C compressor connector shows terminal wear, broken locking features, or wiring damage.

Key Features

• Female A/C compressor connector for HVAC electrical service
• Rectangular connector housing with 3 blade terminals
• 18 ga. wire construction for compressor circuit repair
• 450 mm harness length for routing flexibility
• 0-degree bend angle for straight-line installation
• Cross-references Monroe Shocks & Struts 172286 and 182286 for the same application

Detailed Description

Standard Ignition S3046 is an A/C compressor connector intended for Honda HVAC electrical repairs where the original connector has failed at the compressor interface. Its female housing, male blade terminals, and 3-wire layout match the electrical connection style used on the listed Honda Fit, Honda Insight, and Honda CR-Z applications. The 1 1/2-inch housing length and rectangular profile help support a clean replacement of the damaged connector section.

Use Standard Ignition S3046 when servicing Honda Fit, Honda Insight, or Honda CR-Z compressor wiring and you need a connector that matches the vehicle-side electrical interface. The 17.5-inch harness length provides added reach for splicing into the existing harness during repair work.

What It Helps Fix

• Broken or heat-damaged A/C compressor connector housing
• Corroded or loose compressor electrical terminals
• Intermittent compressor engagement caused by poor connector contact
• Damaged wiring at the compressor pigtail
• Failed HVAC electrical connection at the compressor

Installation Notes and Tips

Verify connector shape, terminal style, and wire count against the original part before installation. Match the vehicle harness wiring carefully during splice repair, and inspect the compressor-side terminals for heat damage or corrosion before reconnecting. Confirm fitment for 2009-2013 Honda Fit, 2010-2014 Honda Insight, and 2011-2015 Honda CR-Z before service.

Quality Assurance

Standard Ignition is a recognized aftermarket brand for electrical service parts, and S3046 is built to support HVAC connector replacement on the listed Honda applications.
