Standard Ignition S3085 Oil Pressure Switch ConnectorOE Quality 60-Day Returns
Part #: S3085

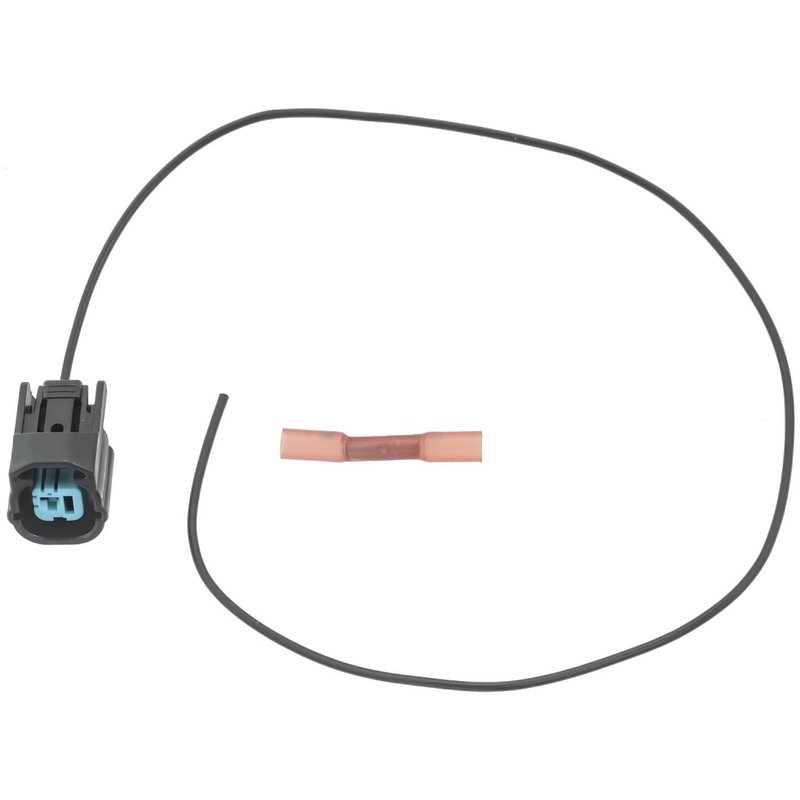

Standard Ignition S3085 Oil Pressure Switch Connector

130 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$26.99Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Acura, Honda, Isuzu, and Saturn, Accord, Civic, CL, CR-V, CSX, Fit, MDX, Oasis, Odyssey, Pilot, Prelude, RDX, Ridgeline, RL, RSX, S2000, TL, TSX, Vue, and ZDX
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Oil Pressure Switch Connector options

Oil Pressure Switch Connector for Honda and Acura

Standard Ignition S3085 is an oil pressure switch connector built for direct replacement on a wide range of Honda and Acura applications. It features a square connector housing, male connector gender, female blade terminal, and a single-wire 18 gauge harness for a clean electrical connection.

Use this connector when servicing oil pressure switch wiring on vehicles such as the Honda Civic, Honda Accord, Acura TL, and Honda Odyssey. Standard Ignition S3085 is also a fitment match for several Acura, Honda, Saturn, and Isuzu models across the listed years.

Key Features

  • Square connector housing with a male connector end
  • Female blade terminal design for oil pressure switch circuits
  • 18 gauge single-wire harness
  • Harness length: 17 inches (43 cm / 430 mm)
  • 1 inch housing length for compact routing
  • 0-degree bend angle for straight connector alignment
  • Fits applications including Honda Civic, Honda Accord, Acura MDX, and Honda Odyssey

Detailed Description

Standard Ignition S3085 is an electrical connector for oil pressure switch service, engineered with a square body and straight 0-degree layout to match factory-style routing. The 17-inch harness provides reach for common engine bay installations, while the 18 gauge wire and blade terminal help maintain a secure connection at the switch. This part number, S3085, is listed across multiple Honda and Acura platforms, including 2003-2011 Honda Civic, 1998-2007 Honda Accord, and 1999-2008 Acura TL.

This part cross-references EC3114 and PT3862 for the same application.

What It Helps Solve

  • Broken or brittle oil pressure switch connector housing
  • Intermittent oil pressure warning light caused by poor terminal contact
  • Damaged wiring at the oil pressure switch pigtail
  • Corrosion or heat damage at the connector end
  • Repair needs on Honda and Acura oil pressure switch circuits

Installation Notes and Tips

  • Verify connector shape, terminal style, and harness length before installation.
  • Match the vehicle application to the listed fitment for your Honda, Acura, Saturn, or Isuzu model.
  • Inspect the oil pressure switch and nearby wiring for heat damage or oil contamination during repair.
  • Confirm a solid terminal fit after connection to help prevent repeat electrical faults.

Quality Assurance

Standard Ignition is a recognized aftermarket brand for electrical service parts, and S3085 is cataloged with OE-style fitment references for the listed applications.

BrandStandard Ignition
Part NumberS3085
Bend Angle (Deg.)0
Connector GenderMale
Connector Quantity1
Connector ShapeSquare
Gauge18 ga.
Harness Length (mm.)430
Harness Length - cm43
Harness Length - inches17
Housing Length (in)1
Terminal GenderFemale
Terminal Quantity1
Terminal TypeBlade
Wire Quantity1

This part fits 130 vehicles. Search below:

YearMakeModelSubmodelTransmissionLitersCylindersPositionNotes
2014AcuraTSXN/ALocated on Oil Pump Housing
2013AcuraMDXN/A
2013AcuraRDXN/A
2013AcuraTSXN/ALocated on Oil Pump Housing
2013AcuraZDXN/A
2012AcuraMDXN/A
2012AcuraRLN/A
2012AcuraTSXN/ALocated on Oil Pump Housing
2012AcuraZDXN/A
2011AcuraCSXN/A
2011AcuraMDXN/A
2011AcuraRDXN/A
2011AcuraRLN/A
2011AcuraTSXN/ALocated on Oil Pump Housing
2011AcuraZDXN/A
2011HondaCivicN/A
2010AcuraCSXN/A
2010AcuraMDXN/A
2010AcuraRDXN/A
2010AcuraRLN/A
2010AcuraTSXN/ALocated on Oil Pump Housing
2010AcuraZDXN/A
2010HondaCivicN/A
2010HondaOdysseyEX-LN/A
2009AcuraCSXN/A
2009AcuraMDXN/A
2009AcuraRDXAutomaticN/A
2009AcuraRLN/A
2009HondaCivicN/A
2009HondaOdysseyEX-LN/A
2009HondaS2000N/A
2008AcuraCSXN/A
2008AcuraMDXAutomaticN/A
2008AcuraRDXAutomaticN/A
2008AcuraRLAutomaticN/A
2008AcuraTLN/A
2008HondaCivicN/A
2008HondaFitN/A
2008HondaOdysseyEX-LN/A
2008HondaPilot3.5LV6N/A
2008HondaRidgeline3.5LV6N/A
2008HondaS20002.2LL4N/A
2007AcuraCSXN/A
2007AcuraMDXAutomaticN/A
2007AcuraRDXAutomaticN/A
2007AcuraRLAutomaticN/A
2007AcuraTLN/A
2007HondaAccord3.0LV6N/A
2007HondaCivicN/A
2007HondaFitN/A
2007HondaOdyssey3.5LV6N/A
2007HondaPilot3.5LV6N/A
2007HondaRidgeline3.5LV6N/A
2007HondaS20002.2LL4N/A
2007SaturnVue3.5LV6N/A
2006AcuraCSXN/A
2006AcuraMDXAutomaticN/A
2006AcuraRLAutomaticN/A
2006AcuraRSXType-SN/A
2006AcuraTLAutomaticN/A
2006HondaAccord3.0LV6N/A
2006HondaCivicN/A
2006HondaOdyssey3.5LV6N/A
2006HondaPilot3.5LV6N/A
2006HondaRidgeline3.5LV6N/A
2006HondaS20002.2LL4N/A
2006SaturnVue3.5LV6N/A
2005AcuraMDXAutomaticN/A
2005AcuraRLAutomaticN/A
2005AcuraRSXType-SN/A
2005AcuraTLAutomaticN/A
2005HondaAccord3.0LV6N/A
2005HondaCivic1.3LL4N/A
2005HondaOdyssey3.5LV6N/A
2005HondaPilot3.5LV6N/A
2005HondaS20002.2LL4N/A
2005SaturnVue3.5LV6N/A
2004AcuraMDXAutomaticN/A
2004AcuraRSXType-SN/A
2004AcuraTLAutomaticN/A
2004HondaAccord3.0LV6N/A
2004HondaCivic1.3LL4N/A
2004HondaOdyssey3.5LV6N/A
2004HondaPilot3.5LV6N/A
2004HondaS20002.2LL4N/A
2004SaturnVue3.5LV6N/A
2003AcuraCLAutomaticN/A
2003AcuraMDXAutomaticN/A
2003AcuraRSXType-SN/A
2003AcuraTLAutomaticN/A
2003HondaAccord3.0LV6N/A
2003HondaCivic1.3LL4N/A
2003HondaOdyssey3.5LV6N/A
2003HondaPilot3.5LV6N/A
2003HondaS20002.0LL4N/A
2002AcuraCLAutomaticN/A
2002AcuraMDXAutomaticN/A
2002AcuraRSXType-SN/A
2002AcuraTLAutomaticN/A
2002HondaAccord2.3LL4N/A
2002HondaOdyssey3.5LV6N/A
2002HondaS20002.0LL4N/A
2001AcuraCLAutomaticN/A
2001AcuraMDXAutomaticN/A
2001AcuraTLAutomaticN/A
2001HondaAccord2.3LL4N/A
2001HondaCR-VN/A
2001HondaOdyssey3.5LV6N/A
2001HondaPreludeN/A
2001HondaS20002.0LL4N/A
2000AcuraTLAutomaticN/A
2000HondaAccord2.3LL4N/A
2000HondaCR-VN/A
2000HondaOdyssey3.5LV6N/A
2000HondaPreludeN/A
2000HondaS20002.0LL4N/A
1999AcuraCLN/A
1999AcuraTLAutomaticN/A
1999HondaAccord2.3LL4N/A
1999HondaCR-VN/A
1999HondaOdyssey3.5LV6N/A
1999HondaPreludeN/A
1999IsuzuOasis2.3LL4N/A
1998AcuraCLAutomaticN/A
1998HondaAccord2.3LL4N/A
1998HondaOdyssey2.3LL4N/A
1998HondaPreludeN/A
1998IsuzuOasis2.3LL4N/A
1997AcuraCLAutomatic3.0LV6N/A
1997HondaPreludeN/A

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

CONB11526EC3114PT3862S3085

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
