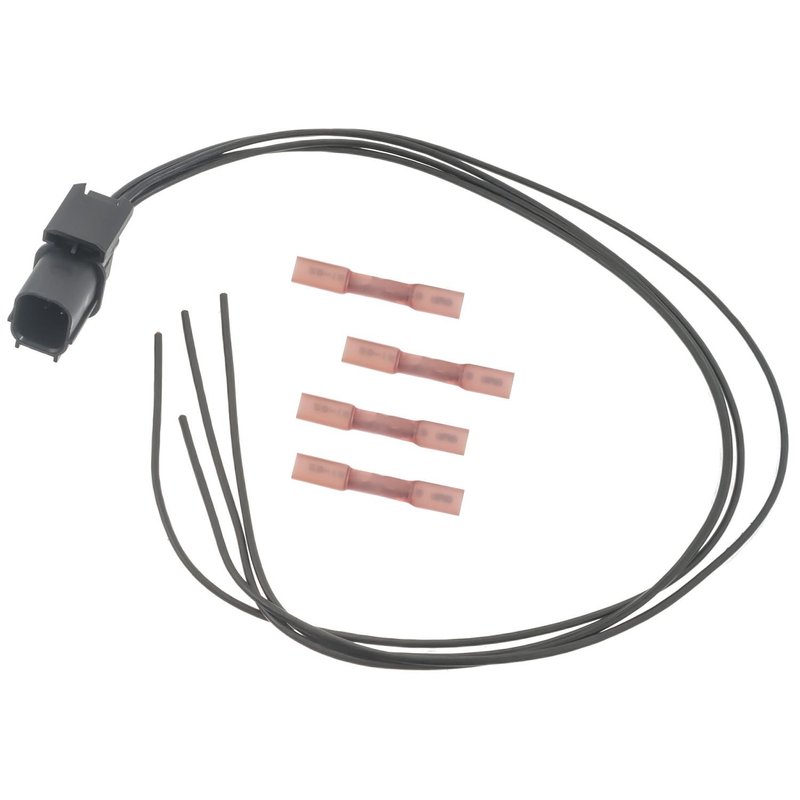

Standard Ignition S3087 Oxygen Sensor Connector
| Brand | Standard Ignition S3087 |
|---|---|
| Gender | Female |
| Bend Angle (Deg.) | 0 |
| Connector Quantity | 1 |
| Connector Shape | Square |
| Gauge | 18 |
| Harness Length (mm.) | 450 |
| Harness Length - cm | 45 |
| Harness Length - inches | 18 |
| Housing Length (in) | 1 1/2 |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Wire Quantity | 4 |
| Fits | Acura and Honda · 71 vehicles |
Direct replacement. Connector matches the original style for straightforward installation.
Square connector shape. Helps ensure a secure, consistent electrical connection.
4-blade terminals. Built with four terminals for reliable sensor wiring.
Cross-references Standard Ignition S3087, CONB11528 and EC3116 for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Oxygen Sensor Connector for Honda and Acura
Standard Ignition S3087 is a female oxygen sensor connector built for direct electrical repair on select Honda and Acura applications. It features a square connector housing, 4 blade terminals, and an 18-inch harness length for service on downstream and front downstream sensor circuits.
Key Features
- Female oxygen sensor connector with a square housing
- 4 male blade terminals and 4-wire construction
- 18-inch harness length for repair routing
- 18-gauge wire for sensor circuit service
- 0-degree bend angle for straight-line connection
- Standard Ignition S3087 for OE-style connector replacement
Detailed Description
Use Standard Ignition S3087 when replacing a damaged or heat-affected oxygen sensor connector on Honda Civic, Honda CR-V, Honda Accord, Acura MDX, and other listed applications. This connector is specified with a female housing, square shape, and 4 terminal blade layout to match the sensor-side electrical interface used on many downstream and front downstream oxygen sensor circuits. The 18-inch harness length provides added reach for splice-in repair work, while the 18-gauge wire supports a clean electrical connection in the sensor harness.
This part cross-references Monroe Shocks & Struts (e.g., CONB11528, EC3116) for the same application. Standard Ignition S3087 is also referenced by part number S3087 for ordering and catalog lookup.
Used For Common Repair Issues
- Broken or brittle oxygen sensor connector housing
- Corroded or heat-damaged sensor terminals
- Intermittent oxygen sensor signal loss
- Fault codes caused by poor connector contact
- Harness repair after exhaust or underbody damage
Installation Notes and Tips
Match the connector shape, terminal count, and terminal gender before splicing into the vehicle harness. Confirm the application location, including downstream or front downstream sensor placement, on the specific Honda or Acura model. Use proper electrical repair practices for sealed, low-resistance connections and verify sensor circuit continuity after installation.
Quality Assurance
Standard Ignition S3087 is cataloged as an electrical connector replacement for listed Honda and Acura fitments, including 2006-2016 Honda Civic, 2007-2011 Honda CR-V, 2008-2013 Honda Accord, 2014-2016 Acura MDX, and related applications. The part number is S3087.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Notes |
|---|---|---|---|---|---|---|
| 2016 | Acura | ILX | 2.4L | L4 | — | Downstream Sensor |
| 2016 | Acura | MDX | — | — | — | Front; Downstream Sensor |
| 2016 | Acura | RLX | — | — | — | Front; Downstream Sensor |
| 2016 | Honda | Fit | 1.5L | L4 | — | Downstream Sensor |
| 2016 | Honda | HR-V | 1.8L | L4 | — | — |
| 2016 | Honda | Pilot | 3.5L | V6 | — | Front; Downstream Sensor |
| 2015 | Acura | ILX | 2.0L | L4 | — | Downstream Sensor |
| 2015 | Acura | MDX | — | — | — | Front; Downstream Sensor |
| 2015 | Acura | RDX | — | — | — | Front; Downstream Sensor |
| 2015 | Acura | RLX | 3.5L | V6 | — | Front; Downstream Sensor |
| 2015 | Acura | TLX | 2.4L | L4 | — | Downstream Sensor |
| 2015 | Honda | Accord | 2.0L | L4 | — | — |
| 2015 | Honda | Civic | 1.8L | L4 | CNG | — |
| 2015 | Honda | CR-V | 2.4L | L4 | — | Downstream Sensor |
| 2015 | Honda | CR-Z | 1.5L | L4 | — | Downstream Sensor |
| 2015 | Honda | Crosstour | 3.5L | V6 | — | Front; Downstream Sensor |
| 2015 | Honda | Fit | 1.5L | L4 | — | Downstream Sensor |
| 2014 | Acura | ILX | 2.0L | L4 | — | — |
| 2014 | Acura | MDX | — | — | — | Front; Downstream Sensor |
| 2014 | Acura | RDX | — | — | — | Front; Downstream Sensor |
| 2014 | Acura | RLX | 3.5L | V6 | GAS | Front; Downstream Sensor |
| 2014 | Acura | TSX | 2.4L | L4 | — | Downstream Sensor |
| 2014 | Honda | Accord | 2.0L | L4 | — | — |
| 2014 | Honda | Civic | 1.8L | L4 | CNG | — |
| 2014 | Honda | CR-V | 2.4L | L4 | — | Downstream Sensor |
| 2014 | Honda | CR-Z | 1.5L | L4 | — | Downstream Sensor |
| 2014 | Honda | Crosstour | 3.5L | V6 | — | Front; Downstream Sensor |
| 2014 | Honda | Fit | 1.5L | L4 | — | Downstream Sensor |
| 2014 | Honda | Insight | 1.3L | L4 | — | Downstream Sensor |
| 2013 | Acura | ILX | 2.0L | L4 | — | — |
| 2013 | Acura | RDX | 3.5L | V6 | — | Front; Downstream Sensor |
| 2013 | Acura | TSX | 2.4L | L4 | — | Downstream Sensor |
| 2013 | Honda | Accord | 2.4L | L4 | — | Downstream Sensor |
| 2013 | Honda | Civic | 1.8L | L4 | CNG | — |
| 2013 | Honda | CR-V | 2.4L | L4 | — | Downstream Sensor |
| 2013 | Honda | CR-Z | 1.5L | L4 | — | Downstream Sensor |
| 2013 | Honda | Crosstour | 3.5L | V6 | — | Front; Downstream Sensor |
| 2013 | Honda | Fit | 1.5L | L4 | — | Downstream Sensor |
| 2013 | Honda | Insight | 1.3L | L4 | — | Downstream Sensor |
| 2012 | Acura | TSX | 2.4L | L4 | — | Downstream Sensor |
| 2012 | Honda | Accord | 2.4L | L4 | — | Downstream Sensor |
| 2012 | Honda | Civic | 1.8L | L4 | CNG | — |
| 2012 | Honda | CR-V | 2.4L | L4 | — | Downstream Sensor |
| 2012 | Honda | CR-Z | 1.5L | L4 | — | Downstream Sensor |
| 2012 | Honda | Crosstour | 2.4L | L4 | — | Downstream Sensor |
| 2012 | Honda | Fit | 1.5L | L4 | — | Downstream Sensor |
| 2012 | Honda | Insight | 1.3L | L4 | — | Downstream Sensor |
| 2011 | Acura | TSX | 2.4L | L4 | — | Downstream Sensor |
| 2011 | Honda | Accord | 2.4L | L4 | — | Downstream Sensor |
| 2011 | Honda | Civic | 1.3L | L4 | — | — |
| 2011 | Honda | CR-V | 2.4L | L4 | — | — |
| 2011 | Honda | CR-Z | 1.5L | L4 | — | Downstream Sensor |
| 2011 | Honda | Fit | 1.5L | L4 | — | Downstream Sensor |
| 2011 | Honda | Insight | 1.3L | L4 | — | Downstream Sensor |
| 2010 | Acura | TSX | 2.4L | L4 | — | Downstream Sensor |
| 2010 | Honda | Accord | 2.4L | L4 | — | Downstream Sensor |
| 2010 | Honda | Civic | 1.3L | L4 | — | — |
| 2010 | Honda | CR-V | 2.4L | L4 | — | — |
| 2010 | Honda | Fit | 1.5L | L4 | — | Downstream Sensor |
| 2010 | Honda | Insight | 1.3L | L4 | — | Downstream Sensor |
| 2009 | Acura | TSX | 2.4L | L4 | — | Downstream Sensor |
| 2009 | Honda | Accord | 2.4L | L4 | — | Downstream Sensor |
| 2009 | Honda | Civic | 1.3L | L4 | — | — |
| 2009 | Honda | CR-V | 2.4L | L4 | — | — |
| 2009 | Honda | Fit | 1.5L | L4 | — | Downstream Sensor |
| 2008 | Honda | Accord | 2.4L | L4 | — | Downstream Sensor |
| 2008 | Honda | Civic | 1.3L | L4 | — | — |
| 2008 | Honda | CR-V | 2.4L | L4 | — | — |
| 2007 | Honda | Civic | 1.3L | L4 | — | — |
| 2007 | Honda | CR-V | 2.4L | L4 | — | — |
| 2006 | Honda | Civic | 1.3L | L4 | — | — |
