Standard Ignition S3152 Idle Air Control Valve Connector

Idle Air Control Valve Connector Overview

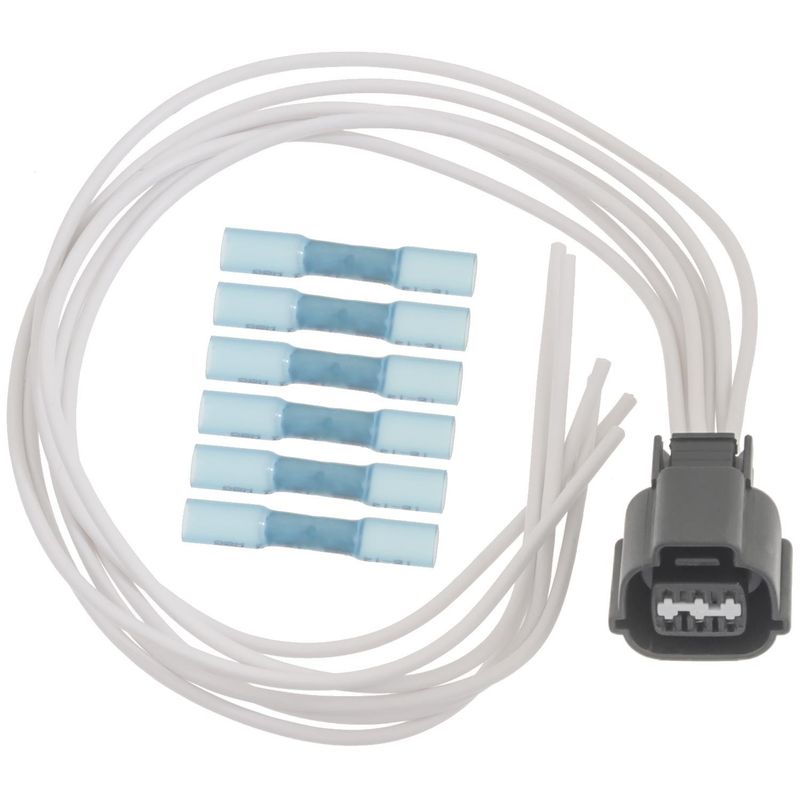

Standard Ignition S3152 is an idle air control valve connector for air and fuel delivery electrical repair. It is built with a rectangular male connector body, six female blade terminals, and a 14.5-inch harness for service on a wide range of applications.

Key Features

• Rectangular connector design with a male housing and six female blade terminals.
• 14.5-inch harness length provides added reach for repair routing.
• 18-gauge wire construction for electrical connection service.
• Direct replacement connector for idle air control valve wiring repair.
• Standard Ignition S3152 fitment covers multiple Mitsubishi, Suzuki, Chrysler, and Dodge applications.

Detailed Description

Standard Ignition S3152 is an idle air control valve connector used in electrical repair for air and fuel delivery systems. The connector features a rectangular shape, one connector interface, six blade-style terminals, and a 360 mm harness length. This configuration supports replacement of damaged or worn connector ends on vehicles such as the Mitsubishi Lancer, Mitsubishi Eclipse, Mitsubishi Galant, Mitsubishi Montero, Mitsubishi Montero Sport, Mitsubishi Outlander, Suzuki XL-7, Suzuki Grand Vitara, Chrysler Sebring, and Dodge Stratus. The S3152 part number is also referenced by CONB10882, EC3177, and PT3927 for the same application.

What It Is Used For

• Repairing a damaged idle air control valve electrical connector.
• Restoring a secure terminal connection in the engine wiring harness.
• Replacing cracked, corroded, or heat-damaged connector ends.
• Addressing intermittent idle control electrical faults caused by poor contact.
• Servicing connector wear on Mitsubishi, Suzuki, Chrysler, and Dodge applications.

Installation Notes and Tips

Match the connector shape, terminal count, and wire gauge before installation. Verify harness routing and terminal orientation against the original connector to ensure proper electrical contact. Confirm fitment by year, make, and model, since S3152 is used across multiple vehicle platforms including Mitsubishi Lancer and Mitsubishi Eclipse applications.

Quality Assurance

Standard Ignition supplies replacement electrical components for automotive service applications. Part number S3152 is listed with confirmed interchange references for the same application, including CONB10882, EC3177, and PT3927.
