Standard Ignition S3206 Fuel Pressure Sensor Connector

Fuel Pressure Sensor Connector for Ford Super Duty

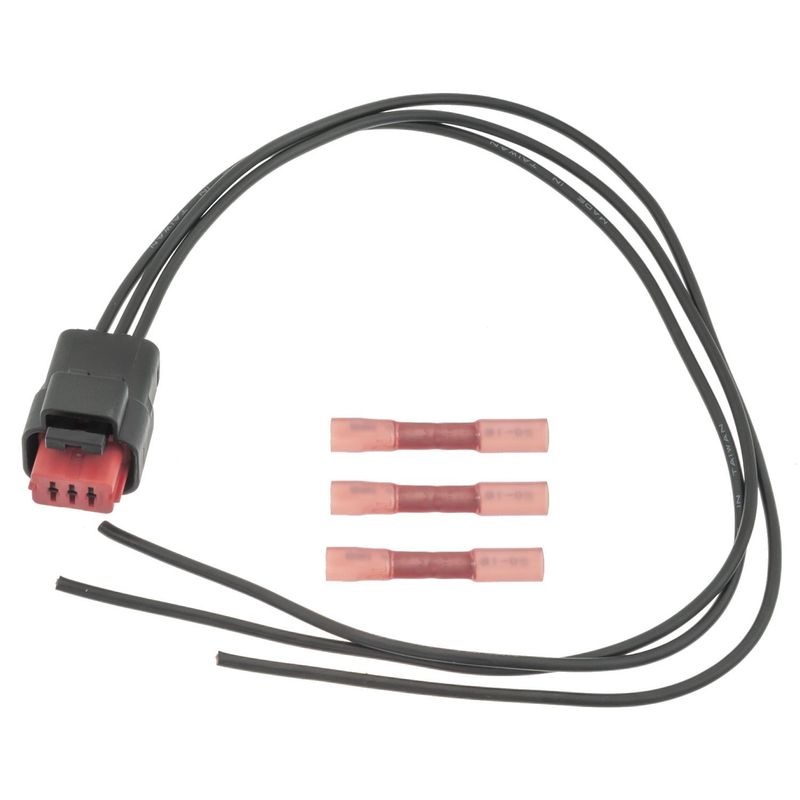

Standard Ignition S3206 is a fuel pressure sensor connector built for direct service on select Ford Super Duty diesel applications. It uses a 3-terminal blade design with a male connector housing and a 380 mm harness length for routing in the engine bay.

Fits 2008-2010 Ford F-250 Super Duty and Fits 2008-2010 Ford F-350 Super Duty. This Standard Ignition S3206 connector is a practical replacement when the original fuel pressure sensor connector is damaged, heat-affected, or no longer making a secure electrical connection.

Key Features

• Fuel pressure sensor connector for air and fuel delivery service
• Male connector with rectangular housing shape
• 3 blade terminals with female terminal ends
• 18-gauge wiring for sensor circuit repair
• 380 mm harness length for routing flexibility
• 0-degree bend angle for straight-line installation
• Compatible with 2008-2010 Ford F-250 Super Duty and Ford F-350 Super Duty

Detailed Description

Standard Ignition S3206 is a replacement fuel pressure sensor connector designed around the electrical and packaging requirements of the listed Ford Super Duty trucks. The rectangular connector body, 3-wire layout, and straight 0-degree configuration support a clean repair where the original connector has worn terminals, broken locking features, or damaged wiring near the sensor. The 15-inch harness length provides added reach for service routing, while the 18-gauge wire size supports the sensor circuit connection.

This part cross-references Monroe Shocks & Struts (e.g., CONB10917, EC3231) for the same application. For buyers searching for a Ford F-250 Super Duty fuel pressure sensor connector or a Ford F-350 Super Duty fuel pressure sensor connector, Standard Ignition S3206 is the direct-fit service part to compare against the original connector layout.

Common Repair Uses

• Broken or cracked fuel pressure sensor connector housing
• Corroded or heat-damaged terminals at the sensor plug
• Intermittent fuel pressure sensor signal caused by poor pin contact
• Wiring repair after connector insulation failure near the engine
• Replacement of a loose or unreliable sensor electrical connection

Installation Notes and Tips

Verify connector shape, terminal count, and harness routing before installation. Match the 3-terminal blade layout to the original sensor connection and confirm the harness length is sufficient for the vehicle’s routing path. Inspect the mating sensor terminals for wear or contamination before connecting the new pigtail.

For best results, splice and seal the harness using proper automotive electrical repair practices, then secure the wiring away from heat and abrasion points in the engine compartment.

Quality Assurance

Standard Ignition is a recognized name in automotive electrical replacement parts, and S3206 is built to meet the fitment and connector specifications listed for the covered Ford Super Duty applications.
