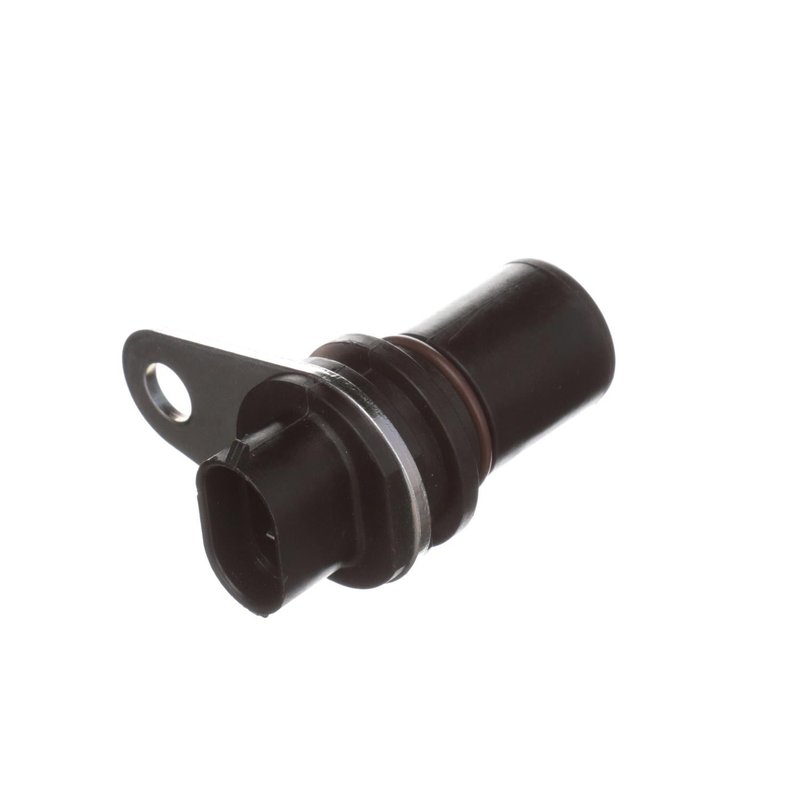

Standard Ignition SC134 Manual Transmission Output Shaft Speed Sensor

Overview of Standard Ignition SC134 Output Shaft Speed Sensor

The Standard Ignition SC134 Manual Transmission Output Shaft Speed Sensor is designed for reliable performance in select Chevrolet, Geo, GMC, and Oldsmobile vehicles. This sensor plays a critical role in monitoring transmission output shaft speed to ensure smooth shifting and accurate vehicle speed readings.

• Connector Gender: Female
• Connector Quantity: 1
• Connector Shape: Oval
• Connector Type: Plug in
• Mounting Location: Transmission mount
• Terminal Gender: Male
• Terminal Quantity: 2
• Terminal Type: Blade

Detailed Product Description

The SC134 output shaft speed sensor from Standard Ignition features a female oval plug-in connector with a single connection point, designed for secure and precise electrical contact. It mounts directly on the transmission housing, providing accurate speed data from the manual transmission output shaft. The sensor terminals are male blade types, with two terminals ensuring reliable signal transmission. This sensor is engineered to meet OEM specifications for vehicles including Chevrolet Astro, Blazer, S10, GMC Jimmy, Sonoma, and Oldsmobile models such as the Bravada and V1500 Suburban.

Common Applications and Issues Addressed

• Helps prevent erratic shifting by providing accurate speed data
• Resolves transmission speedometer malfunctions
• Eliminates transmission slip or hesitation caused by faulty sensor signals
• Corrects transmission control module errors related to output shaft speed
• Improves overall drivability in manual transmission vehicles

Installation Notes and Tips

Installation requires access to the transmission mount location where the sensor plugs in securely via its female oval connector. Ensure the male blade terminals are clean and free of corrosion before installation. Proper torque on mounting bolts is essential to avoid sensor damage or inaccurate readings. It is recommended to verify sensor alignment and connector engagement to prevent intermittent faults.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards, ensuring dependable performance and durability. The SC134 sensor undergoes rigorous testing for fit, form, and function. Warranty coverage details should be confirmed with the product documentation or distributor, typically including limited warranty protection against defects in materials and workmanship.
