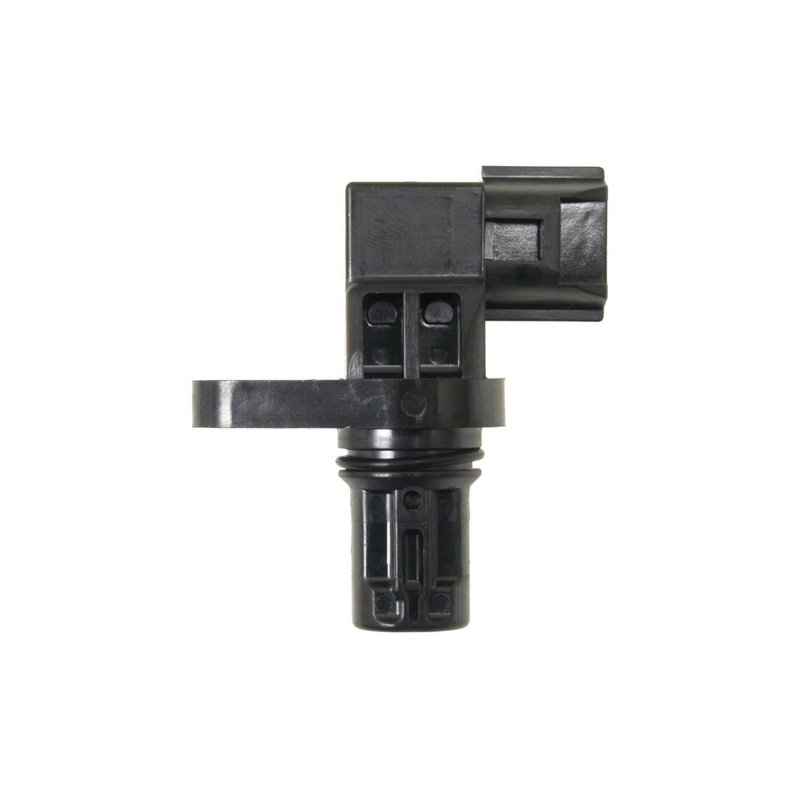

Standard Ignition SC225 Automatic Transmission Output Shaft Speed Sensor - Rear
| Brand | Standard Ignition SC225 |
|---|---|
| Position | Rear |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Connector Type | Plug In |
| Mounting Location | Trans Mount |
| Terminal Gender | Male |
| Terminal Type | Pin |
| Fits | Mitsubishi, Chrysler, and Dodge · 42 vehicles |
Plug-in design. Female rectangular connector with a single 3-pin terminal layout.
Transmission sensor. Measures output shaft speed for precise transmission control.
Quality-controlled manufacturing. Built under complete process control from components to finished product.
Cross-references Delphi SS11870, 2VSS0154 and 5S5405 for the same application. See all 11.
Automatic Transmission Output Shaft Speed Sensor
Standard Ignition SC225 is an automatic transmission output shaft speed sensor for select Mitsubishi, Chrysler, and Dodge applications. It provides the transmission speed signal used by the vehicle control system to monitor output shaft rotation and support proper shifting and drivability.
Built with a female rectangular plug-in connector and a 3-pin male terminal layout, this trans mount sensor is specified for direct replacement service on listed vehicles, including Mitsubishi Eclipse, Galant, Endeavor, and Outlander applications.
Key Features
- Automatic transmission output shaft speed sensor for transmission speed signal input
- Female connector with rectangular plug-in design
- 3-pin male terminal configuration
- Trans mount installation location
- Direct-fit service part for listed Mitsubishi, Chrysler, and Dodge applications
- Standard Ignition SC225 part number for catalog and service matching
Application Details
Standard Ignition SC225 is used in automatic transmission systems where the output shaft speed signal is required for transmission control and related drivability functions. It fits 2001-2012 Mitsubishi Galant, 2003-2006 Mitsubishi Outlander, 2004, 2005, 2006-2008, 2010-2011 Mitsubishi Endeavor, 2010-2012 Mitsubishi Eclipse, 2011 Mitsubishi Eclipse, rear, 2012 Mitsubishi Eclipse, output side, 2002-2005 Chrysler Sebring, and 2002-2005 Dodge Stratus. This part cross-references Delphi SS11870 for the same application.
What It Helps Address
- Erratic or missing transmission speed signal
- Harsh, delayed, or inconsistent shifting
- Transmission-related warning lights or fault codes
- Speedometer or drivability concerns tied to output shaft speed input
- Replacement needs for a worn or failed output shaft speed sensor
Installation Notes
Verify the connector style, terminal count, and mounting location before installation. This sensor uses a female rectangular plug-in connector with 3 male pins and mounts at the transmission. Confirm the vehicle year, make, model, and position against the listed fitment, especially for Mitsubishi Eclipse rear and output-side applications.
Quality Assurance
Standard Ignition manufactures this sensor with in-process quality control from component sourcing through finished product. The brand states its sensor coverage is broad across domestic and import applications, with an emphasis on precision performance, durability, and long service life.
| Year | Make | Model | Body Type | # Doors | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2012 | Mitsubishi | Eclipse | — | — | — | 2.4L | L4 | N/A | Output Side |
| 2012 | Mitsubishi | Galant | — | — | — | 2.4L | L4 | N/A | — |
| 2011 | Mitsubishi | Eclipse | — | — | — | 2.4L | L4 | Rear | — |
| 2011 | Mitsubishi | Endeavor | — | — | — | — | — | N/A | — |
| 2011 | Mitsubishi | Galant | — | — | — | — | — | N/A | — |
| 2010 | Mitsubishi | Eclipse | — | — | Automatic | 2.4L | L4 | N/A | Output Sensor |
| 2010 | Mitsubishi | Endeavor | — | — | — | — | — | N/A | — |
| 2010 | Mitsubishi | Galant | — | — | — | — | — | N/A | — |
| 2010 | Mitsubishi | Galant | — | — | — | 2.4L | L4 | N/A | — |
| 2009 | Mitsubishi | Galant | — | — | — | 2.4L | L4 | N/A | — |
| 2008 | Mitsubishi | Endeavor | — | — | — | — | — | N/A | — |
| 2008 | Mitsubishi | Galant | — | — | — | — | — | N/A | — |
| 2008 | Mitsubishi | Galant | — | — | — | 2.4L | L4 | N/A | — |
| 2007 | Mitsubishi | Endeavor | — | — | — | — | — | N/A | — |
| 2007 | Mitsubishi | Galant | — | — | — | — | — | N/A | — |
| 2007 | Mitsubishi | Galant | — | — | — | 2.4L | L4 | N/A | — |
| 2006 | Mitsubishi | Endeavor | — | — | — | — | — | N/A | — |
| 2006 | Mitsubishi | Galant | — | — | — | — | — | N/A | — |
| 2006 | Mitsubishi | Outlander | — | — | Automatic | 2.4L | L4 | N/A | — |
| 2006 | Mitsubishi | Outlander | — | — | — | — | — | N/A | — |
| 2005 | Chrysler | Sebring | Coupe | — | Automatic | — | — | N/A | — |
| 2005 | Chrysler | Sebring | Coupe | — | — | — | — | N/A | — |
| 2005 | Dodge | Stratus | — | 2 Door | Automatic | — | — | N/A | — |
| 2005 | Mitsubishi | Endeavor | — | — | — | 3.8L | V6 | Rear | — |
| 2005 | Mitsubishi | Galant | — | — | — | — | — | N/A | — |
| 2005 | Mitsubishi | Outlander | — | — | — | — | — | N/A | — |
| 2004 | Chrysler | Sebring | Coupe | — | Automatic | — | — | N/A | — |
| 2004 | Dodge | Stratus | — | 2 Door | Automatic | — | — | N/A | — |
| 2004 | Mitsubishi | Endeavor | — | — | — | 3.8L | V6 | N/A | — |
| 2004 | Mitsubishi | Galant | — | — | — | — | — | N/A | — |
| 2004 | Mitsubishi | Outlander | — | — | — | — | — | N/A | — |
| 2004 | Mitsubishi | Outlander | — | — | — | 2.4L | L4 | Rear | — |
| 2003 | Chrysler | Sebring | Coupe | — | Automatic | — | — | N/A | — |
| 2003 | Dodge | Stratus | — | 2 Door | Automatic | — | — | N/A | — |
| 2003 | Mitsubishi | Galant | — | — | — | 2.4L | L4 | N/A | — |
| 2003 | Mitsubishi | Outlander | — | — | — | — | — | N/A | — |
| 2003 | Mitsubishi | Outlander | — | — | — | 2.4L | L4 | Rear | — |
| 2002 | Chrysler | Sebring | Coupe | — | Automatic | — | — | N/A | — |
| 2002 | Dodge | Stratus | — | 2 Door | Automatic | — | — | N/A | — |
| 2002 | Mitsubishi | Galant | — | — | — | — | — | N/A | — |
| 2001 | Mitsubishi | Galant | — | — | — | — | — | N/A | — |
| 2001 | Mitsubishi | Galant | — | — | — | 2.4L | L4 | N/A | — |
