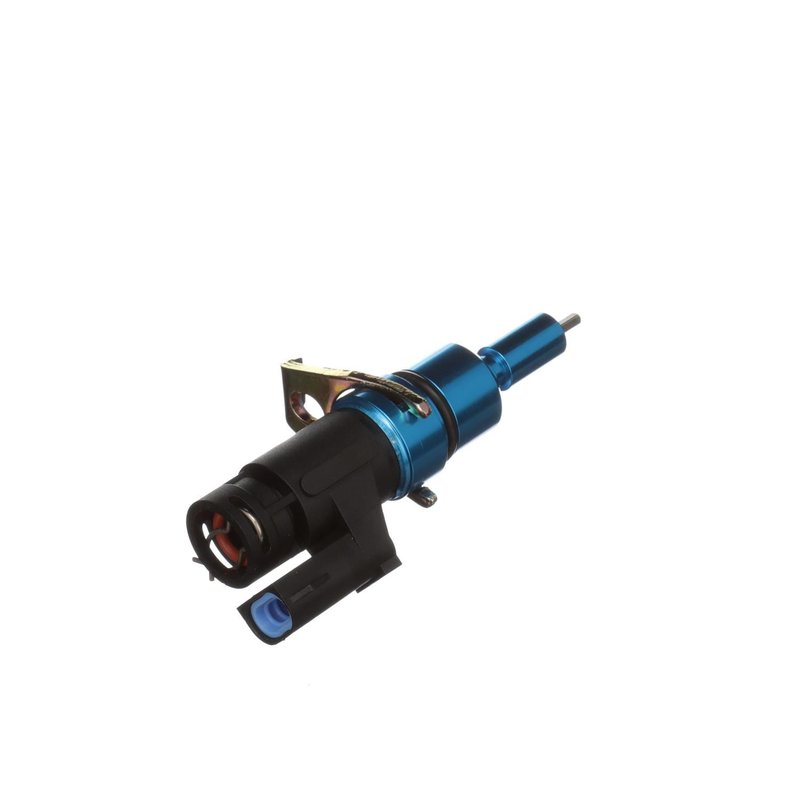

Standard Ignition SC46 Manual Transmission Output Shaft Speed Sensor

Reliable Manual Transmission Output Shaft Speed Sensor

The Standard Ignition SC46 Manual Transmission Output Shaft Speed Sensor is engineered for precise speed monitoring in select Ford, Lincoln, and Mercury vehicles. Designed with a female oval plug-in connector and male pin terminals, this sensor ensures accurate data transmission for optimal transmission performance.

• Connector Gender: Female with oval plug-in design
• Single connector quantity for streamlined installation
• Terminal Type: Male pins, two terminals for secure electrical contact
• Mounting Location: Transmission mount for direct output shaft speed measurement
• Compatible with manual transmissions on various Ford, Lincoln, and Mercury models

Detailed Sensor Description and Attributes

The SC46 sensor from Standard Ignition features a female oval-shaped connector designed to plug directly into the vehicle’s wiring harness, providing a reliable electrical connection. It includes two male pin terminals that facilitate accurate signal transmission from the transmission output shaft. Mounted directly on the transmission, this sensor monitors the rotational speed of the output shaft, which is critical for transmission control modules to manage shifting and engine performance effectively.

This sensor is compatible with a range of Ford, Lincoln, and Mercury vehicles including the Ford Mustang, Explorer, F-150, Bronco, and Lincoln Continental, among others. The SC46 part number ensures you receive the correct sensor designed specifically for manual transmission applications in these models.

Common Applications and Problem Resolution

• Helps resolve erratic or inaccurate speedometer readings
• Addresses transmission shifting issues related to faulty speed data
• Prevents transmission control module errors caused by sensor failure
• Eliminates transmission slip or hesitation due to incorrect output shaft speed input
• Supports proper engine and transmission synchronization for manual transmissions

Installation Notes and Tips

Installation of the SC46 sensor requires access to the transmission mount location. Ensure the vehicle is safely lifted and supported before beginning work. Disconnect the battery to prevent electrical shorts. Carefully unplug the existing sensor’s female oval connector and remove the sensor from the transmission mount. Install the new sensor by aligning the male pin terminals and securing it firmly in place. Reconnect the wiring harness and verify proper connection before lowering the vehicle.

Quality Assurance and Warranty Information

Standard Ignition manufactures the SC46 sensor to meet or exceed OEM specifications for durability and performance. Each sensor undergoes rigorous testing to ensure reliable operation under normal driving conditions. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in materials and workmanship to provide confidence in your replacement part.
