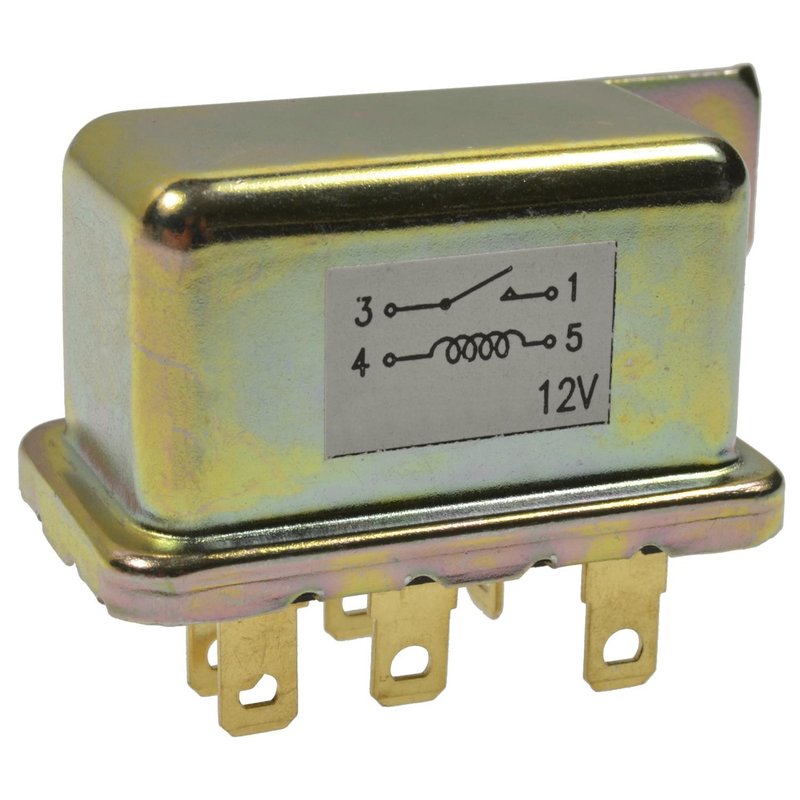

Standard Ignition SR-116 Starter Relay

Reliable Starter Relay for Chrysler, Dodge, Jeep, and More

The Standard Ignition SR-116 starter relay is designed to provide dependable electrical performance for a range of vehicles including Chrysler, Dodge, Isuzu, Jeep, and Plymouth models. Engineered to meet OEM specifications, this 12-volt relay ensures consistent starting system operation.

• Amperage rating: 25 amps for efficient current handling
• Rectangular connector shape for secure fitment
• Includes mounting bracket(s) for easy installation
• Six male blade terminals for reliable electrical connections
• Designed for 12-volt electrical systems
• Continuous duty: No, suitable for intermittent use in starting circuits

Technical Details and Compatibility

The SR-116 starter relay features a rectangular connector shape and six male blade terminals, providing a secure and stable connection within the vehicle's electrical system. With a 25 amp amperage rating, it supports the electrical load required during engine starting. This relay is compatible with a variety of Chrysler, Dodge, Isuzu, Jeep, and Plymouth vehicles, including popular models such as the Dodge Caravan, Jeep Cherokee, Plymouth Voyager, Chrysler LeBaron, and Dodge Dakota. The included mounting bracket simplifies installation and ensures the relay remains firmly in place under normal driving conditions.

Applications and Problem Resolution

This starter relay is used to control the electrical current to the starter motor, enabling reliable engine starts. It is commonly replaced to address issues such as:

• Intermittent or no engine cranking
• Starter motor not engaging despite battery power
• Electrical relay failure causing starting system faults
• Corroded or damaged relay terminals affecting connectivity
• Relay mounting instability leading to electrical interruptions

Installation Notes and Tips

When installing the Standard Ignition SR-116 starter relay, ensure the vehicle’s battery is disconnected to prevent electrical shorts. Verify the relay’s rectangular connector aligns correctly with the vehicle’s wiring harness. Use the included mounting bracket to secure the relay firmly in place. Inspect the blade terminals for corrosion or damage before installation to maintain optimal electrical contact. Refer to the vehicle’s service manual for specific relay location and wiring diagrams.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards, ensuring reliable performance and durability. The SR-116 starter relay undergoes rigorous quality control testing to verify electrical specifications and fitment accuracy. This part is backed by Standard Ignition’s limited warranty, providing coverage against defects in material and workmanship under normal use conditions.
