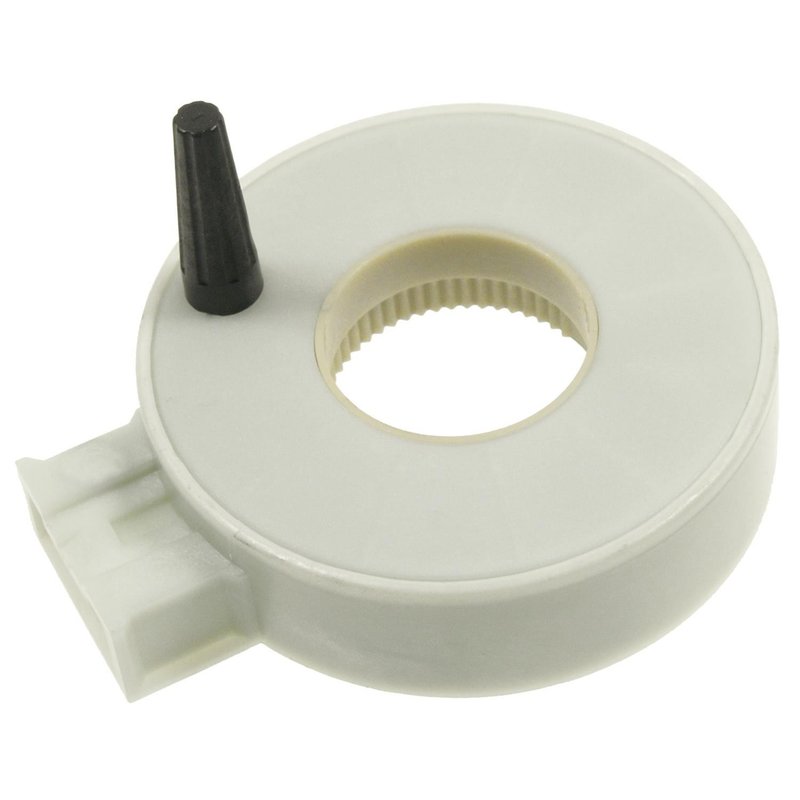

Standard Ignition SWS20 Steering Angle Sensor

Overview of Standard Ignition Steering Angle Sensor SWS20

The Standard Ignition Steering Angle Sensor SWS20 is designed for precise steering input detection in select Buick, Cadillac, and Chevrolet vehicles. This sensor plays a critical role in vehicle stability and safety systems by accurately measuring the steering wheel position.

• Connector Gender: Female
• Connector Quantity: 1
• Connector Type: Plug in
• Contents: Sensor only
• Terminal Gender: Male
• Terminal Quantity: 4
• Terminal Type: Pins

Detailed Product Description

The SWS20 steering angle sensor from Standard Ignition features a single female plug-in connector with four male pin terminals, ensuring secure and reliable electrical connections. This sensor is engineered to provide accurate steering angle data to the vehicle’s electronic control units, which is essential for systems such as electronic stability control and advanced driver assistance. Compatible with various Buick, Cadillac, and Chevrolet models including the Corvette, DeVille, DTS, Lucerne, STS, and XLR, this sensor meets OEM specifications for fit and function.

Common Applications and Issues Addressed

• Corrects inaccurate steering angle readings that can trigger warning lights
• Resolves stability control system malfunctions related to faulty sensor data
• Eliminates erratic or unresponsive steering feedback in compatible vehicles
• Prevents issues with traction control and anti-lock braking systems
• Supports proper calibration of steering-related safety features

Installation Notes and Tips

• Ensure the vehicle’s battery is disconnected before installation to avoid electrical damage
• Verify connector orientation: the sensor uses a female plug-in connector with four male pin terminals
• Handle the sensor carefully to avoid damaging the pins or connector
• After installation, perform a steering angle sensor calibration using appropriate diagnostic tools
• Consult the vehicle’s service manual for specific torque specifications and installation procedures

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards, ensuring reliable performance and durability. The SWS20 steering angle sensor undergoes rigorous quality control testing to maintain consistent functionality. Warranty coverage details should be confirmed at the time of purchase, as they may vary by distributor or region.
