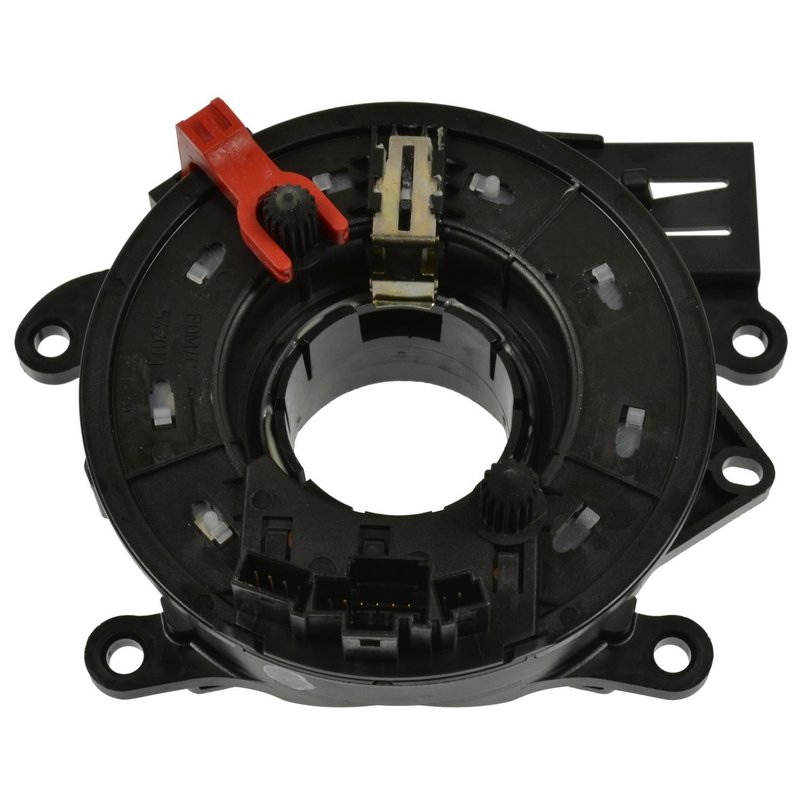

Standard Ignition SWS89 Steering Angle Sensor

Overview of Standard Ignition Steering Angle Sensor SWS89

The Standard Ignition Steering Angle Sensor SWS89 is designed for precise steering input detection in BMW vehicles. Compatible with BMW X3, X5, and Z4 models, this sensor ensures accurate communication between the steering system and vehicle stability controls.

• Connector Gender: Female + Male for versatile connection
• Connector Type: Plug in for straightforward installation
• Terminal Gender: Male with 23 blade terminals
• Terminal Quantity: 23 terminals for reliable signal transmission
• Contents: Includes the steering angle sensor unit

Detailed Product Description

This steering angle sensor from Standard Ignition features a plug-in connector type with both female and male connector genders, allowing for secure and adaptable wiring connections. The sensor includes 23 male blade terminals, which provide a stable electrical interface essential for accurate steering angle measurement. The SWS89 sensor is engineered to meet the electrical and mechanical specifications required by BMW X3, X5, and Z4 models, ensuring compatibility and performance within the vehicle's electronic stability control system.

Applications and Problem Resolution

This steering angle sensor is used to monitor the steering wheel position and rate of turn, feeding critical data to the vehicle’s stability and traction control systems. It helps address issues such as:

• Erratic or unresponsive electronic stability control warnings
• Malfunction indicator lights related to steering or stability systems
• Inaccurate steering input detection affecting vehicle handling
• Fault codes related to steering angle sensor failure
• Intermittent or failed communication between steering components and control modules

Installation Notes and Tips

• Ensure the vehicle battery is disconnected before installation to prevent electrical damage
• Verify connector orientation matches the female and male plug-in design for proper fit
• Handle the sensor carefully to avoid damage to the 23 blade terminals
• After installation, perform a steering angle sensor calibration using appropriate diagnostic tools
• Consult the vehicle’s service manual for torque specifications and sensor alignment procedures

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards for fit, form, and function. The SWS89 steering angle sensor undergoes rigorous testing to ensure durability and reliable performance in BMW X3, X5, and Z4 vehicles. Warranty coverage details should be confirmed at the point of purchase, typically including protection against defects in materials and workmanship.
