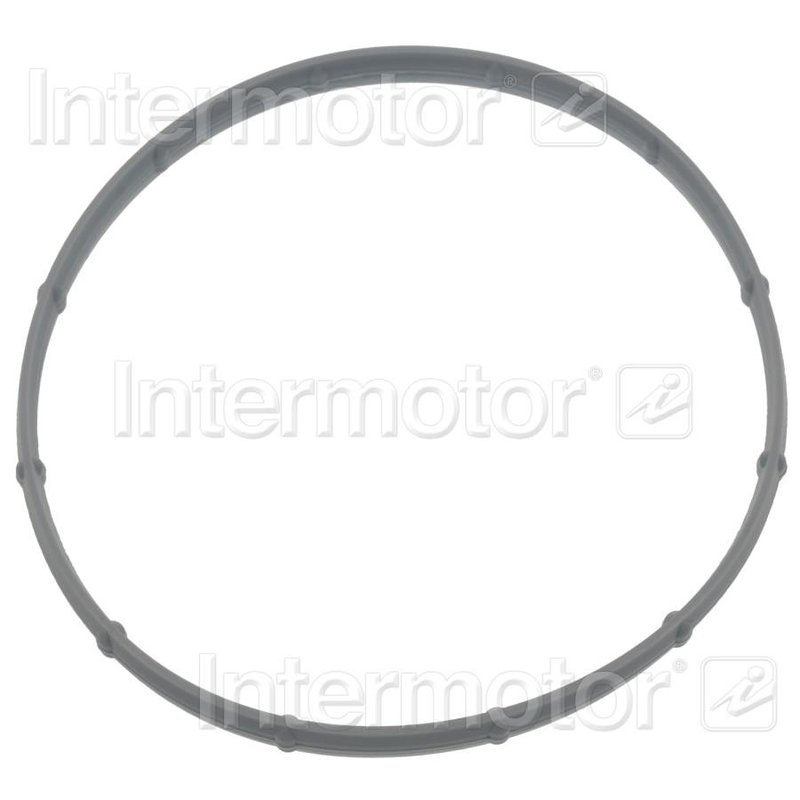

Standard Ignition TBG107 Fuel Injection Throttle Body Mounting Gasket

Overview of Standard Ignition Fuel Injection Throttle Body Gasket

The Standard Ignition TBG107 fuel injection throttle body mounting gasket is designed for reliable sealing in electronic throttle body systems. This gray plastic gasket ensures a precise fit and proper sealing for Chrysler, Dodge, Jeep, and Ram vehicles, including models like the 300, Challenger, Charger, Grand Cherokee, and Ram 1500.

• Color/Finish: Gray plastic material
• Inside Diameter: 3.67 inches (93.3 mm)
• Outside Diameter: 3.83 inches (97.3 mm)
• Thickness: 0.24 inches (6.33 mm)
• Gasket Quantity: 1 included
• Designed for electronic throttle body (TBI) systems
• No EGR gaskets or bolt holes included

Product Details and Specifications

The TBG107 gasket is manufactured from durable plastic, providing a consistent seal between the throttle body and intake manifold. Its dimensions—3.67 inches inside diameter and 3.83 inches outside diameter—are engineered to match the electronic throttle body mounting requirements for select Chrysler, Dodge, Jeep, and Ram vehicles. The 0.24-inch thickness ensures proper spacing and sealing without the need for additional spacers or pintle caps. This gasket is supplied as a single unit and does not include EGR gaskets or bolt holes, reflecting its specific application in throttle body injection systems.

Compatible Vehicles and Applications

This fuel injection throttle body mounting gasket is compatible with a range of vehicles, including:

• Chrysler 300 and Aspen
• Dodge Challenger, Charger, Durango
• Jeep Commander, Grand Cherokee
• Ram 1500, Ram 2500, Ram 3500

It is designed specifically for electronic throttle body injection (TBI) systems, ensuring proper fit and function in these models.

Common Issues Addressed by This Gasket

• Prevents air leaks between throttle body and intake manifold
• Eliminates rough idling caused by improper sealing
• Reduces potential vacuum leaks affecting engine performance
• Helps maintain proper throttle response and fuel delivery
• Prevents contamination and debris ingress at the throttle body mount

Installation Notes and Tips

• Ensure mating surfaces are clean and free of old gasket material before installation
• Verify correct orientation of the gasket to match throttle body and manifold
• Do not reuse old gaskets; always install a new gasket like the TBG107
• Tighten mounting bolts to manufacturer torque specifications to avoid leaks
• Check for any signs of damage or warping on the throttle body mounting surface

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The TBG107 gasket undergoes quality control to ensure consistent dimensions and material integrity. While specific warranty details may vary, Standard Ignition typically offers coverage against defects in material and workmanship, providing confidence in the gasket’s durability and performance.
