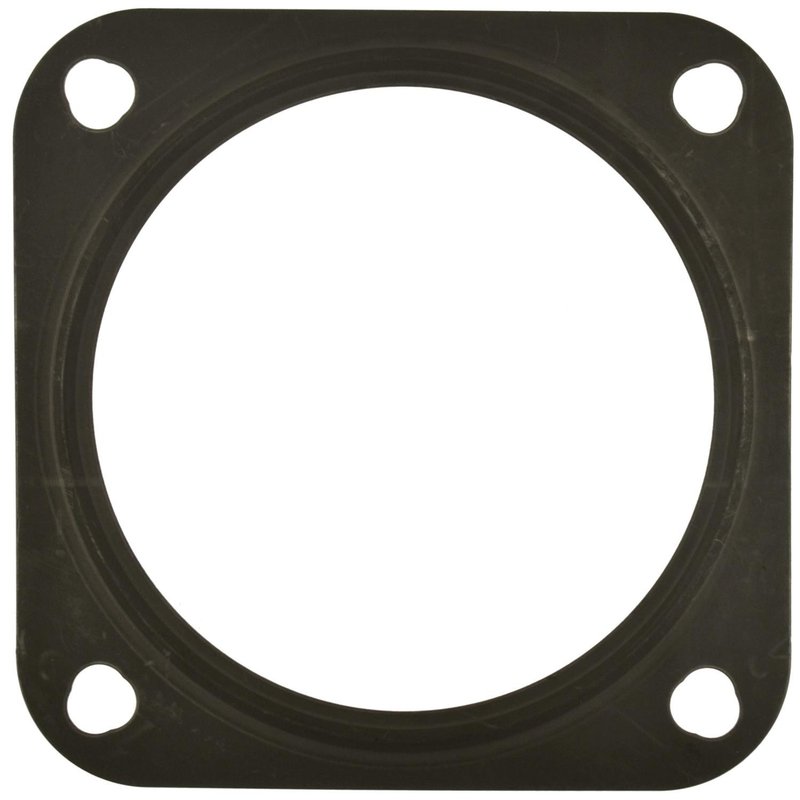

Standard Ignition TBG134 Fuel Injection Throttle Body Mounting Gasket
| Brand | Standard Ignition TBG134 |
|---|---|
| Notes | Electronic Throttle Body Gasket |
| Fits | Volvo · 52 vehicles |
Electronic throttle body gasket. Seals the throttle body mounting surface for a secure, leak-resistant fit.
Steel construction. Provides a durable sealing surface with a black finish.
4-bolt design. Matches a common mounting pattern for straightforward installation.
Cross-references Standard Ignition TBG134, 2-48134 and 800-1094G for the same application. See all 6.
Electronic Throttle Body Gasket for Volvo
Standard Ignition TBG134 is an electronic throttle body gasket built for air and fuel delivery sealing at the throttle body mounting surface. It is a steel gasket with a black finish, a 2.77 in. inside diameter, and a 0.02 in. thickness for a precise seal on supported Volvo applications.
Compatible With 1998-2004 Volvo C70, 1999-2000 Volvo S70, 1998-2007 Volvo V70, 2001-2009 Volvo S60, 2003-2007 Volvo XC70, and 2003-2006 Volvo XC90. Standard Ignition TBG134 is also cross-referenced to 2-48134 for the same application.
Key Features
- Electronic throttle body gasket for TBI system applications
- Steel construction with black finish
- Inside diameter: 2.77 in. / 70.41 mm
- Thickness: 0.02 in. / 0.68 mm
- Four-bolt-hole mounting pattern
- Gasket included; EGR gasket, pintle cap, and spacer to manifold are not included
Detailed Description
Standard Ignition TBG134 is a fuel injection throttle body mounting gasket made for sealing the throttle body to the intake side of the system. Its steel construction and thin profile help maintain a stable mounting interface, while the 4-bolt design matches the listed Volvo fitments. This part is a direct service item for Volvo C70, S70, V70, S60, XC70, and XC90 throttle body maintenance where the original seal has worn, flattened, or been removed during service.
Use Standard Ignition TBG134 when servicing the throttle body on 1998-2009 Volvo applications listed above. The part number TBG134 is the reference to verify when ordering for these vehicles.
What It Helps Address
- Throttle body air leaks at the mounting flange
- Vacuum leaks caused by a deteriorated seal
- Idle instability related to poor throttle body sealing
- Air/fuel delivery issues from a compromised gasket surface
- Service replacement after throttle body removal
Installation Notes and Tips
Clean both mating surfaces before installation and confirm the throttle body flange is flat and free of debris. Match the 4-bolt pattern and verify the gasket orientation against the throttle body opening before tightening fasteners evenly to avoid distortion. Confirm vehicle application by year, make, and model before installation; this part is listed for 1998-2004 Volvo C70, 1999-2000 Volvo S70, 1998-2007 Volvo V70, 2001-2009 Volvo S60, 2003-2007 Volvo XC70, and 2003-2006 Volvo XC90.
Quality Assurance
Standard Ignition supplies service parts for air and fuel delivery systems, and TBG134 is built to match the listed electronic throttle body mounting applications. Verify fitment against the vehicle and part number before installation.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Volvo | S60 | — | — | N/A | — |
| 2008 | Volvo | S60 | 2.4L | L5 | N/A | — |
| 2008 | Volvo | S60 | 2.5L | L5 | N/A | — |
| 2007 | Volvo | S60 | 2.4L | L5 | N/A | — |
| 2007 | Volvo | S60 | 2.5L | L5 | N/A | — |
| 2007 | Volvo | V70 | — | — | N/A | — |
| 2007 | Volvo | XC70 | — | — | N/A | — |
| 2006 | Volvo | S60 | 2.4L | L5 | N/A | — |
| 2006 | Volvo | S60 | 2.5L | L5 | N/A | — |
| 2006 | Volvo | V70 | — | — | N/A | — |
| 2006 | Volvo | XC70 | — | — | N/A | — |
| 2006 | Volvo | XC90 | — | — | N/A | — |
| 2005 | Volvo | S60 | 2.3L | L5 | N/A | — |
| 2005 | Volvo | S60 | 2.4L | L5 | N/A | — |
| 2005 | Volvo | S60 | 2.5L | L5 | N/A | — |
| 2005 | Volvo | V70 | — | — | N/A | — |
| 2005 | Volvo | XC70 | — | — | N/A | — |
| 2005 | Volvo | XC90 | — | — | N/A | — |
| 2004 | Volvo | C70 | — | — | N/A | — |
| 2004 | Volvo | S60 | 2.0L | L5 | N/A | — |
| 2004 | Volvo | S60 | 2.3L | L5 | N/A | — |
| 2004 | Volvo | S60 | 2.4L | L5 | N/A | — |
| 2004 | Volvo | S60 | 2.5L | L5 | N/A | — |
| 2004 | Volvo | V70 | — | — | N/A | — |
| 2004 | Volvo | XC70 | — | — | N/A | — |
| 2004 | Volvo | XC90 | — | — | N/A | — |
| 2003 | Volvo | C70 | — | — | N/A | — |
| 2003 | Volvo | S60 | 2.0L | L5 | N/A | — |
| 2003 | Volvo | S60 | 2.3L | L5 | N/A | — |
| 2003 | Volvo | S60 | 2.4L | L5 | N/A | — |
| 2003 | Volvo | S60 | 2.5L | L5 | N/A | — |
| 2003 | Volvo | V70 | — | — | N/A | — |
| 2003 | Volvo | XC70 | — | — | N/A | — |
| 2003 | Volvo | XC90 | — | — | N/A | — |
| 2002 | Volvo | C70 | — | — | N/A | — |
| 2002 | Volvo | S60 | 2.0L | L5 | N/A | — |
| 2002 | Volvo | S60 | 2.3L | L5 | N/A | — |
| 2002 | Volvo | S60 | 2.4L | L5 | N/A | — |
| 2002 | Volvo | V70 | — | — | N/A | — |
| 2001 | Volvo | C70 | — | — | N/A | — |
| 2001 | Volvo | S60 | 2.0L | L5 | N/A | — |
| 2001 | Volvo | S60 | 2.3L | L5 | N/A | — |
| 2001 | Volvo | S60 | 2.4L | L5 | N/A | — |
| 2001 | Volvo | V70 | — | — | N/A | — |
| 2000 | Volvo | C70 | — | — | N/A | — |
| 2000 | Volvo | S70 | — | — | N/A | — |
| 2000 | Volvo | V70 | — | — | N/A | — |
| 1999 | Volvo | C70 | — | — | N/A | — |
| 1999 | Volvo | S70 | — | — | N/A | — |
| 1999 | Volvo | V70 | — | — | N/A | — |
| 1998 | Volvo | C70 | — | — | N/A | — |
| 1998 | Volvo | V70 | — | — | N/A | — |
