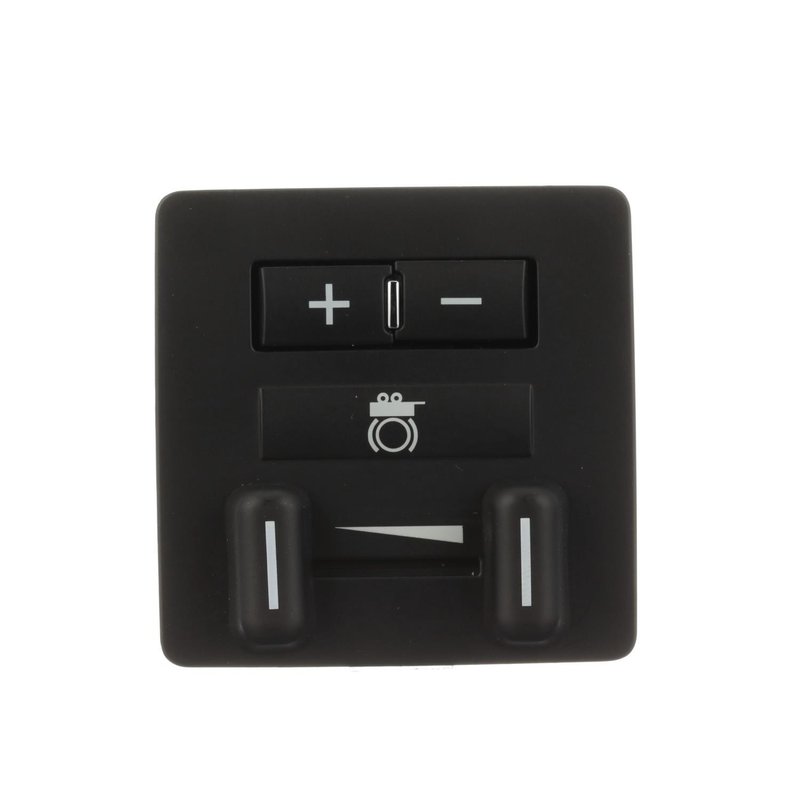

Standard Ignition TBM002 Trailer Brake Control Module

Reliable Trailer Brake Control Module for GM Trucks and SUVs

The Standard Ignition TBM002 trailer brake control module is designed for direct, snap-fit installation on the dashboard of select Cadillac, Chevrolet, and GMC vehicles. Engineered to provide precise trailer brake control, this module ensures safe and consistent braking performance for your towing needs.

• Direct, snap fit attachment method for secure dashboard mounting
• Single female square plug-in connector for easy integration
• Eight male pin terminals for reliable electrical connections
• Compatible with multiple GM models including Silverado, Sierra, Tahoe, Yukon, Escalade, Avalanche, and Suburban

Product Features and Technical Details

The TBM002 trailer brake control module features a female connector with a square shape and plug-in type, designed to interface seamlessly with your vehicle's wiring harness. It includes one connector and eight male pin terminals, ensuring a stable and durable electrical connection. The module mounts directly on the dashboard using a snap-fit method, allowing for straightforward installation without additional hardware. This design supports consistent trailer brake control, enhancing towing safety and vehicle control.

Compatible Vehicles and Applications

This trailer brake control module is compatible with a range of GM trucks and SUVs, including:

• Cadillac Escalade and Avalanche
• Chevrolet Silverado 1500, 2500, 2500 HD, 3500, and 3500 HD
• Chevrolet Suburban 1500 and 2500
• Chevrolet Tahoe
• GMC Sierra 1500, 2500 HD, 3500 HD
• GMC Yukon, Yukon XL 1500, and Yukon XL 2500

Common Issues Addressed by the TBM002 Module

• Intermittent or non-responsive trailer brake activation
• Dashboard mounting instability of existing brake control modules
• Connector compatibility problems with factory wiring harnesses
• Electrical connection failures due to worn or damaged terminals
• Inconsistent trailer braking performance during towing

Installation Notes and Tips

Installation of the Standard Ignition TBM002 module requires access to the dashboard area where the original module is located. The direct, snap-fit attachment method allows for a secure fit without additional mounting hardware. Ensure the female square plug-in connector aligns properly with the vehicle’s wiring harness connector. Verify all eight male pin terminals are fully seated to maintain reliable electrical contact. It is recommended to consult the vehicle’s service manual for specific removal and installation procedures related to the trailer brake control module.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring dependable performance and durability. The TBM002 trailer brake control module undergoes rigorous quality control testing to maintain consistent functionality. Please refer to Standard Ignition’s warranty policy for detailed coverage information.
