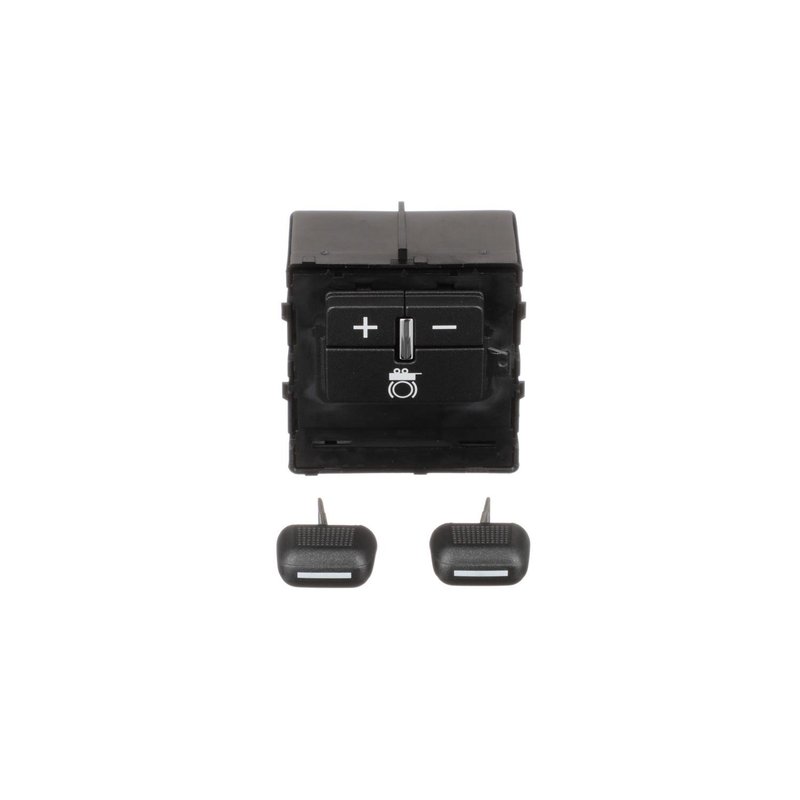

Standard Ignition TBM003 Trailer Brake Control Module

Reliable Trailer Brake Control Module for Chevrolet and GMC Vehicles

The Standard Ignition TBM003 trailer brake control module is designed to provide precise braking control for trailers when connected to compatible Chevrolet and GMC trucks. Engineered for direct dashboard mounting, this module ensures seamless integration and reliable performance for your towing needs.

• Direct, snap fit attachment method for secure installation
• Female connector with a single square-shaped plug-in interface
• Equipped with 8 male pin terminals for stable electrical connections
• Dashboard mounting location for easy access and monitoring
• Compatible with multiple Chevrolet and GMC models including Silverado and Sierra series

Technical Details and Compatibility

The TBM003 trailer brake control module features a direct, snap fit attachment method that allows for straightforward installation without additional mounting hardware. It includes one female connector with a square plug-in shape, designed to mate with the vehicle’s wiring harness efficiently. The module’s 8 male pin terminals provide a reliable electrical interface, ensuring consistent trailer brake control signals. This unit is intended for dashboard mounting, placing the control module within easy reach of the driver for convenient operation.

This module is compatible with a range of Chevrolet and GMC trucks, including the Chevrolet Colorado, Silverado 1500, 2500, 3500, Suburban 3500 HD, Tahoe, and GMC Canyon, Sierra 1500, 1500 Limited, 2500 HD, 3500 HD, Yukon, and Yukon XL models. The Standard Ignition TBM003 is engineered to meet the specific electrical and mechanical requirements of these vehicles, ensuring proper trailer brake functionality.

Common Applications and Problem Resolution

• Restores trailer brake control functionality on Chevrolet and GMC trucks
• Resolves intermittent or non-responsive trailer brake signals
• Eliminates dashboard warning lights related to trailer brake system faults
• Improves trailer braking performance and safety during towing
• Replaces faulty or damaged trailer brake control modules

Installation Notes and Tips

Installation of the TBM003 trailer brake control module requires access to the dashboard mounting location and the vehicle’s trailer brake wiring harness. The direct, snap fit attachment method simplifies securing the module in place. Ensure the female connector is properly aligned with the vehicle’s plug-in connector to avoid damage to the pins. It is recommended to verify all electrical connections and test the trailer brake system after installation to confirm proper operation.

Quality Assurance and Warranty

Standard Ignition manufactures the TBM003 trailer brake control module to meet OEM specifications for fit, form, and function. While specific warranty details are not provided here, Standard Ignition products typically come with a limited warranty covering defects in materials and workmanship. For warranty information, refer to the product documentation or contact the manufacturer directly.
