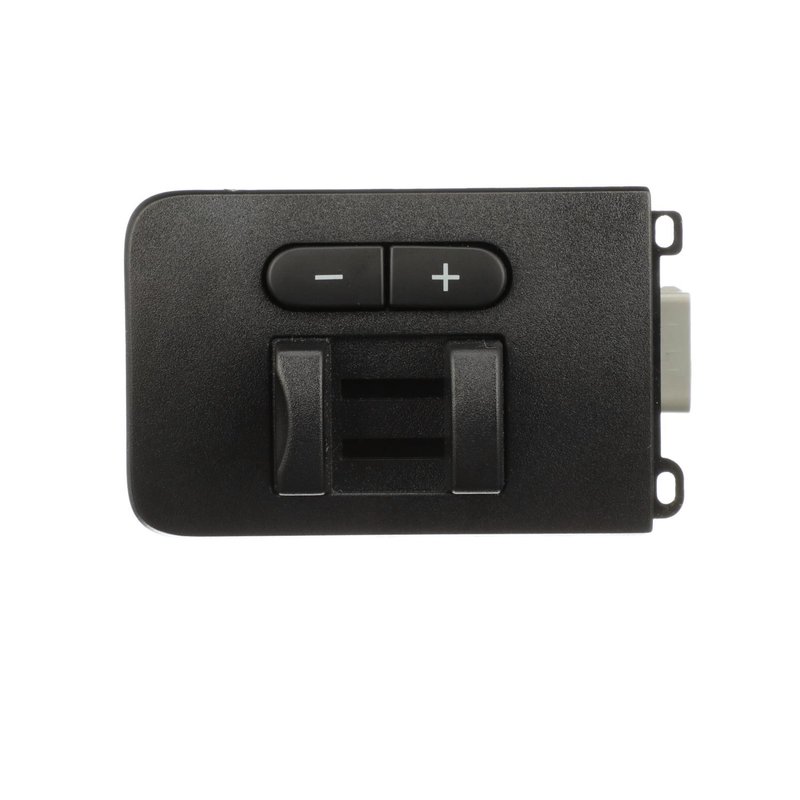

Standard Ignition TBM004 Trailer Brake Control Module
| Brand | Standard Ignition TBM004 |
|---|---|
| Attachment Method | Direct, snap fit |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Connector Type | Plug in |
| Flash Programming Required | No |
| Mounting Location | Dashboard |
| Terminal Gender | Male |
| Terminal Quantity | 14 |
| Terminal Type | Blade |
| Fits | Ford · 12 vehicles |
Direct, snap-fit. Plug-in trailer brake control module for straightforward installation.
Single plug connection. Rectangular female connector with 14 blade terminals.
Dashboard mount. Compact control module designed for clean in-cab placement.
Cross-references BC3Z2C006A, MTB303 and TBC004 for the same application. See all 3.
Trailer Brake Control Module for Ford Super Duty
Standard Ignition TBM004 is a trailer brake control module built for direct, snap-fit replacement in select Ford Super Duty trucks. It mounts in the dashboard and uses a single rectangular plug-in connector for a clean OE-style connection.
Compatible with 2011-2016 Ford F-250 Super Duty and 2011-2016 Ford F-350 Super Duty, this trailer brake control module supports a straightforward replacement path for trucks with factory-style trailer brake control systems. The TBM004 is a practical choice when you need a dashboard-mounted module with the correct connector and terminal layout.
- Direct, snap-fit attachment method for OE-style installation
- Dashboard mounting location
- Female rectangular plug-in connector
- 1 connector with 14 male blade terminals
- No flash programming required
- Standard Ignition TBM004 replacement part
Detailed Product Overview
The TBM004 trailer brake control module is designed around the original equipment connection style used in select Ford Super Duty applications. Its direct-fit design, female connector, and blade-terminal interface help maintain the factory electrical layout while replacing a worn or failed module. If you are searching for a trailer brake control module for Ford F-250 Super Duty or Ford F-350 Super Duty trucks from 2011-2016, TBM004 matches the listed fitment and connector configuration.
This part cross-references Ford OE-style applications such as BC3Z2C006A and MTB303 for the same application.
What It Helps Address
- Trailer brake controller warning or fault conditions
- Loss of trailer brake output
- Intermittent trailer brake control response
- Damaged or worn dashboard-mounted control module
- Connector or terminal issues at the factory module location
Installation Notes and Tips
Install the module at the dashboard location using the direct, snap-fit attachment method. Verify the connector is fully seated before testing trailer brake operation. Because flash programming is not required, replacement can be handled without a programming step, but the vehicle should still be checked for proper trailer brake function after installation.
Quality Assurance
Standard Ignition supplies replacement electrical components for OE-style service applications. TBM004 is built to match the listed connector type, terminal count, and fitment for 2011-2016 Ford F-250 Super Duty and 2011-2016 Ford F-350 Super Duty trucks.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2016 | Ford | F-250 Super Duty | N/A | — |
| 2016 | Ford | F-350 Super Duty | N/A | — |
| 2015 | Ford | F-250 Super Duty | N/A | — |
| 2015 | Ford | F-350 Super Duty | N/A | — |
| 2014 | Ford | F-250 Super Duty | N/A | — |
| 2014 | Ford | F-350 Super Duty | N/A | — |
| 2013 | Ford | F-250 Super Duty | N/A | — |
| 2013 | Ford | F-350 Super Duty | N/A | — |
| 2012 | Ford | F-250 Super Duty | N/A | — |
| 2012 | Ford | F-350 Super Duty | N/A | — |
| 2011 | Ford | F-250 Super Duty | N/A | — |
| 2011 | Ford | F-350 Super Duty | N/A | — |
