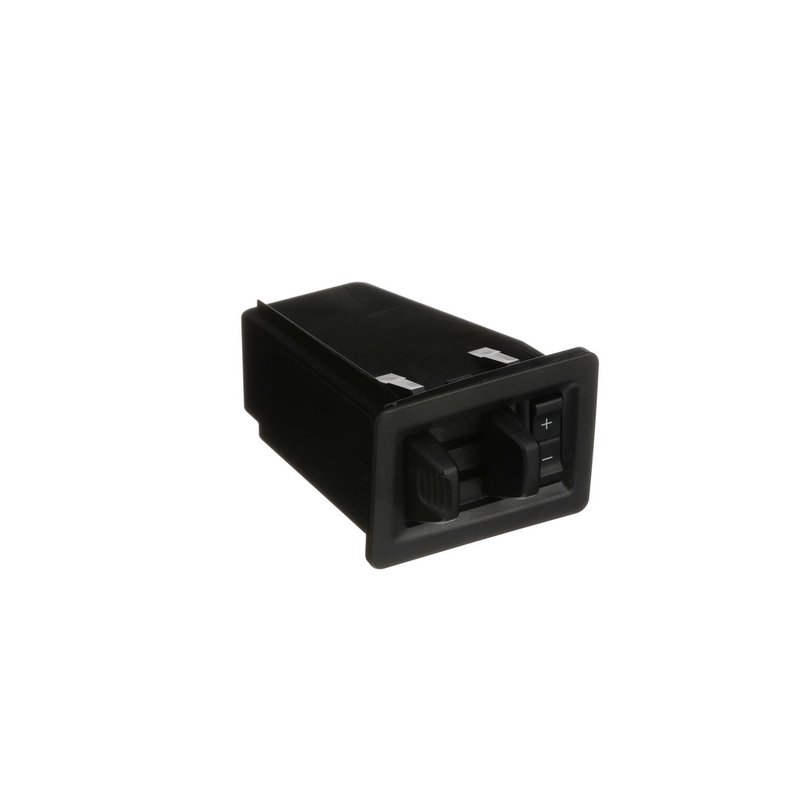

Standard Ignition TBM005 Trailer Brake Control Module
Trailer Brake Control Module for Ford Super Duty
Standard Ignition TBM005 is a trailer brake control module for select Ford Super Duty trucks. It mounts in the dashboard and uses a direct, snap-fit design with a single rectangular plug-in connector for a clean OE-style replacement.
Key Features
- Direct, snap-fit attachment method for straightforward replacement
- Dashboard mounting location
- 1 female rectangular plug-in connector
- 14 male blade terminals
- No flash programming required
- Standard Ignition TBM005 replacement part
Product Details
Built for brake control system service, this trailer brake control module is specified for 2017-2021 Ford F-250 Super Duty and 2017-2021 Ford F-350 Super Duty applications. The TBM005 uses a female connector with 14 male blade terminals, helping maintain the original electrical interface during replacement. For buyers searching for a 2017-2021 Ford F-250 Super Duty trailer brake control module or a 2017-2021 Ford F-350 Super Duty brake control module, this part provides a direct-fit service option without flash programming.
This part cross-references Ford OE HC3Z2C006AA for the same application.
What It Helps Address
- Trailer brake controller warning or fault conditions
- Loss of trailer brake output
- Intermittent brake control communication issues
- Damaged or worn dashboard-mounted control module
- Electrical connector or terminal interface problems
Installation Notes
Install TBM005 in the dashboard location using the direct, snap-fit attachment method. Verify connector orientation, terminal engagement, and vehicle application before installation. Because flash programming is not required, replacement can be completed without module coding steps in supported applications.
Quality Assurance
Standard Ignition supplies OE-style electrical replacement components for service applications. TBM005 is built to match the specified connector, terminal, and mounting configuration for the listed Ford Super Duty trucks.
| Brand | Standard Ignition |
| Part Number | TBM005 |
| Attachment Method | Direct, snap fit |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Connector Type | Plug in |
| Flash Programming Required | No |
| Mounting Location | Dashboard |
| Terminal Gender | Male |
| Terminal Quantity | 14 |
| Terminal Type | Blade |
This part fits 10 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2021 | Ford | F-250 Super Duty | N/A | |
| 2021 | Ford | F-350 Super Duty | N/A | |
| 2020 | Ford | F-250 Super Duty | N/A | |
| 2020 | Ford | F-350 Super Duty | N/A | |
| 2019 | Ford | F-250 Super Duty | N/A | |
| 2019 | Ford | F-350 Super Duty | N/A | |
| 2018 | Ford | F-250 Super Duty | N/A | |
| 2018 | Ford | F-350 Super Duty | N/A | |
| 2017 | Ford | F-250 Super Duty | N/A | |
| 2017 | Ford | F-350 Super Duty | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
