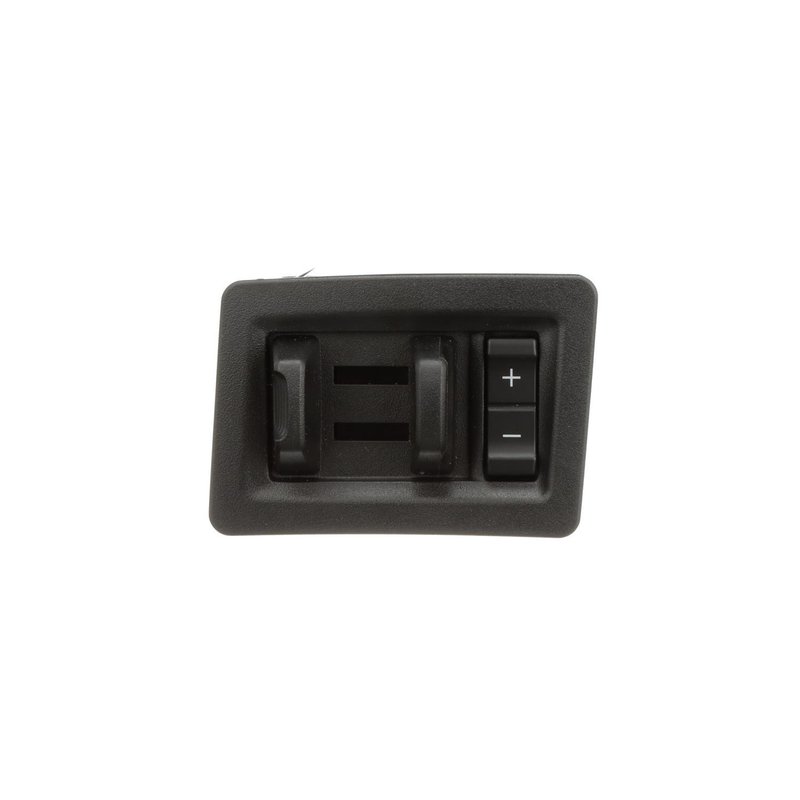

Standard Ignition TBM006 Trailer Brake Control Module

Reliable Trailer Brake Control Module for Ford Vehicles

The Standard Ignition TBM006 Trailer Brake Control Module is designed for direct replacement in select Ford models, including the Expedition and F-150. Engineered for straightforward installation and dependable performance, this module ensures your trailer braking system operates smoothly and safely.

• Direct, snap fit attachment method for secure mounting
• Female rectangular plug-in connector with one connector for easy integration
• 14 male blade terminals for reliable electrical connections
• Dashboard mounting location for convenient access and monitoring
• No flash programming required, simplifying installation

Product Details and Specifications

The TBM006 trailer brake control module from Standard Ignition features a direct, snap fit attachment method that allows for a secure and precise fit within the dashboard area of your Ford Expedition or F-150. It includes a single female rectangular plug-in connector, designed to interface seamlessly with your vehicle's wiring harness. The module is equipped with 14 male blade terminals, ensuring stable and consistent electrical contact. This part requires no flash programming, which reduces installation time and complexity. Its design supports reliable trailer brake control, contributing to safer towing experiences.

Compatible Vehicles and Applications

This trailer brake control module is compatible with the following Ford models:

• Ford Expedition
• Ford F-150

It is intended for use in trailer brake control systems, helping to regulate braking force applied to trailers and improve overall towing safety.

Common Issues Addressed by TBM006

• Intermittent or non-responsive trailer brakes
• Faulty brake control signals causing uneven braking
• Dashboard brake control module failures affecting trailer braking
• Electrical connection problems due to worn or damaged terminals
• Replacement of original equipment module without need for programming

Installation Notes and Tips

The TBM006 module mounts directly to the dashboard using a snap fit method, ensuring a secure and stable installation. The female rectangular plug-in connector simplifies wiring connections, and no flash programming is required, which allows for a straightforward replacement process. Ensure the vehicle’s battery is disconnected before installation to prevent electrical shorts. Verify all terminal connections are clean and secure to maintain optimal performance.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing reliable performance and durability. The TBM006 trailer brake control module undergoes rigorous quality checks to ensure proper function. Please refer to Standard Ignition’s warranty policy for specific coverage details.
