Standard Ignition TC436 Trailer Connector Kit

Reliable Trailer Connector Kit for Ford and Mazda Trucks

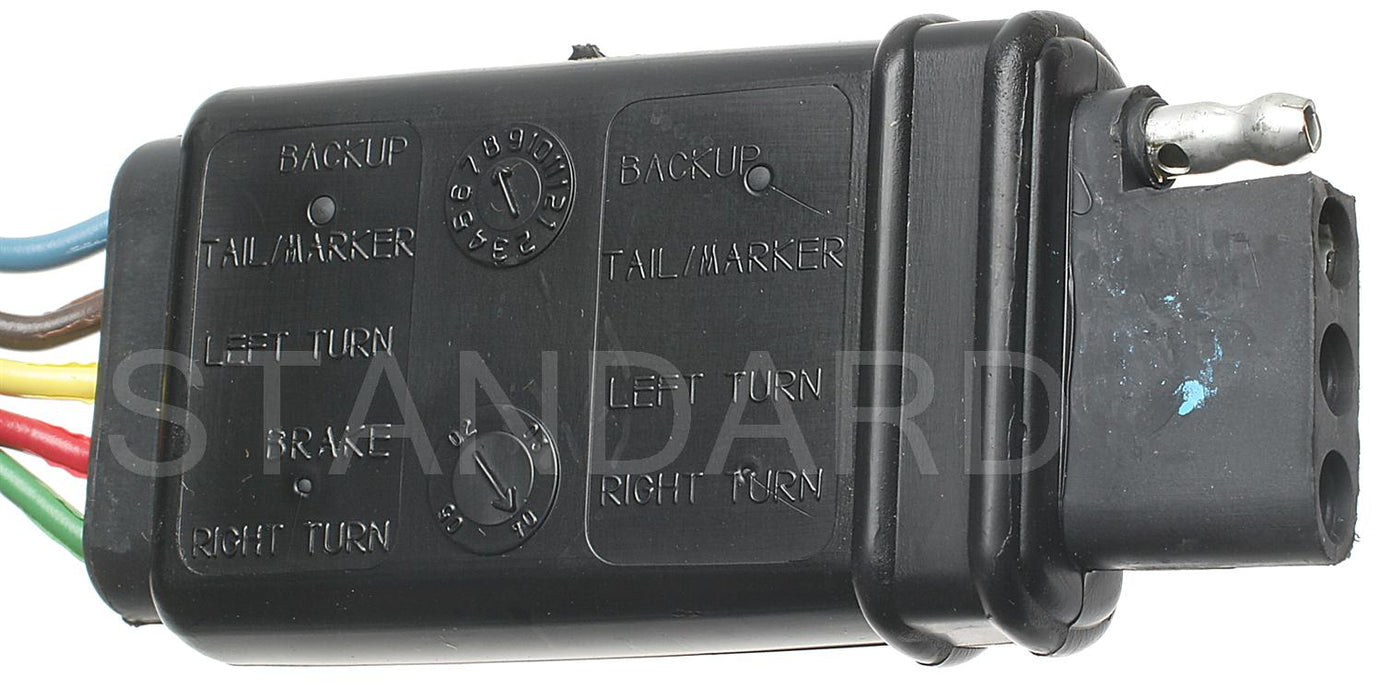

The Standard Ignition TC436 trailer connector kit provides a durable and precise electrical connection solution for Ford and Mazda trucks. Designed specifically for models like the Ford Ranger and Mazda B-series trucks, this kit ensures secure trailer wiring and reliable performance.

• Includes three rectangular connectors with both male and female genders
• Equipped with a solenoid for enhanced electrical control
• Contains a total of 16 pin terminals (6 male, 6 female, and 4 additional terminals)
• Five wires included for comprehensive trailer wiring needs
• Connector and terminal types designed for secure, long-lasting connections

Detailed Product Features and Specifications

The Standard Ignition TC436 trailer connector kit features three rectangular connectors, each designed with both male and female genders to accommodate various trailer wiring configurations. The kit includes a solenoid, which helps manage electrical flow and improves the reliability of trailer lighting and braking systems. With a total of 16 pin terminals—6 male, 6 female, and 4 additional terminals—this kit supports multiple wiring setups. The included five wires allow for flexible installation and compatibility with the electrical systems of Ford B2300, B2500, B3000, B4000, and Ranger models, as well as Mazda B-series trucks.

Compatible Vehicles and Applications

This trailer connector kit is compatible with a range of Ford and Mazda trucks, including:

• Ford B2300, B2500, B3000, B4000
• Ford Ranger
• Mazda B2300, B2500, B3000, B4000

It is designed to provide a reliable electrical connection for trailer lighting, braking, and other trailer functions, making it suitable for towing applications requiring secure and consistent electrical performance.

Common Issues Addressed by This Trailer Connector Kit

• Faulty or corroded trailer wiring connections causing intermittent lighting
• Incompatible or damaged connectors leading to trailer electrical failures
• Wiring harness wear and tear from frequent towing use
• Electrical shorts or open circuits in trailer wiring systems
• Need for a complete connector kit to replace multiple damaged components

Installation Notes and Tips

• Verify vehicle compatibility with Ford and Mazda B-series trucks and Ranger models before installation
• Ensure all connectors and terminals are securely crimped and properly seated
• Use dielectric grease on terminals to prevent corrosion and improve conductivity
• Follow vehicle wiring diagrams for correct wire routing and connections
• Test trailer lighting and braking functions after installation to confirm proper operation

Quality Assurance and Warranty Information

Standard Ignition products are manufactured to meet or exceed OEM specifications for fit, form, and function. The TC436 trailer connector kit undergoes rigorous quality control to ensure reliable performance in demanding towing applications. Warranty coverage details should be confirmed with the product documentation or manufacturer.
